600kg 8PCS Suction Cups Sheet Metal Panel Vacuum Lifter Suction Cup Lifter with CE

Product Description

Specification: (support customerized size)
Product Model : XDL-100B3M
Jib Column Size : 3300x219x6mm
Rokcer Beam Size: 4000x22mm
Suction Cup Equipment Size: 2000x1000mm
Cylinder Size: 1000x125mm
Color : Red/Orange/Blue/White etc
Working Area: 0~3200mm
Stroke Lifter: 1100mm
Rocker Arm Rotation: 0~270°
Max Steel Plate Size: 1500mm*3000mm/4000x2000mm(customerized size)
Application: Steel plate/aluminum plate/plastic plate/glass plate/stone plate/laminated particle board
Moving and Lifting

Pneumatic Tpye Vacuum Lifter
Model	Carne	Rocker Arm	Strok	Capacity	Max Workpieces	Air Pressure	Suction Pad (pcs/dia)
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L100-B4M	3300mm	4000mm	100~1100mm	100kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L300-B4M	3300mm	4000mm	100~1100mm	300kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000mm*1500mm	0.6~0.8Mpa	8pcs/200mm

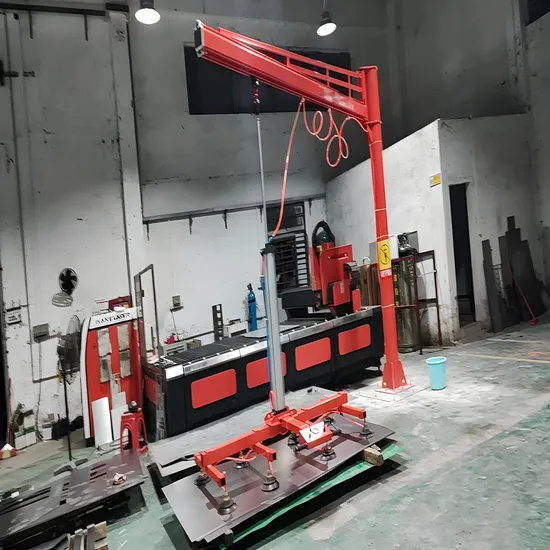

The Vacuum lifter plate suction crane is specially used for various plate processing and is suitable for loading and unloading of various processing machines. It has long-term cooperation with international and domestic laser cutting machine manufacturers.
1, Laser cutting machine, plasma cutting machine, shearing machine loading and unloading
2, Suitable for aluminum plate and stainless steel plate
3, Imported vacuum pumps and valves
4, Maximum load 2000KG
5, Accumulator and pressure detection ensure safety
6, Various structures and suction cup supply configurations
7, Applicable to ceilings below 400 degrees
8, The company passed IOS9001 and the products passed CE certification

*The loading efficiency is high. The pneumatic rocker arm loader is equivalent to the work of 6-8 workers.
*Smooth operation: metal plates, stone slabs, wooden boards, etc., easy to load
*Strong load-bearing capacity, small body plate, large load-bearing capacity, carbon steel structure, strong and durable
*Freely adjustable suction cup combination position can be adjusted to meet different sizes of work

1. Manual valve: The original imported SNS hand valve is used to control the elevator, which is convenient and accurate in controlling the position.
2. Cylinder: Purchase imported Airtac professionally designed cylinder to prevent operating shock and freely control the suction cup switch.
3. Load-bearing pulley: This product is our company's race pulley, which is safe for lifting operation and can safely load 100/300/500kg.
4. Vacuum generator: Use original SNS vacuum generator, safe and reliable
5. Regulating valve: Use original SNS pneumatic accessories regulating valve to safely and accurately adjust operating pressure.
6. Suction cup: special suction cup made of imported materials, including integral hardware tools; professionally customized by our company, safe and reliable.

How to choose a rocker arm lifter?
1,What are you going to lift, size and weight of the workpiece?

2, What are you going to do with your workpiece? To load and unload punching machines, bending machines or CNC laser cutting systems?
3,What's the minimum working space/radius, plant height of your workshop? What's the subgrade situation of your workshop?
4,Which model are you prefer to use, pneumatic or electric type?

The Handling and Installation of Pneumatic Rocker Arm Loading Machine:
2.1 Notice

When the pneumatic rocker arm loading machine reaches the installation position, it must be operated in strict accordance with the measures
described in this manual. Please read and understand the following instructions in detail:
1, when using a crane or forklift to carry the pneumatic rocker arm booster, can not manually support the booster body!
2, handling, the operator can not climb or stand under the booster machine!
3, when installing the air source, it must be connected after cutting off gas, and set an eye-catching sign!
4, before starting the booster machine, it is necessary to confirm that the system installation is correct, to ensure safety!
5,When the pressure of the vacuum pressure gauge is lower than 0.04MPa, it is forbidden to lift the plate!
6, the customer unauthorized product transformation, not within the scope of the company's warranty, the company will not be responsible
1), it is strictly prohibited to exceed the maximum load, overload will cause equipment damage and other serious consequences!
2), the operation of the power machine must be entrusted to qualified personnel!
3), do not enter the range of activities of the booster, so as not to cause personal injury!
4). Do not touch moving mechanical parts to prevent personal injury!
2.2 Installation Environment of Pneumatic Rocker Arm Loading Machine:

1. Ensure that the levelness of the installation ground is within ±2°.
2. Ensure that the foundation is prefabricated according to the foundation drawing provided by our company.
3, ensure that the anchor screw position is correct.
4, The air supply pressure is within the range of 0.6-0.8MPa. (±10% or less)
5, ensure that the installation position has enough rocker arm movement space, pay attention to the rocker arm activity area set up safety isolation belt.
2.3 Basic Production of Pneumatic Rocker Arm Loading Machine:

The pneumatic rocker boom loading machine requires a precast concrete foundation,
1,Use one end with M20X80 thread section, 6 high strength bolts with 580mm length, and 4 bolts with 580mm length to weld into a rectangular box (as shown)
2, press the figure to make 2mm thick preset plate, external size: 700*700*2.
3, For prefabricated foundation, the 2mm thick prefabricated backing plate should be flush with the ground, and the height of the thread segment should be 60mm above the ground. The center of the anchor bolt overlapped with the center of the ∅21 positioning hole on the preset spacer.
