HM50C Production Description
HM50C horizontal machining center is suitable for complex processing of box parts. It can automatically exchange tools during the processing process. It can clamp four faces at a time for milling, drilling, reaming, boring, reaming, tapping, end face processing, boring step holes and other processes. Modern machine tools and control concepts, compact structural design, ensure high efficiency and high precision processing requirements for single or small and medium batch products.
Whole machine: The main structure of the machine tool is a cross slide structure with good rigidity. The beautiful shape fully reflects the engineering concept of man-machine integration. It is a high-end CNC machine tool with high performance, high efficiency and high speed. It is easy to use, operate and maintain.
Base: The advanced finite element analysis software is used to reasonably optimize the layout of the ribs to ensure its strength and rigidity, so that the performance indicators of each component are optimized and the rigidity is durable.
Column: It adopts a double-column closed frame structure, and the cavity is equipped with high longitudinal and transverse annular ribs, so that the column has high torsional and bending rigidity.
Spindle box: The AC servo spindle motor can achieve stepless speed regulation of the spindle.

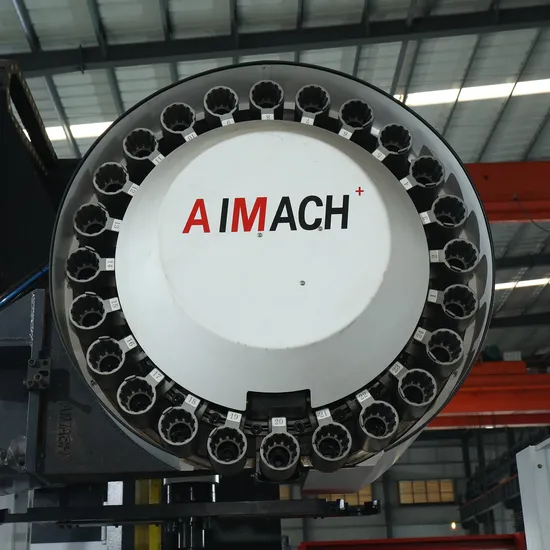

Tool magazine: The tool magazine manipulator adopts a complete set of products from professional supporting manufacturers, with reliable quality and stable performance, which further improves the working reliability of the whole machine.
Drive: The advanced large inertia feed servo motor is selected to realize the three-axis feed drive, and the high-rigidity ball screw pair is adopted to fundamentally solve the processing error caused by thermal deformation and transmission clearance of the workpiece during the processing, so as to achieve the purpose of time saving and high precision.
Workbench: The single-station indexing rotary table is driven by a large inertia feed servo motor, and the position accuracy is positioned by a high-precision rat gear disk, which is high-precision, accurate and reliable.
System configuration: Equipped with a high-performance FANUC 0i-MF CNC system, it can guarantee the CNC processing functions and auxiliary functions required by users.
The quality of finished products of all machine tool parts and components is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 "General Rules for Machine Tool Inspection" and JB/T8772-1998 "Inspection Conditions for Precision Machining Centers".
Main Paremeters

Name		Unit	Parameter	Note
Travel	Three axis travel	mm	1500/850/750
	Distance from spindle end face to worktable Center(Z Direction)	mm	150~850
	Distance from spindle center to worktable (Y direction)	mm	100~800
Worktable	Worktable Size(L*W)	mm	500×500
	Maximum load-bearing capacity	kg	700
	Minimum indexing angle	mm	1°×360
	Maximum rotation diameter of workpiece	mm	φ700×700
	T-shaped slot (quantity × width× spacing)	mm	5×18×125
Spindle	Max spindle speed	rpm	6000
	Spindle diameter Spindle bore taper		φ150/BT50
	Motor spec&power	kW	βiIp22,11/15
	Spindle Torque	N.m	105/191
Feed	Three axis fast moving speed (X/Y/Z)	m/min	24/24/24
	(X/Y/Z) Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24
	Max tool diameter/length/weight		φ110mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	φ110/φ200
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.012
	(X/Y/Z) repositioning accuracy	mm	0.008
	Rotary table positioning accuracy	''	±5
	Repeat positioning accuracy of rotary table	''	±1.5
Others	Linear guide rail specifications (X/Y/Z)	mm	45/45/55 Roller
	Ball screw specifications (X/Y/Z)	mm	φ40
	Servo motor specifications (X/Y/Z)	N.m	27
	Air source/pressure		280L/min 6~8bar
	Total electrical capacity	KVA	35
	(X×Y×Z) Machine size (X×Y×Z)	mm	3510×4320×2880
	estimated weight	kg	8100
