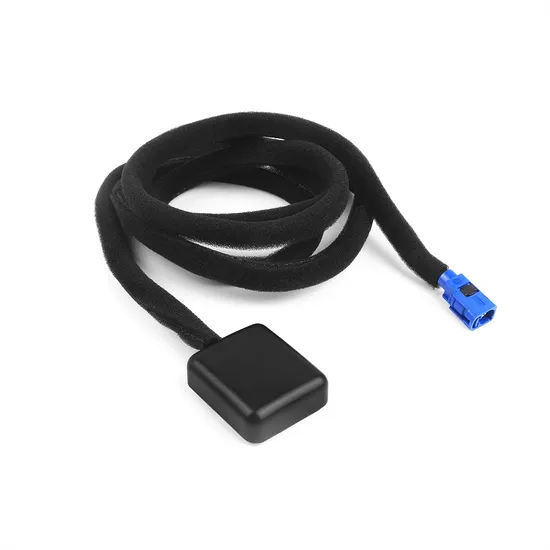

U8 GPS Antenna with Moudle 55*46 GPS/Gnss Mouse Receiver

Product Description

U8 G Mouse Receiver GNSS Mouse Receiver
Delin Comm RM5546-UG-U3 module series is a family of stand alone GPS&GLONASS receivers featuring the high performance u8 positioningengine. These flexible and cost effective receivers offer numerous connectivity options in aminiature 45x38x13.5mm package.Their compact architecture and power and memory options make RM5546-UG-U3 modules ideal for battery operated mobile devices with very strict cost and space constraints. Features Build on high performance, low-power u8 chip set Ultra high Track sensitivity: -165dBm Extremely fast TTFF at low signal level Built in high gain LNA Low power consumption: Max 35mA@5.0V NMEA-0183 compliant protocol or custom protocol Operating voltage: 5.0V Operating temperature range: -40 to 85ºC Patch Antenna Size: 25x25x4mm Small form factor: 55x46x14.5mm Communication type: USB2.0 Wire interface type: USB (type A) male connector / L=300cm RoHS compliant (Lead-free)
Applications LBS (Location Based Service) PND (Portable Navigation Device) Vehicle Navigation System Mobile Phone
Key Features

Parameter	Specification
Power Supply	Supply voltage: 5.0V
Power Consumption	Acquisition: 35mA @VCC=VBAT=5.0V
	Tracking: 30mA @VCC=VBAT=5.0V
	Backup: 15uA @VBAT=5.0V
Receiver Type	Code 56 search channels ,22 synchronous tracking channels
	GPS&GLONASS&QZSS L1 1575.42MHz C/A ,GLONASS L1OF 1602MHz,
	SBAS: WAAS, EGNOS, MSAS, GAGA
Sensitivity	Tracking: -165dBm
	Re-acquisition: -156dBm
	Acquisition: -146dBm
TTFF(Autonomous)	Cold start: 35s type @-130dBm
	Warm start: 30s type @-130dBm
	Hot start : 1s type @-130dBm
Horizontal Position Accuracy (Autonomous)	<2.5m CEP @-130 dBm
Max Update Rate	Up to 10Hz, 1Hz by fault
Accuracy of 1PPS Signal	not enabled
Acceleration Accuracy	Without aid: 0.1m/s²
Dynamic Performance	Maximum altitude: 18,000m
	Maximum velocity: 515m/s
	Acceleration: 4G
UART Port	UART Port: USB_DP and USB_DM
	Supports baud rate from 4800bps to 115200bps, 4800bps by default
	USB port for NMEA and UBX output, binary or proper Agreement input
Temperature Range	Normal operation: -40°C ~ +85°C
	Storage temperature: -45°C ~ +125°C
Physical Characteristics	Size: 55±0.20 × 46±0.20 ×14.5±0.50mm
	Connecting line specifications:USB (type A) male connector, L=150cm
	Weight: Approx.:150g

PAQ
Q: Can I get one sample?
A: Yes, sample is available.
Q: What's the delivery time?
A: 7-15 days for the sample, 30 days for quantity below 5K.
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
