CE Standard Waste Scrap Pet Soda Bottle Grinding Recycling Washing Machine

Product Description

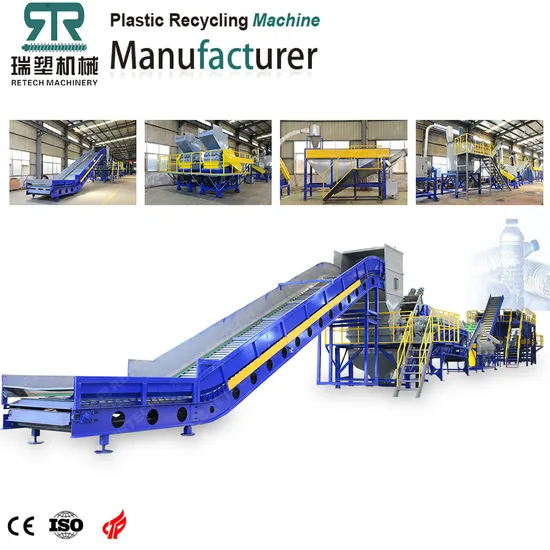

Waste Scrap Pet Soda Bottle Grinding Recycling Washing Machine

RETECH MACHINERY supplied high quality Plastic bottle recycling machine for our customer from 500-2000kg/hr. China PET bottle recycling washing machine line manufacturers-RETECH, We Provide You High Quality Plastic Recycling Machine with Competitive Price.
Product Overview
Application Of Waste Scrap Pet Soda Bottle Grinding Recycling Washing Machine:
Retech Machinery, thanks to its worldwide experience in the field of PET bottle washing & recycling, can provide its customers with proper technical solutions and state-of-the art recycling technologies, delivering a response tailored to the frequently changing needs of its customers and of the market.
This video shows us the process of 4500kg/h PET Bottle Washing Line. Retech Machinery is specialized in providing you with PET bottle washing recycling line which is specifically used for recycling,crushing and cleaning waste PET bottles and other PET plastic bottles.
Application of PET recycling machine:
PET recycling machine is mainly used to recycling the waste PET bottles,water bottles,cola bottles,PET sheet and pet packing containers. The PET recycle line can easily remove the lables,caps,rings,glue,dirties,and other impurities,finally you will get ideal PET flakes. All your requirements of the PET bottle washing machine will be customized. Our PET washing line is high automatic operating and save labor cost and low after maintenance. With advanced international industry concepts and technologies to meet waste plastic recycling at home or abroad.
The whole line is fully automatic and it has characteristics of high efficiency, low noise and easy operation. The humidity of final output could be within 2%. It adopts hot water washing to get good quality. Various output capacities can be chosen:500kg/h,1000kg/h, 1500kg/h, 2000kg/h, 3000kg/h,5000kg/h.
The waste dirty material go through de-labelling, crushing,washing,drying, and collecting process will turn to be clean flakes for reuse.
This PET bottle washing machine can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Material Processed:
Our Machine
1.PET bottle washing machine from Retech machinery is applied in PET waste bottle or sheet recycling field.
2.Through crushing, washing and drying process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3.The clean PET flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets,etc. The top class flakes can be used to blow bottles again.
4. Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5. Recycling machine output we can supply is from 300kg/h to 3500kg/h.
6.We can also produce the clean PET bottle flakes granulator, to make the clean flakes into pellets (granules).
Product Parameters

NO.	Production capacity(kg/hr)	Total installation Power(KW)	Water consumption(M3/H)	Line size(m)	Workers
1	300-500kg/hr	70-125	3-5	45*5*5	3-6
2	1000-1500kg/hr	359	5-8	75*6*5	6-10
3	2000kg/hr	445	8-10	106*6*5.8	10-12
4	3000kg/hr	638	10-12	132*7*6.5	16-20

Detailed Photos

1. Belt conveyor
Function: Conveying the PET bottle to the next step, such as bale opener, crusher etc.
2. Trommel
Function: Raw waste PET bottle has a lot of sands, small stones, metals, whcih can screen some by this machine, to make better washing effect.
3. Mannual Separating table
Function: Machanical separating labels rate is 95-98%, it is not 100%, so we need people choose out the bottle with label and metal bottle by hands. Which will incrase the finals PET bottle's quality.
4. Crusher
Function: Crushing the PET bottle into small pieces.The screen under crusher could be customized, usully it si 12mm.

5. Floating washer
Function: PET flakes will drop into the cold water to wash fully. The rotor on the floating tank can push the PET flakes moving on to arrived next machine.
6. Hot washer
Funtion: Hot washer has two types heating ways: by electric or steam. You can choose freely. Hot water can remove the oil and stick impuroties from the bottle's surface.
7. Dewatering Machine
Function: Removing the water from the PET bottle flakes to dry the flakes. The final moisture of flakes after Plastic PET bottle washing recycling line is less than 1%.
Our Advantages
1. Recycled material: Moisture content≤1%, impurities≤100ppm,PVC label content≤100ppm.
2. Production Capacity: 300-3500Kg/h
3. Plan design based on the dirty flakes, and make sure of the quality of the final products.
4. Simple design, user-friendly operation.
5. Lower investment cost for a high quality and durable machine.
6. Low energy consumption, High output capacity.
7. Parts which contact material use SUS304 stainless steel, thickness more than 3mm, ensure long service lift time and no second pollution to flakes.
8. World famous brand components applied on the production line- NSK bearing, Siemens contactor, Omron temperature, FUJI inverter, Siemens PLC control etc.
9. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
Company Profile

Packaging & Shipping

Our Service
THE AFTER-SALE SERVICE OF RETECH MACHINE!
1. After finish the production, we will report the production line, take photos, videos and send them to customers via mail or instant tools.
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
