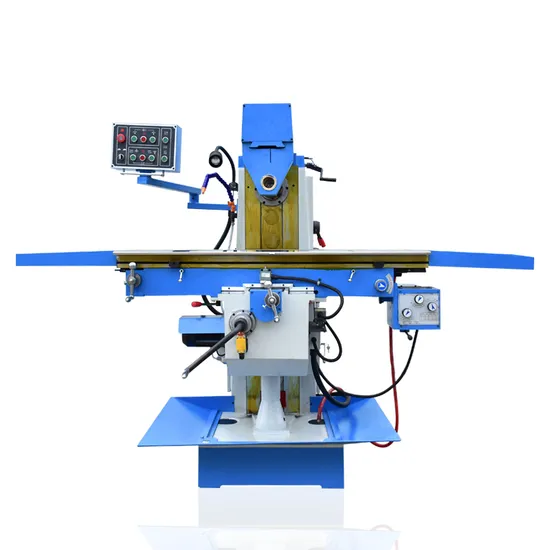

X6036 Horizontal Medium Duty Metal Milling Machine for Sale

Product Description

X6036 Horizontal Medium Duty Metal Milling Machine For Sale Product Description



X6036 horizontal knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as vertical milling head and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, dia and moulds.
The worktable apply to automatic and rapid feed.
Hardened and ground slide ways ensure high accuracy.
With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
With enough rigidity, machine can bear heavy duty processing.
Complete coolant and lubrication system.
DRO equipment is optional Product Parameters

SPECIFICATIONS OF HORIZONTAL KNEE TYPE MILLING MACHINE X6036
MODEL	UNIT	X6036
Worktable size	mm	360X1600
T slots (NxWxDD)	mm	3X18 X80
Max. load bearing of worktable	kg	550
Longitudinal travel (Manual/Power) X	mm	1020/1000
Cross travel (Manual/Power) Y	mm	300/280
Vertical travel (Manual/Power) Z	mm	410/400
Feed speed steps		18
Feed speed ranges: Longitudinal X	mm/min	15-750
Cross Y	mm/min	15-750
Vertical Z	mm/min	5.7-280
Rapid feed ranges: Longitudinal X	mm/min	2250
Cross Y	mm/min	2250
Vertical Z	mm/min	844
Distance from table center to vertical guide way		235~535
Arbor diameter	mm	22, 27, 32
Distance from spindle center to arm	mm	155
Distance from spindle center to worktable surface	mm	50
Spindle hole taper		7∶24 50#
Spindle speed steps		18
Spindle speed range	r/min	30-1500
Main motor power	KW	7.5
Feed motor power	KW	1.5
Machine dimension	mm	2327X2028X2096
Package dimension	mm	2220X2180X2200
Machine weight	Kg	3270

Standard Accessories Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ32, φ50
Foundation bolts and nuts
Optional Accessories 2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head

Details Display

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
