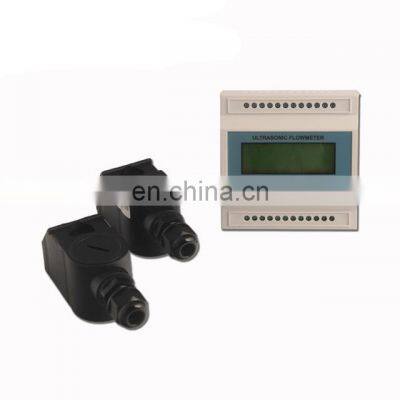

Taijia TDS-100M handheld ultrasonic flow meter clamp price ultrasonic digital water flow meter

Product Description

Product Description
Product DescriptionTDS-100M modular ultrasonic flow meter can work alone as a flow meter without a LCD and/or keypad module, and its small in size, and easy to install in field.Detailed ImagesTDS-100M modular ultrasonic flow meter is small in size and it can be used alone as a flow meter. Its easy to use, and its economic price attract lots of customer buying from us. Features of TDS-100M ultrasonic flowmeter1. Power supply: 8-36VDC2. Output: RS485 .4-20mA and OCT3. Input: 4-20mA and PT100 platinum resistance4. Display: 2×20 English letters LCD 5. Keypad: 4 key tactile-feedback membrane6. Protection: IP577. Installation: Operate with clamp on, insertion and flow-cell transducer8. Pipe diameters from 15mm to 6000mmSpecification of TDS-100M ultrasonic flowmeter1.Better than 1% accuracy, better than 0.2% repeatability.2.128 times of measurement and the revised software make the performance better and the indicated flow more stable.3.RS232 and RS485 serial port4.One or two analog inputs. 5.Optional 4-20mA analog output. 6.Two OCT output channels 7.Ability to measure sew water.8.4 kinds of different types of transducers can be used, addition with user-defined transducers.9.The internal universal serial bus enables several output modules to be connected to it. 10.All the parameters can be solidify into the flash memory.11.Several optional function module to be chosen to add to the main module. 12.3 different kinds of communication protocol supported by the same time, include MODBUS.13.Date totalizers that can record as much as 128 sets of data by day, 64 sets of data by month. All the data can be retrieved by use of the MODBUS registers.14.32 times of records of power-on and power-off data. Data can be read through MOBUS.15.Built-in data logger/printer, full programmable with what to be print ,the start time, interval, and duration.16.Programmable pulse width of OCT output.17.Parallel interface for display and keypad.18.Plug-on-and-off display and keypad module can be connected to the serial port of the meter.19.Almost the same menu arrangement make the users of previous version of flow meter very easy to operate.20A fluid velocity threshold enables the identification of the kinds of fluid.21.Digital inputs can be inputted by used of the analog inputs.22.A full programmable built-in batch controller which can be started by key-pressing, inputs to the analog inputs or through MODBUS protocol.Sensor selection4 kinds of different types of transducers can be used for TDS-100M ultrasonic flow module, addition with user-defined transducers.Packing & DeliveryPacking detail for TDS-100MPackaging Detail:CartonDelivery Detail:In 7 working days after payment receivedRelated ProductsTDS-100H Hand held ultrasonic flow meterTDS-100F1Wall mounted fixed ultrasonic flowmeterTEM82E intergrated DN80mm electromagnetic flow metermag meter
