horizontal packaging machine pillow pack bread biscuit packaging with gas nitrogen filling system

Product Description

Product Description

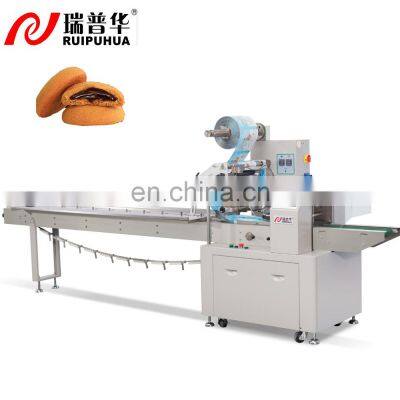

horizontal packaging machine pillow pack bread biscuit packaging with gas nitrogen filling system Horizontal Pillow Bag Automatic Flow Packing Machine With Remote Controlled Function Three Servo Packaging Machine is mainly used for various kinds of solid objects with regular shape,such as food(bread/cake/butter/cream/cheese/cookies), pharmaceuticals tools, daily necessities, hardware, or any other products loaded in box or tray. ModelZP-500Packaging speed(bag/minute)35-300bag/minPacking sizeL85-230mm W20-90mm H5-50mmMaximum width of film(mm)<280mmThickness of film(mm)0.03mm-0.05mmTotal power220V,50/60HZ,6.3KWOverall size(mm)(L)4000*(W)770*(H)1600mmWeight750kgPackage4.0CBM,2CASESOverall size (mm)OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL etc. Other Packing Machine Technical Parameter (1) Menu storage and memory functionThe controller can save a variety of parameter configurations, and the recipe can be used when the product or packaging film is replaced by calling out the formula on the touch screen. (2) Bag length unlimitedThe industry-leading electronic cam algorithm, the bag length range is from 60mm to unlimited length, the bag length is set and cut immediately in one step, saving time and film. (3) Nitrogen filling function (3) No product, no bag function/ Anti-cutting functionAdvanced electronic anti-cutting, electronic anti-empty bag algorithm. The empty material film stops, saving packaging materials. (4) 3-Servo motor/PLC controlThe horizontal seal is controlled by an independent servo motor, and the longitudinal seal and the feeding tailstock are controlled by a frequency conversion motor. The mechanical structure is simple, the operation is stable, and the noise is low. (5)High precisionThe feeding speed is automatically tracked, and the packaging machine automatically accelerates and decelerates. High speed, higher precision, double knife speed can reach 300 packs/min, error ±1mm. (6) Man-machine interface, convenient and quick parameter setting, automatic tracking of color code, automatic correction of cutting length. Digitally input the sealing and cutting position to make the sealing and cutting position more accurate. (7) The fault is automatically diagnosed, and the fault display is clear at a glance. (8) Well-known brand servo motor/controller/touch screen, vertical sealing/discharging belt brush. (9) Optional configuration: coding machine, double support paper, automatic film connection, inflation, spray alcohol, lifting panel, stainless steel machine body. Company Honor
