Hot and Cold Feed Rubber Extruder for Shaping Extrusion of Rubber Products

Hot and Cold Feed Rubber Extruder for Shaping Extrusion of Rubber Products

US$25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XJD-60/90
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
E Type/Frame Type/Column Type
Screw Diameter
30~250
L/D Screw Ratio
14/1;16/1;12/1
Screw Speed
60r/Min
Row Quantity of Pin
Customizable
Main Motor Power
Customizable
Voltage
Customizable
Transport Package
Wooden Package
Specification
90/60
Trademark
HHS
Origin
Qingdao City, China
HS Code
8477800000

Product Description

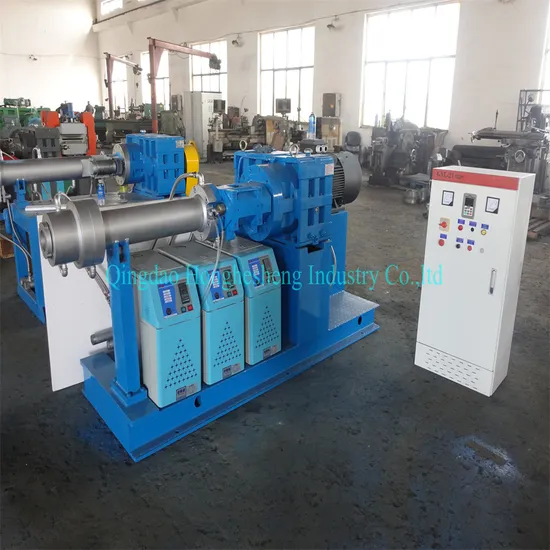

Hot and cold Feed Rubber Extruder for Shaping Extrusion of Rubber Products
rubber extruder machine can be used for the shaping extrusion of various kinds of rubber products, rubber products, rubber wrap up for the out layer of the wire and electric cable and to do the rubber filter extrusion as well.Extruder machine type : hot feed extruder ,pin cold feed extruder ,pin-barrel cold feed extruder,and rubber strainer .



Model XJD-
90×14D
XJD-
120×14D
XJD-
150×16D
XJD-
200×12D
XJD-
200×16D
XJD-
250×12D
XJD-
250×16D
Screw diameter mm 90 120 150 200 200 250 250
L/D screw ratio 14/1 14/1 16/1 12/1 16/1 12/1 16/1
Max.Screw Speed (r/min) )60 50 43 33 33 26 26
Feeding hole size mm 120×80 160×110 200×165 260×152 260×152 340×190 340×190
Row quantity of pin 8 10 10 8 12 10 12
Pin quantity of each row 6 6 8 10 10 12 12
Main motor Power KW 55 110 220 315 355 400 450
Max.Production capacity (kg/n) 360 800 1500 2600 2600 3600 3600

We can customize according to your requirements, the online price is for reference only, subject to the actual offer
If you are interested in our products or have any questions please contact us freely.
We will try our best to meet your requirement at first time.

1 The machine is equipped with inner tube and tire tread extrusion heads ,and can also be equipped with other extrusion heads as required by users.2 A machine body temperature measuring and indicating device is installed.The feeding zone over 150 is equipped with side rolls for the enhancement of feeding capability.3 The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.4 The reducer has a forced lubrication unti,which is featured by high transmission efficiency,long service life and low noise.5 The machine over 150 is driven by a variable-speed motor.6 The side rolls are designed as side-open type for easy rubber removal
Company introduce


Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company's main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
"Quality, integrity, innovation, service"is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.


FAQ

1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.

2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.

3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.

4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.

5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client's requirement.
