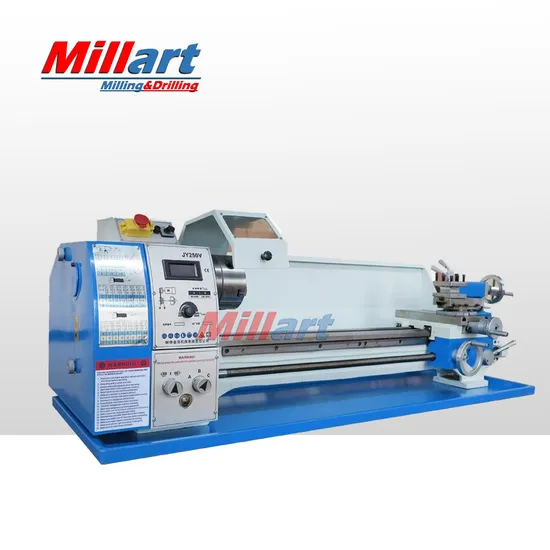

High Precision Jy250 Jy250V Mini Belt Speed /Variable Speed Bench Lathe Machine with 26mm Spindle Bore, Horizontal Manual Metal Lathe Machine

Product Description

Product description:
Technical parameter :
Technical parameter :

Model	JY250	JY250V
Distance between centers	550/750mm
Swing over bed	250mm
Swing over cross slide	145mm
Width of bed	135mm
Taper of spindle bore	MT4
Spindle bore	26mm
Number of spindle speeds	6/variable speed
Range of spindle speeds	125-2000/50-2000rpm
Range of longitudinal feeds	0.07 -0.20mm /r
Range of inch threads	8-56T.P.I
Range of metric threads	0.4 -3.5mm
Top slide travel	50mm
Cross slide travel	115mm
Tailstock quill travel	70mm
Taper of tailstock quill	MT2
Motor	550/750W
Packing size	1150/1350 × 560 × 570mm
Net weight	120kg / 140kg

Standard accessories: Jaw chuck,
Splash guard,
Chip tray,
Toolbox &tools

Optional accessories:
Steady rest
Follow rest
Face plate
4 jaw chuck
Live center
Stand base
Lathe tools
Thread chasing dial
Spindle cover
Lead screw cover
Tool post cover
Side brake
DRO
Quick change tool post Company information:
