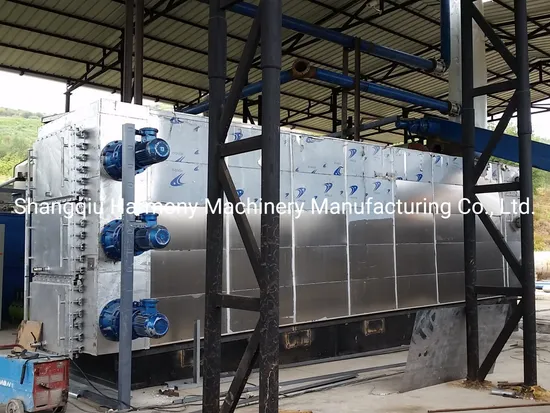

80-100 Ton Per 24hours Plastic Recycling Fully Continuous Pyrolysis Machine Pyrolysis Plant

Product Description

1.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours technical data

Name	80-100 ton fully continuous pyrolysis plant
Material	stainless steeel
Work pressure	Slightly negative
Process capacity /24hours	About 100Ton tyre
	Abotu 80 -100Ton plastic
	Oil sludge100Ton
	Oil sand100Ton
Output	Base oil /Furnace oil
Working principle	Oxygen free pyrolysis
Workers	6-9
Power	100-140kw
Voltage	220v/380v
Power consumption/24hours	About 1500 kw
Water consumption	About 8 Ton
Feeding time	Fully Continuous feeding
Slag discharge time	Fully Continuous discharge
working life span	4-6 year (12Cr1MoV) 5-10 year (stainless steel )
Slag temperature	About 150ºC
Fuel	Gas, oil ,others
Pyrolysis way	Static, non-rotate
Dust smoke temperature	About 350ºC
Pyrolysis effective temperature	About 150-600ºC
Max-temperature	About 800 ºC-1000 ºC

2.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours

2.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours pyrolysis output oil rate :

PE	50%-75%
PP	50%-75%
PS	50%-75%
ABS	40%
Leftovers of paper	Wet 15-20%, dry 60%
House garbage	35-50%
Plastic cable	80%
Plastic bag	50%
Submarine cable	75%
Rubber cable	35%
Sole	30%
Big tires	45-50%
Small tires	35-40%
PVC	Not suitable
PET	Not suitable
Big tyre	40-45%
Small tyre	30-35%

3.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours features:
1). widely usage
Can be used for:
tyre chips ,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild ,paint sludge etc.
2). static pyrolysis ,getting higher quality oil, less dust in oil
3). large capacity
24hours produce 80-100 Ton material
4) .continuous pyrolysis, no need cooling reactor, saving fuel, saving working time
5). The plant can working 25dyas*24hours without stop, fully continuous
6) .Continuous feeding without stop
7) .Continuous slag out without stop
8) .Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy
9) .good pressure tightness, safe
4.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours Major configuration
1). feeding system in sealing way
2). pyrolysis reactor
3). heating system by oil or gas
4). waste gas burning system
5). cooling system
6). waster-oil separator
7). strong-spray tower/de-dust stank
8). slag auto discharge system
9). oil collection system
10). PLC control system
11). pressure and temperature remote control monitoring system
12). Explosion-proof ,security device
5.plastic recycling fully continuous pyrolysis machine pyrolysis plant 80-100 ton per 24hours work flow
6.others specification fully continuous plant

No.	Daily capacity	Modle /specification	application
1	5 ton skid type /moible type	XHLX-05	oil sludge , tyre, plastic, paint residuel,others
2	20-30 ton type	XHLX-20-30	oil sludge , tyre, plastic, paint residuel,others
3	40-60 ton type	XHLX40-60	oil sludge , tyre, plastic, paint residuel,others
4	80-100 type	XHLX-80-100	oil sludge , tyre, plastic, paint residuel,others

7.Company introduction
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in research, development, production, sale and service of environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc. We have rich experience (8 years experience) in making, installation and uasge of these machines. Shangqiu harmony is the top 10 enterprise in waste to energy recycling area. Our major products are solid waste to fuel oil pyrolysis plant and waste oil to diesel refining distillation plant. Pyrolysis plants daily capacity from 2 ton to 100 ton ,working type from batch to fully continuous type. For distillation plant , the best selling specification are 5 TPD, 10 TPD and 15 TPD. Customized products are also welcome. Now our new tech is crude oil (sludge oil) refining and municipal waste continuous recycling which convert waste to energy without pollution. Our products have been sold to many countries such as :Malaysia, Singapore, Vietnam ,Philippine ,Bangladesh, Indonesia, India, Korea, Pakistan, Mexico, Iran, Italy Etc. We have achieved CE,ISO,TUV Certificates .The emission can meet GB-13271-2001 related standards.
