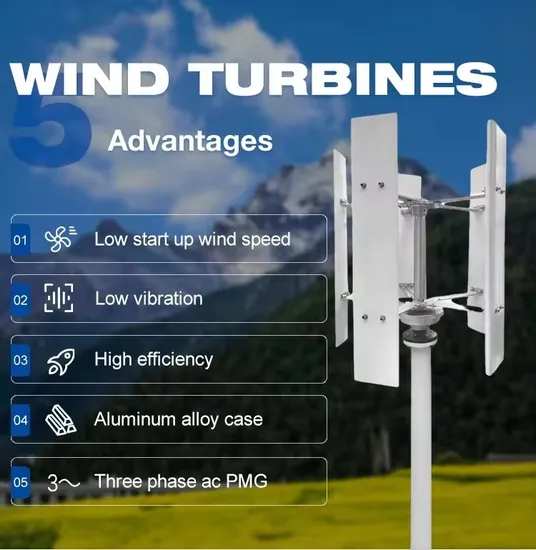

Customized Wind Turbine Generator 2kw 3kw 5kw 10kw 48V 96V 120V 220V Vertical Wind Turbine

Product Description

Customized wind turbine generator 2kw 3kw 5kw 10kw 48v 96v 120v 220v vertical wind turbine Place of Origin Jiangsu, China
Brand Name Sanmu
Warranty 20years
Certification CE
Customized Yes
Output Voltage 48V/96V/120V/220V
rotor diameter 1-7.6M
Start wind speed 2.5m/s
Rated wind speed 11m/s
Safe wind speed 45m/s
Number of blades 5
Blades material Aluminum alloy
Magnet material NdFeB
Generator case Permanent magnet/Outer rotor generator
Control system Electromagnet
Operating temperature -40ºC-80ºC
Design life 20 y Product Description

Product Details

Model	500H530	600H530	800H530	1000H530
Rated power	500W	600W	800W	1000W
Rated voltage	12v/24v/48v	12v/24v/48v	24v/48v	24v/48v/120v/220v/240v
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11m/s	11m/s	11m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s
Wheel diameter	1.16m	1.16m	1.35m	1.67m
Blades height	1.6m	1.8m	1.2m	2.2m
Blades material	Aluminum alloy
Generator type	Permanent magnet generator
Magnet material	NdFeB
Control system	Electromagnet
Speed regulation	Automatically windward
Working temperature	-40°C - 80°C

Model	2000H530	3000H530	5000H530	10KH530
Rated power	2000W	3000W	5000W	10000W
Rated voltage	48v/96v/120v/220v/240v		96v/120v/220v/240v	120v/220v/240v/380v
Start-up wind speed	2.5m/s	2.5m/s	2.5m/s	2.5m/s
Rated wind speed	11m/s	11m/s	11m/s	11m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s
Wheel diameter	2.1m	2.63m	3.15m	4.25m
Blades height	3.2m	4.2m	5m	6.8m
Number of blades	5
Blades material	Aluminum alloy
Generator type	Outer rotor generator
Magnet material	NdFeB
Control system	Electromagnet
Speed regulation	Automatically windward
Working temperature	-40°C - 80°C

Application
Company Profile
FAQ
Q1:Which model wind generator is suitable for me?
A1: Plese contact with our sales, Sanmu will help you choose the most suitable model for you.
