Sawing Machine Sliding Panel Saw for Plywood Production

Product Description

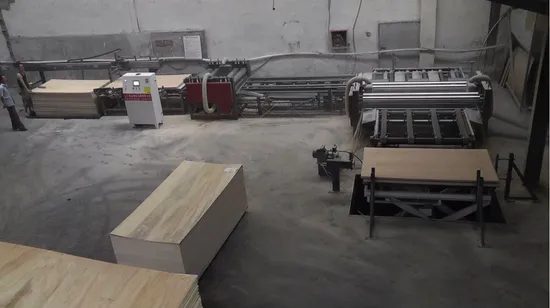

Detailed Photos
Product Description
TECHNICAL PARAMETERS

1	Model	DDS48
2	Main frame material	100*120 mm square steel tube
3	Cutting size	1220*2440 mm
4	Cutting thickness	maximum 60 mm
5	Diagonal tolerance	less than 1 mm
6	Straightness tolerance	less than 0.5 mm
7	Saw head	Casting, fine finishing
8	Bearings	NSK (Japan brand)
9	Voltage standard	380V, 50HZ
10	Pneumatic element	AKS
11	PLC brand	SIMENS
12	Touch screen displayer	SIMENS
13	Main elctrical parts	CHINT
14	Inverter	DELTA
15	Feeding speed	0-30 meters per minute, adjustable
16	Line speed	5315 meters per second
17	Saw blade speed	6800 turns per minute
18	Electrical control panel	dust-free and powder painting
19	Total Motor power 40.4 KW	main saw blade head 7.5 KW, 4 pieces
		small saw blade head 1. 1KW, 4 pieces
		lift table motor 3 KW, 1 piece
		working table motor 1.5 KW, 2 pieces
23	The first saw guide rail	30 mm diameter , Six arrises guide
24	The second saw guide rail	30 mm diameter , cylindrical guide
25	Saw blade	4 big saw blade, 4 small saw blade (Germany BAK)
26	Gross weight	4800 KGS (It needs 1*40HC container to load)

Company Profile
Company Profile
Linyi Zhonghe Machinery Company is professional in solutions of wood veneer production machine,plywood production machine, particle board machine, MDF board machine, saw mill machine, wood veneer, plywood, other related material and parts for wood processing industry, construction material and machine, etc.
The detail business range is as following:
1-wood veneer production machine:
Log cutting machine, log debarker, core veneer peeling machine, face veneer peeling machine, wood veneer dryer, wood veneer clipper, wood veneer stacker, veneer tape, etc.
2-plywood production machine, film faced plywood machine:
Core veneer composer, putty spreader, veneer sanding machine, veneer jointer, glue powder, glue making machine, glue mixer, glue spreader, base plywood forming machine, cold press, hot press, bolier, Double Dimension saw, sanding machine, wood dust collector, stainless steel plates, cushion pads, etc.
3-Particle board machine and MDF board machine.
4-Saw mill machine: Vertical band saw, horizontal band saw, saw blade sharpener.


Certifications

FAQ
Frequently Asked Questions (FAQ)
1. What products does your company offer?
Our company mainly provides equipment for the plywood and veneer industry. Our main products include:
• Wood Veneer Machines
• Plywood Making Machines
• Related Equipment and Accessories (both main machines and auxiliary equipment)
Additionally, we offer import and export agency services to help facilitate trade in the industry.
2. What is your delivery timeline for the products?
We provide customized delivery schedules based on specific product requirements and customer needs. The exact delivery time will depend on the type and quantity of equipment ordered.
3. What warranty do you offer on your products?
We offer a one-year warranty on major components of our machines. The warranty covers manufacturing defects and issues related to the main parts of the equipment. Specific warranty details will be provided along with the product's technical specifications.
4. Do you provide installation and after-sales services?
Yes, we offer comprehensive after-sales support:
• Online Support: We provide video tutorials, technical drawings, and installation manuals to assist with the setup and operation of our equipment.
• Offline Support: Our experienced technical staff can assist with on-site installation and commissioning, ensuring that the machines are properly set up and fully operational.
5. Which countries do you frequently export to?
We regularly export to various countries, including:
Brazil (where we have local distributors),Argentina,Paraguay,Fiji,Pakistan,Bulgaria,Ghana Etc.
We have experience working with these countries and can visit their factories and see our machines.
