Customizable Lift Speed on Laser Cutting Feeder for Precise Control

Product Description

Vacuum Lifter
Vacuum lifters are the perfect solution for simplifying production processes and transportation tasks. Whether you need to move steel, glass elements, stone, or wood from one place to another, you'll find the ideal answer at Taiz, the pioneer in advanced vacuum transport methods. We offer a range of Lifterboy vacuum lifters, accommodating loads from 300kg to 2000kg. Each model is available in two versions: plug-in or battery-powered for outdoor use. The suction pads are adjustable to fit smaller sheet sizes. Equipped with sound and light alarm systems and one-way valves, they ensure a reliable vacuum hold time, giving operators ample time to take appropriate action. These lifters are extensively used for loading metal sheets, wooden panels, glass sheets, and other materials into laser cutting machines.

Model	Length	Capacity	Sucker Qty	Sucker diameter	Input Voltage	Package Size	Gross weight
XDL300-2M	2m	300kg	4pcs	200mm	220/380V	2100x840x840mm	110kg
XDL600-2M	2m	600kg	6pcs	200mm	220/380V	2100x840x840mm	120kg
XDL800-2M	2m	800kg	8pcs	200mm	220/380V	2100x840x840mm	125kg
XDL800-3M	3m	800kg	8pcs	200mm	220/380V	2100x840x840mm	135kg
XDL1000-3M	3m	1000kg	10pcs	200mm	220/380V	2100x840x840mm	180kg
XDL1000-5M	5m	1000kg	10pcs	200mm	220/380V	2100x840x840mm	190kg
XDL2000-5M	5m	2000kg	20pcs	200mm	220/380V	2100x840x840mm	290kg

Adaptable and Efficient Lifting System: This vacuum suction cup panel lifter for sheet metal feeding provides an adjustable lift speed, enabling precise control and efficient material handling across various industries, including building supply stores, mechanical repair facilities, production plants, construction sites, and energy & mining operations.
Safety and Compliance: The product adheres to CE certification standards, ensuring it meets regulatory requirements. Moreover, the safety loading is adjustable, offering flexibility for diverse lifting tasks.


Dependable Performance: Powered by electricity and backed by a 2-year warranty, this lifter ensures reliable performance and longevity. The core components are also covered by a 3-year warranty for added assurance.
Easy Operation: This lifter offers both manual and remote control options, allowing for convenient operation and adaptability in different work settings.

Customization Options: This vacuum lifter can be tailored to meet specific requirements, allowing customers to choose from various dimensions, suction capacity, and control modes to suit their needs.
Factory Direct Price Guarantee: We offer the product at a competitive factory direct price, ensuring customers receive the best value for their investment. Multi-Industry Compatibility: Suitable for various industries including building material shops, machinery repair shops, manufacturing plants, construction works, energy & mining, and more, this product caters to diverse applications. Extended Warranty and Support: Enjoy a 2-year warranty on the product and a 3-year warranty on core components, along with provided machinery test reports and video outgoing inspections for added peace of mind.
What safety measures should be taken when using a vacuum lifting equipment and light crane system?
* Safety is paramount when using lifting equipment. Some important safety measures include:
* Proper training: Ensure that operators are trained in the safe operation of the equipment and follow all manufacturer instructions and guidelines.
* Regular maintenance: Conduct regular inspections and maintenance on the equipment to ensure it is in good working condition.
* Load capacity: Do not exceed the maximum load capacity of the equipment, and ensure that loads are properly balanced and secured. * Safety devices: Use safety features such as overload protection, emergency stop buttons, and safety interlocks to prevent accidents.


Product Details
High quality thickened steel sheet metalSheet metal bracket welding base, fully painted bracket connection, not easy to break.Intelligent alarm deviceWhen the automatic detection system determines that the vacuum pressure is lower than the set value of 50, the vacuum alarm will sound and light alarm and provide efficient supply (only 1.5 seconds). When the vacuum height of the sucked plate is lower than the specified value, it will automatically sound the alarm.
ProduThe equipment is encased in plastic foam for protection and secured with cable ties, then arranged neatly inside a wooden crate. Thickened export-grade wooden planks are utilized to seal and safeguard the product, ensuring it remains undamaged throughout transit.
Product Package ct Package

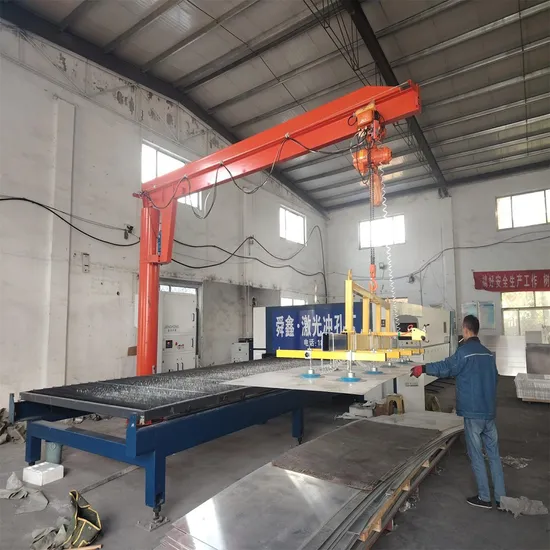

Pneumatic vacuum suction crane is specially used for handling various plates and is suitable for loading and unloading of various processing machines. It has long-term cooperation with international and domestic laser cutting machine manufacturers,
* Laser cutting machine, plasma cutting machine, shearing machine loading and unloading
* Suitable for aluminum plate and stainless steel plate
* Imported vacuum pumps and valves * Maximum load 2000KG
* Accumulator and pressure detection ensure safety
* Various structures and suction cups available for configuration
* Can be applied to high temperature plates below 400 degrees
* The company passed IOS9001 and the products passed CE and SGS With a rigorous attitude and a high degree of awareness, it is the company's product quality policy and goal to continuously improve products and achieve zero defects. To this end, the factory has complete product production, trial production, and inspection standards and processes to ensure high standards and strict control of each product
