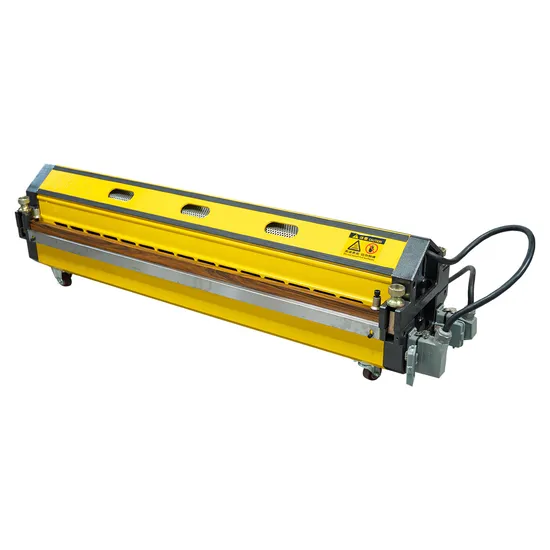

ACP-1200 Lightweight Vulcanizer for Belt Splicing with PU/PVC/TPU Conveyor Belt

Product Description

Product Description ACP1200 Air Cooling Press ACP1200 Air cooled press has all componets integrated into the tool,allowing a user to plug it simply into electricity and it's ready for use.
Fast and Portable Splicing,can be bring to anywhere easily.
Specifications:
•ANTAI ACP series air cooled press,have different models from 300mm to 2100mm.
•Used for PVC/PU/PVK Belt and thermoplastic belt materials etc.
•Portable splice press,light weight and with flight case as standard packing,easily removed to anywhere for on-site joint work.
•Fast Splicing:Heating and cooling time:no more than 12mins.
•All-in-one design:Integrated air cooling system and also air compressor inside.To ensure that belt is quickly cooled down and auto press on,without water pump or additional air compressor.The air compressor made in Germany.
•Reliable and automatic temperature control with time controlling(in one meter,also you can sent by yourself).High quality Euro thermistor.The temperature controller from Eurothern,made in UK.
•Air pressure controller (set the air pressure and display the current pressure),High quality SMC Controller.

Model	ACP1200
Effective length	1219mm
Effective width	130 mm
Weight lower part	28.5 kg
Weight upper part	25.5 kg
Total weight	54 kg
Overall height	255mm
Max. pressure	2 Bar
Max. temperature	200 ºC
Packaging list(L x W x H)	1720*450*430mm
Gross weight	104kg

FAQ 1. Delivery time of the rubber machines? This is specially designed machine according to your specific requirement. From engineer designing to production completion, it needs about 25 to 35 days. 2. What does your factory do regarding quality control? We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment. 3. What's the machine quality guarantee? Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition. 4. Are you able to give installation and commissioning overseas? How long time will it take? Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big plant usually takes about 30 days. 5. How can I trust you to deliver the right machine as I ordered? We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us. 6. How can we go to your side? We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport. 7.We will pick up you at the airport. If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
