High Efficiency Worm Gear Series Double Enveloping Worm Gear Unit Worm Gearbox

Product Description

High Efficiency Cone Worm Gear Series Double Enveloping Worm Gear Unit Worm Gearbox
Product Description
Series C double enveloping worm gear
Model: 100 - 500
Ratio: 10 -63
Output Torque : 683 - 51180 N.m
Rating Power : 47/25HP(1.41Kw) - 597HP(448Kw)
1, High torque double enveloping worm gear adjust toughest working condition .
2,Universal design double enveloping worm gearbox.
3, Smooth and noiseless operation double worm gearbox.
4, Higher driving efficiency than traditional worm gear.
5, Increasing loading capacity .
6, Strict quality test before shipping
7, Customized design for various application
8, Long life service period
9,suitable price with moderated
10, moderate price & high quality In a Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer, three to eleven gear teeth are typically in contact with the worm, depending upon the ratio. The increased number of driven gear teeth that are in contact with the worm significantly increases torque capacity also raises shock load resistance. In addition to increasing the number of driven gear teeth in contact with the worm, Worm Gearbox, Worm Reduction Gear Box, Worm Speed Reducer and Gear Motor Manufacturer also increases the contact area on each gear tooth. The actual areas of instantaneous contact between the worm threads and the driven gear tooth are lines. These lines of contact move across the face of the gear tooth as it progresses through its total time of mesh with the worm. The lines of contact in double-enveloping worm gearing are configured to increase the power transmission capability and reduce the stress on each gear tooth.

Working conditions
Two shafts for 90 ° Intersect, input speed must not be more than 1500 rpm.The working environment temperature should range from 0 ~ 40 ° C, when the environment temperature below 0 ° C or above 40 ° C.Before starting the lubricating oil to corresponding heating and cooling, The worm shafts, reverse operation can be positive.
Data sheet on CUW double enveloping worm gear reducer :

Model	ShaftDia. (mm)	Center Height (CUW)	(CUW) Output shaft Dia.	Power	Ratio	Permitted Torque	Weight
	(CUW) input Solid(h6)	(mm)	(mm)	(kw)		(Nm)	(KGS)
100	28	190	48	1.41~11.5	10 .25~ 62	683-1094	42
125	32	225	55	2.42~19.7	10 .25 ~ 62	1170~2221	65
140	38	255	65	3.94~25.9	10 .25 ~ 62	1555 ~ 3473	85
160	42	290	70	4.39~35.7	10 .25 ~ 62	2143 ~4212	120
180	48	320	80	5.83~47.5	10 .25 ~ 62	2812 ~ 5387	170
200	55	350	90	7.52 ~61.2	10 .25 ~ 62	3624 ~6859	220
225	60	390	100	9.9~81.4	10 .25 ~ 62	4872 ~ 9224	290
250	65	430	110	12.9 ~105	10 .25~ 62	6284~11892	380
280	70	480	120	16.9 ~ 138	10 .25 ~ 62	8347 ~ 15820	520
315	75	530	140	22.5 ~183	10 .25 ~ 62	11068~ 19450	700
355	80	595	150	30~245	10 .25 ~ 62	14818 ~28014	1030
400	90	660	170	32.1 ~261	10 .25 ~ 62	15786~29918	1400
450	100	740	190	42.6 ~347	10 .25 ~ 62	20998~39881	1980
500	110	815	210	54.9 ~ 448	10 .25 ~ 62	27097~51180	2700

Advantage:
The advantage of Sgr High Efficiency, Low Noice Cone Worm Series Worm Gearbox design are dramatic. First, the total load is divided among more individual gear teeth, and the load is further divided where teeth support two lines of contact. This superior load distribution greatly increases load carrying capacity. Second, the improved torque throughput allows a smaller reducer to produce the same amount of torque, resulting in size and weight savings.
Double-enveloping worm gearing can carry loads that would require much larger and heavier cylindrical worm gearing.

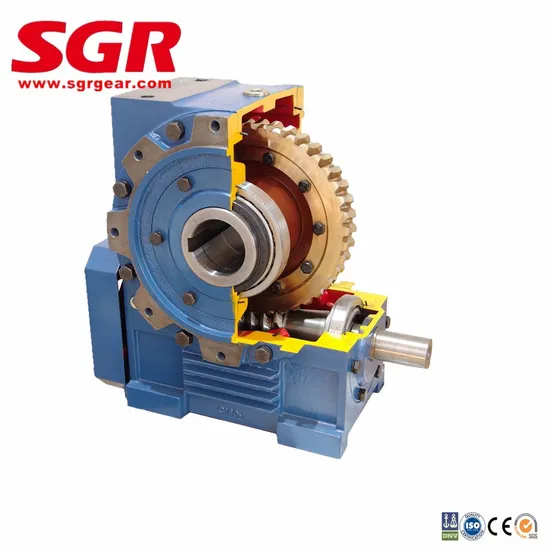

Double-enveloping worm gearbox figure :
(Click on picture for more information)


Packaging & Shipping Package :
SGR gearbox use standard wood case per gear motor | gear unit.

Shipping :
According to Customer requirement, we delivery products by different transport, Sea shipping, Air Transportation / Express or Truck transportation etc.
You Appoint, We Service!
Our Services With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
