PE600X900 Mobile Jaw Crusher with Vibrating Feeder System

Product Description

Product Description

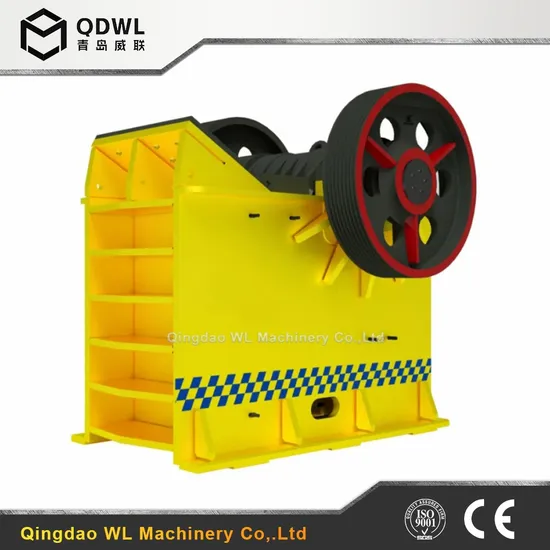

Mining Stone Jaw Crusher Machine
Gold Ore Crusher, Primary Granite Limestone Concrete Gravel Rock Crushing Jaw Crusher machine
High-performance jaw crusher adopts symmetrical "V" shaped crushing cavity, high output and high efficiency Shock absorption design, safe and low noise; Movable jaw guard plate is wear-resistant and impact-resistant; Super large bearing design, strong bearing capacity The main components are all made of high-quality raw materials at home and abroad, with reliable quality and low overall equipment failure rate.
Due to Jaw crusher have the large crushing ratio, it is mainly used for the primary crushing of hard or medium-hard stones.
It can process all kinds of ores with compressive strength not higher than 320MPa to medium particle size at one time. It is often combined with the cone crusher, impact crusher, sand making machine, etc. to form a complete set of sand and gravel production plant.
Detailed Photos
The advantages
1. The jaw plate can be installed and use in a U-turn, which increases the service life more than 80%.
2. The heat-treated forged eccentric shaft is not only strong but also wear-resistant, increasing the service life by 50%.
3. The side guard is fixed with bolts, which is easy to maintain.
4. The output product has uniform particle size and large crushing ratio
5. We installed overload protection to prevent machine damage.
6. It have less dust and also low noise.
7. The size of the discharge port can be adjusted to meet your different needs for stone crushing.
8. this machine easy to operate and strong reliability.
The jaw crusher machine uses compressive force to break hard stone material, such as granite, basalt, limestone, gold ore, boulders, etc. The two vertical manganese jaw plates create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than the bottom.
The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces. As the moving jaw moves away from the fixed jaw, the crushed material is discharged from the discharge opening at the bottom.
The required rock size is determined by the gap between the jaws. The wide adjustment range of discharging port meets different demands.
Product Parameters
The jaw crusher is one of the most common limestone stone crushers. There are many models of PE jaw crusher, among which the most popular models are PE-400×600, PE-600×900, PE-750×1060, PE-900x1200 and bigger size model

Model	Inlet size(mm)	Max feed size (mm)	Output size(mm)	Capacity(t/h)	Power(kw)	Dimension(mm)
PE200x300	200x300	180	15-50	2-6	7.5-4P	915x780x990
PE250x400	250x400	210	20-100	8-30	15-6P	1450x1315x1296
PE400x600	400x600	340	40-100	15-80	30-6P	1851x1744x1600
PE500x750	500x750	425	50-100	50-150	55-6P	2000x1915x1880
PE600x900	600x900	500	65-160	60-180	55-6P	2300x1824x2270
PE750x1060	750x1060	630	80-180	110-350	110-8P	3250x2480x2930
PE900x1200	900x1200	750	100-200	220-450	110-8P	3900x2890x3330
PE1200x1500	1200x1500	1020	150-350	400-1000	220-8P	4850x3220x3680
PE1500x1800	1500x1800	1200	220-350	500-1200	280-8P	5160x3660x4248

In order to overcome the impact of the environment on the work, we can also install crushers, feeders, conveyor belts and other equipment on the axle to make a mobile crushing production line, which not only solves the problem for customers but also improves the efficiency of their production lines.
