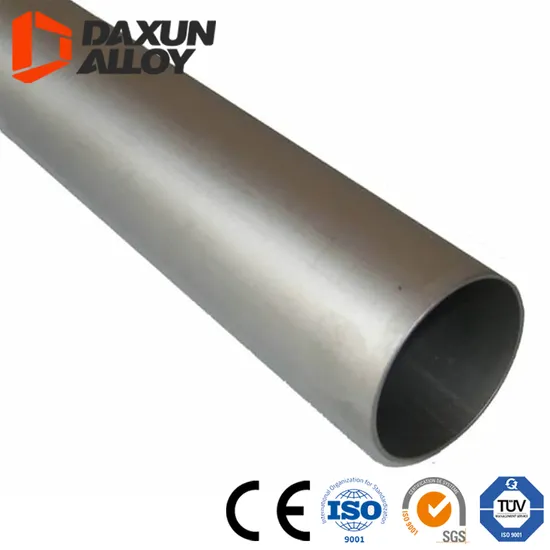

Titanium Welded Pipe, Manufacturer Direct Sales, ASME Sb-861 Grade1 Grade2, MIG Welding, Lightweight, Automobile Exhaust, Titanium Welded Tube

Product Description

Product Parameters

Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 6al-4V 3al-2.5V Titanium pipe & Tubes Specification	ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Grades	Commercially pure titanium Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Type	ot Rolled / Cold Drawn / Welded / ERW
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Outer Diameter Size	Titanium seamless pipe - φ1.0mm to φ508.3mm
	Titanium welded pipe - φ1.0mm to φ1219mm
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Wall Thickness	1.0mm-50mm (customizable wall thickness)
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Length	5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
Titanium pipe Form TA2	' Hollow, U' bent, LSAW, Hydraulic, Straight Tube, Boiler, Round, Tube Coil, Square, Rectangular Etc
Marking Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 6al-4V 3al-2.5V	All Titanium Tubes Tubing are marked as follows: Grade, Standard, Thickness, OD, Heat No., Length (Or according to the customer's request.)
Uses of Titanium Alloy Tubes	Gas pipes, oil pipes, heat exchanger tubes, boiler tubes, fluid pipes, titanium exhaust pipes.
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Pipe Ends	Plain Ends / Beveled Ends
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Delivery Conditions	As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Other Testing	ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc.
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Gr1 Gr2 Gr5 Gr7 Gr9 Gr12 6al-4V 3al-2.5V Titanium pipe & Tubes Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Gr1 Gr2 Gr5 6AL-4V 3AL-2.5V Titanium pipe & Tubes Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Detailed Photos
Applications and StandardsTitanium Pipes and Tubing are extensively applied in extremely corrosive conditions in the following industries:
Chemical processing parts such as heat exchangers, reaction vessels, evaporators, and delivery pipelines; automotive exhaust systems; oil and gas industry; petrochemical plants; chemical plants; industrial machinery; power generation industry; paper and pulp industry; food processing industry; refineries; and pharmaceutical and food processing equipment.Specifications: ASTM B861, B862, B338 / ASME SB861, SB862, SB338
Standard: ASTM, ASME, and API Quality, Delivery, InspectionAt Daxun, we conduct rigorous quality assurance tests, including flattening test, flaring test, ultrasonic flaw detection test, pitting and resistance test, mechanical test, hardness test, material positive identification, and expansion test. These tests ensure that Grade 1 Titanium Welded Pipe and Grade 1 Titanium Seamless Pipe meet all application requirements. During production, we carefully measure the diameter, thickness, and surface of our products. Our standard delivery time is 5-7 days, with special size products requiring 15-20 days.
Our delivery timelines strictly adhere to contractual agreements.We support customer third-party agencies to visit our factory for inspections.We offer free samples for customer testing.We support on-site or video factory inspections.
About the chemical composition of (Ti 6AL-4V) Grade 5 Titanium Tube

Chemical Composition:
Symbol	Element	Min %	Max %
Al	Aluminum	5.50%	6.75%
V	Vanadium	3.50%	4.50%
Fe	Iron		0.30%
O	Oxygen		0.20%
C	Carbon		0.08%
N	Nitrogen		0.05%
H	Hydrogen		0.01%
Y	Yttrium		0.01%
	Other, each		0.10%
	Other, total		0.40%
Ti	Titanium		Remainder

About the mechanical properties of (Ti 6AL-4V) Grade 5 Titanium Tube

Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %

About the chemical composition of Grade 2 Titanium Tube

Element	Weight %
C	≤0.08
O	≤0.25
N	≤0.03
H	≤0.015
Fe	≤0.30
*OEE	≤0.10
*OET	≤0.40
Ti	Remaining

About the mechanical properties of Grade 2 Titanium Tube

Alloy	UNS Designation	Spec.	Tensile Strength (min.)			Yield Strength 0.2% Offset (min.)			Elongation in 2 inches (min.)	Max Hardness	Modulus of Elasticity (x106 psi)	Mean Coefficient of Thermal Expansion IN./IN./°F x 10-6)	Thermal Conductivity (BTU-in/ft2-h-°F)
			psi	MPa	ksi	psi	MPa	ksi	%
Grade 2 Titanium	R50400	B338	50,000	-345	50	40,000-	(276-448)	40-65	20	-	16	5.1	144
						50,000

About the chemical composition of Grade 1 Titanium Tube

Element	Minimum (weight %)	Maximum (weight %)	Typical (weight %)
Fe		0.2
O		0.18
C		0.08
N		0.03
H		0.015
Ti	Balance

About the mechanical properties of Grade 1 Titanium Tube

Density
lb/in3	g/cm3
0.163	4.51
Tensile Strength
ksi	MPa
35 min	240 min
Yield Strength
ksi	MPa
20 min	138 min
Hardness
70 HRC max
Elongation
24% min

About the chemical composition of 3Al-2.5V Titanium TubeElementMinimum (weight %)Maximum (weight %)Typical (weight %)

Al	2.5	3.5
V	2.0	3.0
Fe		0.25
O		0.15
C		0.08
N		0.03
H		0.015
Ti	Balance

Packaging & Shipping
Company Profile

CP GR1 Titanium tube PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.50 g/cc	0.163 lb/in³
a Lattice Constant	2.95 Å @Temperature 25.0 °C	2.95 Å @Temperature 77.0 °F	alpha phase
	3.29 Å @Temperature 900 °C	3.29 Å @Temperature 1650 °F	beta phase
c Lattice Constant	4.683 Å	4.683 Å @Temperature 77.0 °F	c/a = 1.587
Mechanical Properties	Metric	English	Comments
Hardness, Brinell	120	120	annealed
Hardness, Knoop	132	132	Estimated from Brinell.
Hardness, Rockwell B	70	70	annealed
Hardness, Vickers	122	122	Estimated from Brinell.
Tensile Strength	124 - 138 MPa @Temperature 427 °C	18000 - 20000 psi @Temperature 801 °F
	152 - 179 MPa @Temperature 316 °C	22000 - 26000 psi @Temperature 601 °F
	193 - 207 MPa @Temperature 204 °C	28000 - 30000 psi @Temperature 399 °F
Tensile Strength, Ultimate	240 MPa	34800 psi
Tensile Strength, Yield	170 - 310 MPa	24700 - 45000 psi
	76.0 - 90.0 MPa @Temperature 427 °C	11000 - 13100 psi @Temperature 801 °F	0.2% offset
	83.0 - 103 MPa @Temperature 316 °C	12000 - 14900 psi @Temperature 601 °F	0.2% offset
	110 - 124 MPa @Temperature 204 °C	16000 - 18000 psi @Temperature 399 °F	0.2% offset
Elongation at Break	24%	24%
	25 - 30 % @Temperature 427 °C	25 - 30 % @Temperature 801 °F
	30 - 35 % @Temperature 316 °C	30 - 35 % @Temperature 601 °F
	40 - 50 % @Temperature 204 °C	40 - 50 % @Temperature 399 °F
Reduction of Area	35%	35%
Tensile Modulus	103 GPa	14900 ksi
Compressive Modulus	110 GPa	16000 ksi
Poissons Ratio	0.37	0.37
Shear Modulus	45.0 GPa	6530 ksi
Charpy Impact	310 J	229 ft-lb	V-notch
Impact Test	136 J	100 ft-lb	Impact Strength
Coefficient of Friction, Dynamic	0.68	0.68	Ti sliding on Ti; 300 m/min
	0.8	0.8	Ti sliding on Ti; 40 m/min

CP GR2 Titanium tube PHYSICAL PROPERTIES
Density	Magnetic Permeability
0.163 lbs/in-3	Nonmagnetic
4.51 g/cm-3	Electrical Resistivity
Beta Transus (+/-25°F, +/--3.9°C)	21 µΩ/in
1680°F	0.53 µΩ/m
915°C	Elastic Modulus
Thermal Conductivity	15.2-17.4 Msi
12.60 BTU hr-1ft-1 °F-1	105-120 GPa
21.79 W m-1 °C-1	Typical values at room temperature of about 68-78°F (20-25°C)

GR5 TI6AL4V Titanium tube PHYSICAL PROPERTIES
Physical Properties	Metric	English	Comments
Density	4.43 g/cc	0.16 lb/in³
Mechanical Properties
Hardness, Brinell	334	334	Estimated from Rockwell C.
Hardness, Knoop	363	363	Estimated from Rockwell C.
Hardness, Rockwell C	36	36
Hardness, Vickers	349	349	Estimated from Rockwell C.
Tensile strength	min. 895MPa	129810 psi
Yield strength	min. 828MPa	120090 psi
Elongation at Break	min.10 %	10 %
Reduction of Area	min.25 %	25 %
Modulus of Elasticity	113.8 GPa	16500 ksi
Compressive Yield Strength	970 MPa	141000 psi
Notched Tensile Strength	1450 MPa	210000 psi	Kt (stress concentration factor) = 6.7
Ultimate Bearing Strength	1860 MPa	270000 psi	e/D = 2
Bearing Yield Strength	1480 MPa	215000 psi	e/D = 2
Poisson's Ratio	0.342	0.342
Charpy Impact	17 J	12.5 ft-lb	V-notch
Fatigue Strength	240 MPa	34800 psi	at 1E+7 cycles. Kt (stress concentration factor) = 3.3
Fatigue Strength	510 MPa	74000 psi	Unnotched 10,000,000 Cycles
Fracture Toughness	75 MPa-m½	68.3 ksi-in½
Shear Modulus	44 GPa	6380 ksi
Shear Strength	550 MPa	79800 psi	Ultimate shear strength
Electrical Properties
Electrical Resistivity	0.000178 ohm-cm	0.000178 ohm-cm
Magnetic Permeability	1.00005	1.00005	at 1.6kA/m
Magnetic Susceptibility	3.30E-06	3.30E-06	cgs/g
Thermal Properties
CTE, linear 20°C	8.6 µm/m-°C	4.78 µin/in-°F	20-100ºC
CTE, linear 250°C	9.2 µm/m-°C	5.11 µin/in-°F	Average over the range 20-315ºC
CTE, linear 500°C	9.7 µm/m-°C	5.39 µin/in-°F	Average over the range 20-650ºC
Specific Heat Capacity	0.5263 J/g-°C	0.126 BTU/lb-°F
Thermal Conductivity	6.7 W/m-K	46.5 BTU-in/hr-ft²-°F
Melting Point	1604 - 1660 °C	2920 - 3020 °F
Solidus	1604 °C	2920 °F
Liquidus	1660 °C	3020 °F
Beta Transus	980 °C	1800 °F

Certifications
Daxun Alloy's Pure Titanium Grade 1 Tubes Include:
Seamless titanium tubes and welded titanium tubes, renowned for their exceptional ductility and cold formability, making them perfect for deep drawing applications. Grade 1 titanium tubes are celebrated for their outstanding general and seawater corrosion resistance, as well as their excellent resistance to oxidizing, neutral, and slightly reducing media (solutions), even in the presence of chlorides.
With its low density-approximately half that of nickel-based alloys-high strength, lightweight, and unparalleled corrosion resistance, titanium is the optimal choice for enduring harsh chemical environments. Our products adhere to stringent standards: ASTM B338 | ASTM B265 | ASME SB265 | ASTM F67 | ISO 5832-2 | 3.7025 | UNS R50250.
Grade 2 Titanium Tube (UNS R50400 / Werkstoff WS 3.7034) The most commonly utilized titanium tube for industrial purposes, Grade 2 offers an ideal combination of moderate strength and impressive ductility. It boasts excellent corrosion resistance in both highly oxidizing and slightly reducing conditions, including chlorides. Perfect for the chemical and offshore industries, aircraft manufacturing, heat exchangers, hypochlorite systems, fire water systems, ballast water systems, industrial and aerospace components, CPI equipment, and piping, where both strength and ease of forming are paramount.
FabricationTitanium Grade 2 readily adapts to cold forming using standard techniques. It is highly machinable, though maintaining sharp tools and liberal coolant usage is crucial. Similar to austenitic stainless steels, machining requires deep, continuous cuts at slow feeds and speeds.Stock AvailabilityDaxun Alloys maintains a robust inventory of CP 2 Grade Titanium Seamless and Welded Pipes in various sizes to meet your needs.Weight ReductionCP 2 grade titanium tubes are prized for their low density and high strength-to-weight ratio, making them ideal for applications demanding weight reduction without compromising strength. These tubes are cold formable, exhibit good ductility, and can be welded using standard TIG and MIG processes, provided inert gas shielding is used to prevent weld zone embrittlement.Crystal StructureAt ambient temperature, ASTM B338 Grade 2 titanium tubes exhibit an alpha (hexagonal close-packed) crystal structure, akin to commercially pure titanium grades 1 and 3. Around 885°C [1625°F], this structure transitions to a beta (body-centered cubic) form. The transformation temperature can vary with impurities or alloying additions, which can also segment the equilibrium transformation into alpha and beta zones: the alpha transformation zone (below which the alloy is all alpha) and the beta transformation zone (above which it is all beta). Between these zones, both alpha and beta forms coexist. Typical transformation temperatures for Grade 2 titanium are 890°C (1635°F) and 913°C (1675°F), respectively.Grade 2 Titanium Seamless Pipe Manufacturing Process Daxun's ASTM B338 Grade 2 titanium seamless tubes are meticulously crafted from hollow blanks using hot extrusion or oblique rolling and piercing processes, followed by several cold rolling stages. Throughout manufacturing, the tubes maintain continuous perimeters. The comprehensive manufacturing process encompasses: sponge titanium vacuum arc melting, ingot blanking to obtain hollow blanks, cleaning, cutting and feeding, hot extrusion or oblique rolling with piercing, degreasing, drying, cutting, online annealing and straightening, pickling, multiple cold rolling cycles, degreasing, drying, vacuum annealing, straightening, cutting, pickling, final inspection, marking (DAXUN), and packaging.Grade 2 Titanium Welded Pipe Manufacturing ProcessDaxun's ASTM B338 Grade 2 titanium welded pipe is crafted from annealed flat-rolled steel plate or steel strip, utilizing an advanced automatic arc welding (TIG) process. The meticulous production processes encompass: titanium plate uncoiling, shearing, butt welding, cleaning, pipe forming, TIG welding, eddy current testing, pre-sizing, annealing, precision reducing and sizing, straightening, eddy current testing, caliper marking, cutting, ultrasonic testing, hydrostatic testing, final inspection, and packaging. Post-formation and welding, these welded pipes undergo at least one stress relief heat treatment. Notably, Daxun refrains from using any filler materials during the welding process.
Ti-6Al-4V Titanium Pipe - Grade 5 Titanium Tube
Titanium Alloy - (UNS R56400)
Introduction
DAXUN's Ti-6Al-4V Titanium Tube, Grade 5 (UNS R56400), stands as the quintessential titanium alloy, revered for its duplex alpha+beta structure. Aluminum serves as the alpha stabilizer while vanadium functions as the beta stabilizer. This high-strength alloy thrives at low temperatures of approximately 800°F (427°C). The ATI Ti-6Al-4V, Grade 5 alloy is ideally suited for annealing, solution treating, and aging. Its applications span a broad spectrum, including compressor blades, disks, and rings for jet engines; fuselage and space capsule components; pressure vessels; *** cases; helicopter rotor hubs; fasteners; and critical forgings characterized by a high strength-to-weight ratio.
Initially, the alloy is melted using sophisticated methods such as vacuum arc (VAR), electron beam (EB), or plasma arc hearth melting (PAM). Remelting occurs through one or two vacuum arc stages.
Specifications
• ASTM B338 - Standard Heat Treatable Titanium Tube
• AMS 4928 - Forgings and Forging Stock (Annealed)
• AMS 4965 - Forgings (Solution Treated and Aged)
• AMS 4967 - Forgings (Annealed, Heat Treatable)
Physical Properties
Ti-6Al-4V Titanium Tube Melting Range: 2,800-3,000°F (1,538 - 1,649°C)
Density: 0.160 lb/in³; 4.47 g/cm³
Beta Transus Temperature: 1830°F (± 25°); 999°C (± 14°)
Heat Treatment
For applications demanding high hardness, tensile strength, and fatigue strength, the titanium tube is annealed at 1,700-1,900°F (927 - 1,038°C).
The versatile DAXUN 6-4 Grade 5 Titanium Tube can undergo various heat treatment processes.
1. Annealing: 1,275 -1,400°F; (691 - 760°C), ½ to 2 hours, cooled by air or furnace.
2. Stress Relief Annealing: 1,000 -1,200°F; (538 - 649°C), for 1 to 8 hours, followed by air or furnace cooling.
3. Solution Heat Treating: 1,675 -1,750°F; (913 - 954°C), maintaining for 1 hour, then water quenching.
4. Aging: 975 -1,025°F; (524 - 552°C), sustained for 4 to 8 hours, then air cooling.
Optimum Properties
Achieving optimal properties involves rapid quenching for small cross sections in the solution treated and aged condition. Conversely, larger cross-section sizes and/or delayed quenching might yield less optimal properties.
Hardness
In the annealed state, the typical hardness ranges between Rockwell C 30-34, increasing to Rockwell C 35-39 in the solution treated and aged state.
Forgeability/Formability
DAXUN Ti-6Al-4V Titanium Tube, Grade 5 Titanium Tube is masterfully forged at an intense 1,750°F (954°C) and achieves its final form at 1,450°F (788°C). For unparalleled results, a reduction of at least 35% is strongly recommended.
DAXUN Ti-6Al-4V Titanium Tube, Grade 5 Titanium Tube presents challenges when formed at room temperature, even after annealing. This makes it ideal for severe forming operations such as bending or stretching, which can be executed on the annealed material at temperatures soaring up to 1,200°F (649°C) without altering its mechanical properties. Hot sizing or forming can be effectively performed through creep forming at temperatures ranging from 1,000 to 1,200°F (538 to 649°C).
Machinability
DAXUN Ti-6Al-4V Titanium Tube, Grade 5 Titanium Tube can be precisely machined using methods akin to those for austenitic stainless steels. Optimal results are achieved with slow speeds, high feeds, robust tool rigidity, and the application of copious amounts of non-chlorinated cutting fluids.
Weldability
DAXUN Ti-6Al-4V Titanium Tube, Grade 5 Titanium Tube boasts excellent weldability in either the annealed or solution and partially aged conditions, with aging
completed during post-weld heat treatment. It is imperative to avoid contamination from oxygen, nitrogen, and hydrogen. Fusion welding should be performed in an inert gas-filled chamber, or with an inert gas tail shield over the molten metal and adjacent hot zones. Techniques such as spot welding, seam welding, and flash welding can be carried out without the necessity of a protective atmosphere.
Special Considerations
DAXUN Ti-6Al-4V Titanium Tube, Grade 5 Titanium Tube must be safeguarded against contamination from hydrogen due to improper pickling and the absorption of oxygen, nitrogen, and carbon during processes such as forging, heat treating, and brazing. Such contamination can diminish ductility and negatively impact notch sensitivity and formability.FAQ Q1: What products can you offer?
