11mm 12mm 14mm FRP/GRP cable conduit snake fiberglass rodding cane pull cable rod / duct rodder

Product Description

Product Description
Product Description

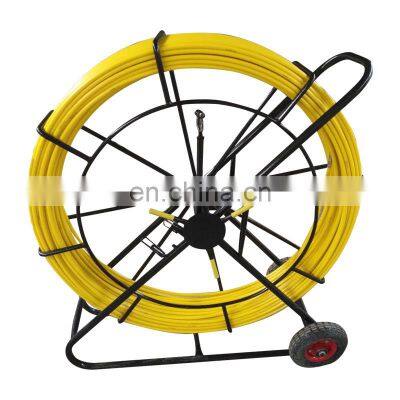

11mm 12mm 14mm FRP/GRP yellow fiberglass rodding cane duct rodder/ pull cable rod
Specification

Rod  Length	10m-1000m
Rod diameter	3mm,4mm,4.5mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm,14mm,15mm,16mm,18mm
Popular size	4.5*80m,6*50m/80m/150m  9*200m, 11*200m/300m,  12*300m   14*300m

Technology:	pultrusion
Work situation temperature	-40°C to +80°C
Elongation at Break	2.5-3%
Min pulling strength	4000N±5%
Min. bending radius	4mm-5cm,   6mm-7.5cm  9mm-18cm ; 14mm-24cm

Structure: 1. Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature.
2. Fiber glass rod outer: developed polymer
3. Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling;
parking brake for the flexible rod control.
4. Copper wire inside is optional, which is for tracing easily or other professional usage.
5. Rolling bearing cage for mobility is strong and easy to use.
6. Feed device allows rod in and out smoothly
7. Rustproof bull-nose pulling tips with diverse accessories.
Feature
1. Light weight, durable, good resistance to chemical and corrosion.
2. High tensile strength and bending properties to make it go through narrow pipes easily.
3. good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not
be affected by temperature
4. Rod jacket: developed composite materials, hard, smooth and wear-resistant.
5. meter marks: available
6. Rod colors: yellow, red, green, blue orange or other colors are optionalSize: Rod Length (m): 1-1000m Rod Diameter: 3mm-18mm, we will accoridng the length and width to choose the suitable frame. if you have other special required of frame, please tell me , we accept customized.
Frame type
Frame:
1. Equipped with brake device, the rotating or stopping of the rod can be easily realized just by turning hand. Tilting type
handle, convenient for pushing and pulling.
2. Guide roller and fixed ring: fix the rod end; protect the rod jacket from being scratched.
3. Frame color: black, other colors are available.Frame type:
Packing: by film and carton. please check the picture.
FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
