Agricultural Machinery Rear Pto Multi Hydraulic Verge Flail Mower

Product Description

Product Parameters

Specification: 3 point U-shape linkage Graphite casting iron gearbox Tractor power required: 25-55hp With CE certificate

Model	EFDL-105	EFDL-115	EFDL-125
Structure Dimension(mm)	1365×1355×836	1365×1355×836	1365×1355×836
Weight(Kg)	210Kg	225Kg	240Kg
Cutting Width	1050mm	1150mm	1250mm
PTO Input Speed	540r/min	540r/min	540r/min
Number of blades	72	78	78
Power Required(Min/Max)	20-25HP	20-25HP	20-30HP

Model	EFGL-125	EFGL-135	EFGL-150
Dimension(mm)	1400×1545×840	1500×1545×840	1650×1545×840
Weight(Kg)	300 KG	320Kg	350KG
Cutting Width	1250mm	1350mm	1500mm
PTO Input Speed	540r/min	540r/min	540r/min
Hammer blades( normal)	24	28	28
Y shape blades(option)	48	56	56
Power Required	25-45HP	30-50HP	35-55HP
Angle	-60°~ +90°	-60°~ +90°	-60°~ +90°
Packing size(mm)	1450*880*700	1550*880*700	1700*880*700

Product Detail


Product Detail
Detailed Photos

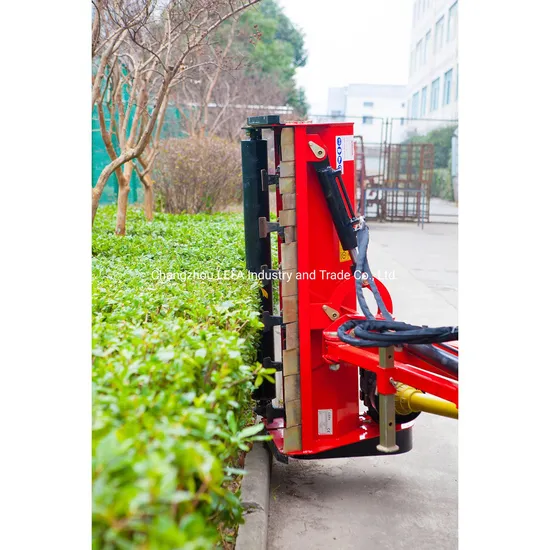

Performance and Advantage Transmission: By sturdy toothed belts. It has hydraulic cylinders to adjust the right and left movement and turn over the body. Gearbox is made of graphite casting iron. Material performance is better. Not easy broken. After dynamic balance test, the blade axle can run stably at high speed, with lower noise. The blades have more quantity, bigger density and higher mowing efficiency. The roller is equipped with bearing on both ends, so it can run more flexibly, without stronger wearing. Y shape blades and hammers are optional, to meet the needs of different customer. The body can be turned over, so it has a wider range of application.
Company Profile

Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Our company was established since 2003 with Hanma Industry Company.
Our main products include rotovator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato harvester/ planter and Japanese tractor parts, etc. Due to our super International quality standard and rapid & excellent after-sales service, LEFA machines are greatly popular in various markets around the world, and already reached to Europe, North America, South America, Australia, almost covers 80 countries in World.
LEFA always believe that we will take better farming life to you by top-quality laser cutting machine & CNC bending machine & professional paint-spraying & strong welding.
Packaging & Shipping

Packing & Shipping
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2. The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.

Certifications
FAQ
Q1. How to buy Flail Mowers?
Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm
Q2.How long is the delivery date for Flail Mowers?
A:In general, we can ship the goods within 30-45 days after receiving your payment. Of course, it also depends on your quantity.
Q3. How can I get to your factory to buy Flail Mowers?
A:We are located in Changzhou, only one hour's distance to Shanghai or Nanjing. You can fly to Shanghai/Nanjing/Changzhou Airport , the transportation is very convenient
Q4.Do you have stock for Flail Mowers?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q5: What's your main products?
A: Our products are covered almost all farm machines and Japanese tractors parts, we can meet your any demands.
Q6. What is your terms of payment?
A: T/T, L/C, Paypal, Western Union
