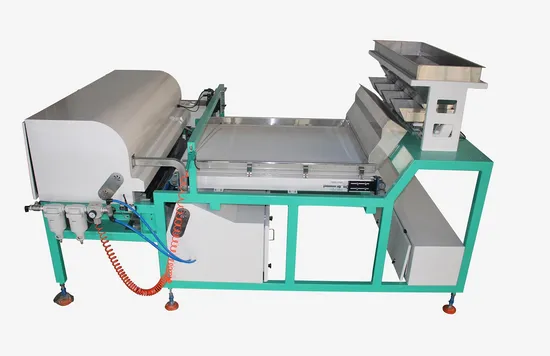

New Model CCD Conveyor Type Color Sorter Machine Color Selection

Product Description

Product Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
OUR COMMITMENTS

Focus on the field of color sorting and lead the industry standards; Create unlimited possibilities.
Analyze every detail and select every raw material.Multi-function,multi-purpose,widely used for rice,grain,cereal, plastics,etc.
Examples of color sorting The targeted sorting technology ensures no defect of light yellow would be missed from a million grains of rice.
Standard edition with the Spectrum Confocal 2.0 removes glass, desiccants, transparent plastics and motley plastics.
Flagship edition with the InGaAs Infrared system custom for rice sorting eliminates foreign materials.
CCD color sorter machine core parts:
FEATURES 1:
5400-pixel CCD camera makes sure that, it is able to recognze more accurately,analyze more quickly and sort more precisely
The highest resolution is as high as 0.02 mm-2, which can accurately identify small defects and spots in the material.
FEATURES 2:
Imported high-quality solenoid valves makes machines work more stably for longer time. The new type of high frequency valve allows low consumption of electricity , high durability,and easy maintenance. FEATURES 3:
Humanized touch panel,which is easier to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly. It is also able to support for multiple languages, preservation and switching of multiple color selection mode FEATURES 4:
American ultra-high speed FPGA processor, 3D intelligent identification technology.Intelligent system with self-learning,self-operating Powerful image processing algorithm can accurately identify the color and shape of materials.
Technical Parameter

Model	6SXZ-64	6SXZ-128	6SXZ-192	6SXZ-256	6SXZ-320
Chutes No.	64	128	192	256	320
ProductOutput(T/H)	0.5-1.5	1.0-2.5	2.0-4.5	3.0-6.5	3.5-8.0
SortingAccuracy(%)	≥99.9	≥99.9	≥99.9	≥99.9	≥99.9
OptimizedCarryover(Bad:Good)	≥8:1	≥8:1≥8:1	≥8:1	≥8:1	≥8:1
Weight(KG)	320	510	690	870	1050
Minimum Identification	0.03	0.03	0.03	0.03	0.03
Power(KW)	1	1.5	2	2.5	3.5
Power Supply(V/Hz)	AC220/50	AC220/50	AC220/50	AC220/50	AC220/50
Dimension(L*W*H)mm	910*1476*1629	1414*1536*1726	1724*1536*1690	2085*1536*1690	2400*1536*1690

NOTE:
1.The above data is based on 5% contamination Coarse Cereals material.The real output depends on different materials and contamination.
2.If products update,no further notice.Please refer to the real machine.
In customer site show :
Exhibition:
Packing&Shipping
Machines will bew wrapped in professional seaworthy wooden cases
Package size will depend on each model size.
After Sales Service
We will test your products at your plant, training your stuff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
We provide lifelong software upgrade services for our customers for free.
From the date of purchase machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings).
Engineers available to service machinery overseas, we also can train technical stuff for customers.
Company Introduction
Hefei Branagh Photoelectric Technology Co.,Ltd. is a high-technology firm, which combined with design, manufacture and selling, Our firm is dedicated to providing high reliability, high quality, safety and easy-to-operate sorting machines for customers in the field of food and industrial.We have a team that is determined to make progress and keep innovating to form a business model that is oriented toward quality, efficiency ,and customer satisfaction
Through countless hardwork, we serve customers from all over the world. We are well-established in both domestic and foreign markets. Our products sold well in our country and exported to Asia ,Africa, Europe, America,Australia,more than 80 countries.
Now we are enjoying the high reputation in manufacturing circle.We would be pleased to enter into business relations with you!

Certificates and Patents
FAQ:
1.Q:How about engineers service overseas?
A:Engineers available to service machinery overseas.
2.Q:How to use the machine?
A:We will supply customer the installation catalog or video online.We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3.Q:How about the sample machines for testing?
A:Sample sending for testing is welcomed.Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard).We send our video to you.
4.Q:How about the guarantee period?
A:One year.
5.Q:Will you accept L/C as payment?
A:L/C ,T/T is OK.
6.Q:Do you have any other spare parts for the customer?
A:Yes,we will supply you some spare parts.
7.Q:Which machine will work together with our color sorter which you can supply?
A:Air compressor,Air tank,Air filters,Air dryer,Light sources,Cleaning brushes,etc
