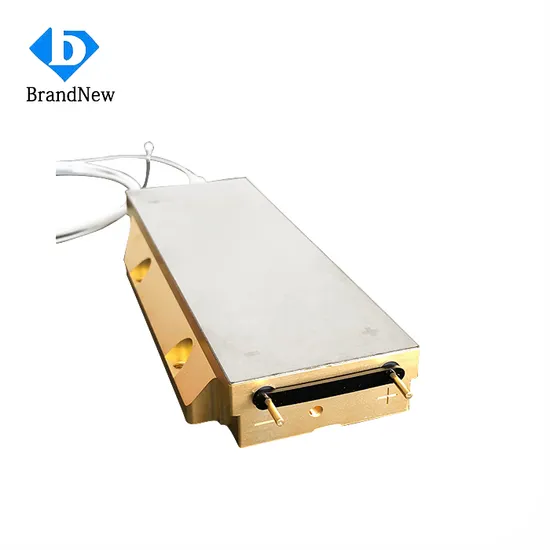

808nm 170W Multi-Mode Ld Fiber Coupled Diode Laser Module OEM

808nm 170W Multi-Mode Ld Fiber Coupled Diode Laser Module OEM

US$1,000.00-2,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
FC808DL170
Center Wavelength
808nm
Output Power
170W
Fiber Core Diameter
200um
Warranty
One Year
Origin
China

Product Description

808nm 170W Multi-mode LD Fiber Coupled Diode Laser Key features:
Highest power 170W output at 808nm
Hermetically sealed, electrically isolated case
Multimode fiber 200um, NA 0.22
High brightness and high output beam quality
High reliability, stability and long lifetime

Specification Item No.: FC808DL170
Optical
Center Wavelength 808nm
Wavelength Tolerance ±5nm
Output Power 170W
Spectral Width FWHM 4.5nm
Slope Efficiency 15W/A
Fiber
Fiber Bend Radius >60mm
Fiber Core 200um
Fiber Length 1.5m
Fiber Numerical Aperture 0.22NA
Fiber Connector Bare
Electrical
Operating Current Iop 11A
Threshold Current Ith 1.0A
Operating Voltage Vop 33.5V
Power Conversion Efficiency 45%
Thermal
Operating Temperature 15~35ºC
Storage Temperature -20~70ºC
Wavelength Temperature Coefficient ~0.3nm/ºC
Dimension
About us Hangzhou Brandnew Technology Co., Ltd.
Founded in 2011, BrandNew, the laser diode company, manufactures high-power diode lasers and systems in a wide range of output powers and wavelengths including fiber-coupled, stack bar lasers and plug and play lasers.
Cooperated with Institute of semiconductors Chinese academy of sciences and Zhejiang University, Today, over 60 technicians and 2 scientists, 20 technicians are with PHD degree. Production space is 10000 Class Lab Clean Room with 2000 square meters. Turnover per year is more than 10M US dollars.
BrandNew's strengths are in talent employees, quality engineering,Process control, product development and volume manufacturing.
Core Competency
Diode Packaging Beam Shaping
Reliability Testing Efficient Cooling FAQ Can you provide technology supports?
Yes, we have a professional technology supporting team for your timely services.
What about the delivery?
We can offer the door to door services by air, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX
What is the lead time?
Normally 3-5 days. Customized products need 15 working days.
Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available

What is your terms of payment?
T/T or Western Union, for your choice.
Do you offer guarantee for the products?
Yes, all products have been tested before shipping out.
Lifelong technique support. One year warranty.
