Conveyor Belt/Wire Mesh Belt/ Flex Flat Belt/Galvanized Wire Belt

Product Description

Anping Leshang Wire Mesh Products Co., LTD manufacture different type stainless steel wire mesh belt
The different kind of belts include Balanced Belts, Double Balanced belts, Gratex Belts, Duplex Belts, Compound Balanced Belts, Flat Wire Belts and Flat Flex Belts. These belts are specially manufactured in spring steel, galvanized, stainless steel material etc. The size of the belt can be customized within the maximum range possible, kindly refer to specifications below.
Typical Applications:
In food processing, these belts are used in washing, baking, de-watering, blanching, cooling, freezing, pasteurizing and de-palletizing.
In glass & ceramics, this finds wide use in firing decorating, enameling and annealing, and for curing fibre glass. In electronics, this can be used for glass-to-metal sealing, thick-film firing and drying of printed circuit boards. In metal working, the range is from general conveying to heat-treating, quenching, calcining, annealing and related processes.
Conveyor belts are made by wire or metal strap, in different linked shapes and form a flat weave, load bearing, flexible. The size and thickness is available as per specification.
according to diffferent hole type, the wire mesh belt are divided into below type:

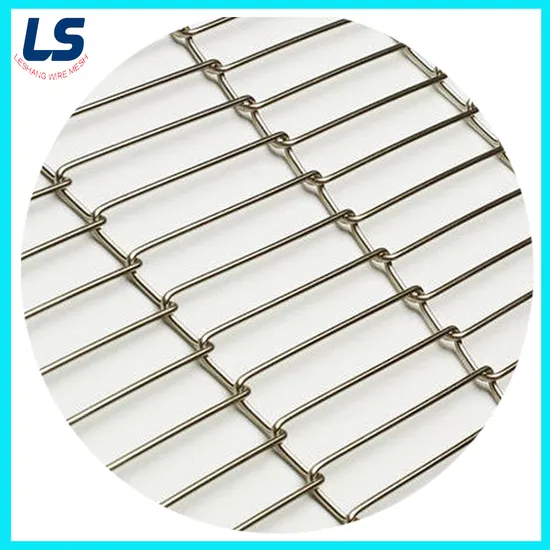

1. Flat-Flex conveyor belts offer numerous benefits that increase productivity, help contain costs and improve your overall product quality, including:
Feature :The largest proportion of open-mesh area available- up to 86%Easy to clean, clean-in-place designNo-slip, positive driveVery low belt massSmallest diameter end rolls and drive rollsPositive driven for accurate trackingUSDA AcceptedMaterial: the standard is 304 stainless steel. Other materials available include: 302 stainless steel , 310s stainless steel , 316 stainless steel, various carbon steel, and high temperature performance materials.
the edges have single loop and double loop , the middle space can have different size as below picture showthe flat flex also can be made in sector which used for corner conveyor belt for quotation, the flat flex wire belt should supply the below information:
1. material
2. the total width and how many space per width
3. the length
4. the attached drawing data
Flat-Flex is an available option for most Flat-Flex belts. This technology eliminates the possibility of the belt edge catching and tangling.
reference flat flex belt speicification

size	material	typle	space *section	rod ptich(mm)	wire dia	price(usd)
length20m xwid0.613m	ss304	wings(4.5mm*2)	67*9	10	1.6	27/meter
length20m x width0.613mm	ss304	wings(9.5mm*2)	85*7	14.5	2.5	28/meter
length20m xwid0.214mm	ss304	wing5.5mm	66.5*3	9.5	1.6	18/ meter

2.BALANCED WEAVE BELT
The predominant choice in the conveyor belt industry. It is our most versatile belt used in a variety industries. Balanced weave belts are a series of left and right hand wire mesh spirals joined by a connecting rod or crimped rod. These belts can be made from different alloys such as 304ss and 316ss. Some balanced weave belts are positively driven by a sprocket or a pinroll. Balanced weave belts can be manufactured to match new or existing pinrolls and are available in a wide range of specifications
detail of the balance weave belt picture
for quotation: the flat flex wire belt should supply the below information:
1. material? if need the sprocket and the sprocket size?
2. the total width and length
3. the attached drawing data
packing:
3.Stainless Steel Herringbone Conveyor Belt
Stainless Steel Herringbone Conveyor Belt is also called compound balanced belt, it is a variation of balanced weave belt, right hand and left hand weave forms a very dense and smooth belt with most rod straight and some crimped. The belt is perfect to convey small products because of high dense mesh, such as nuts, bolts, screw, nail, cookies, chemical grain etc.
Features:
1. Positive drive, smooth running;
2. Little pressure on wire mesh fabric;
3. Stands temperature from -55 oC to 1150 oC;
4. Side guard and flight are available;
5.Material:carbon steel, galvanized steel, stainless steel, weathering steel, high temperature steel etc.
4.Honeycomb belting, also known throughout the industry as Flat Wire belting, is a straight-running belt with an extremely high strength-to-weight ratio. It is available in a wide variety of aperture configurations to suit applications as diverse as casting, baking, drainage and packaging.
Honeycomb is constructed from formed flat wire strips connected by cross rods running through the width of the mesh. The rods are finished with either welded button edges or hooked edges.
It is a strong, lightweight, positively driven belt. A large open area makes this belt particularly suitable for processes such as washing, drying, cooling, cooking.
Open mesh construction for quick drainage and free air circulation
Flat carrying surface
Easily cleaned
Eaily Joint

goods picture:
packing of honeycomb wire mesh belt
5.Stainless Steel Chain Plate Metal Conveyor Belt
Stainless steel (carbon steel)chain plate, perforated metal chain plate, chip conveyor chain plate, cleaning chain plates, flat top chain plate, engineering plastic chain plate and keel chain plate etc.
Plate belt is a very robust belt that is made of stainless steel and driven by sprocket. Pefect for conveying small products, smooth running, easy to maintain, durable, constructed of plates or hinges kinked together by means of cross rods. The belt is almost equipped with side chains the chains are secured by a ring welded at the cross rod ends.
Features:
1) Open mesh construction for quick drainage and free air circulation.
2) Smooth, flat surface.
3) Easily cleaned.
4) Easy replacement of damaged or worn sections.
5) Endless splicing.
6) Economical versus alternative metal conveyor belts.
7) High strength.
Application:
It is widely used in food, canned food, medicines, beverages, cosmetics, motorcycle assembly line, animal slaughtering production line, washing supplies, paper products, condiments, dairy and tobacco automatic transmission, distribution, and after the packaging line conveyor.
Please note below Parameters showed on the next picture when you ask for a quotation:
1. Overall length and width.
2. Pitch.
3. Roller diameter and rod diameter
4. Opening size.
5. Material and other requests.

packing of the chain plate conveyor belt:
