US$6,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Table Travel (X/Y/Z)
900/320/400mm
Transport Package
Wood Case
Specification
GS CE ISO9001 Rohs
Production Capacity
100 PCS/Month
Packaging & Delivery
Package Size
2300.00cm * 1850.00cm * 2000.00cm
Package Gross Weight
2400.000kg
Product Description
Product Description

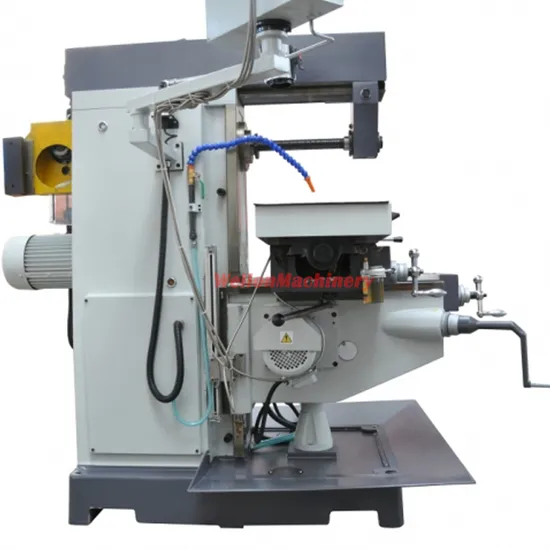

Horizontal Knee-Type Milling Machine with Vertical Milling Head
Detailed Photos
Product Parameters
1.Our proprietary designs and exacting manufacturing specifications insure that every machine we sell meets
or exceeds our customers' needs and expectations.
2. The foundation of our commitment to deliver top-quality machines to our customers is our 100% inspection
Quality Control process using state-of-the-art optical measurement systems to support both manufacturing and
product design.
3. We believe that this is the only way to ensure that we deliver the finest products to customers who demand
precise, reliable machines in their applications.
4.Vertical milling head is standard accessory with the speed range of 0-600rpm.
Technical Parameter:
Model | XL6036B |
Table size | 1250x360 mm |
Table travel(x/y/z) | 900/320/400 mm |
Table load capacity | 400 kg |
Spindle taper | 7:24 ISO50 |
Distance from horizontal spindle to table | 0-400 mm |
Distance from horizontal spindle to arm | 175 mm |
Spindle speed range | 60-1800(12 steps) |
Range of longitudinal, cross travel | 15-370(8 steps)(max.540) |
Vertical up-down(z axis) speed table | 590 |
T-slot NO./width/distance of rotary table | 3/18/80 |
Cantilever travel | 500 mm |
Main motor | 4 kw |
Motor for rapid device of table | 0.75 kw |
Motor of lifted of table | 1.1 kw |
Motor of cooling of pumps | 90 w |
Speed of cooling of pumps | 25 w |
N.W/G.W. | 2100/2400 kg |
Overall dimension | 2220x1790x1700 mm |
Standard accessories:
Draw bar
Tool holder
Mill arbors
Coolant device
Oil tray
Lubrication system
Work lamp
Tools
Optional accessories:
3-axis digital readout
Machine vice 160mm
Clamping kit set 58-pcs
LED Worklamp
New type aluminum arm support
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
