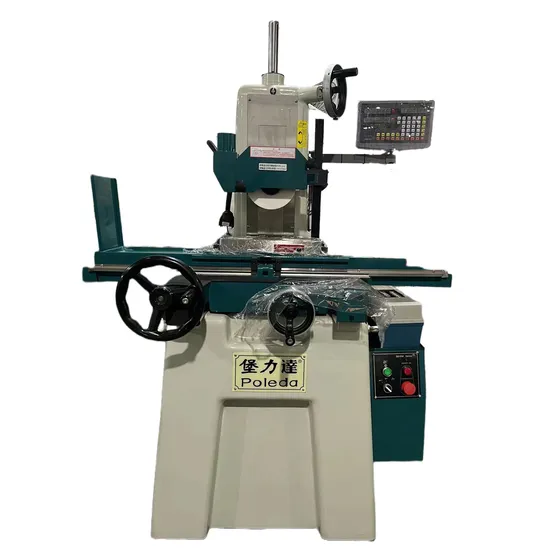

618/M618/618s/618h Precision Surface Grinding Machine for Multifunctional Grinding Applications

618/M618/618s/618h Precision Surface Grinding Machine for Multifunctional Grinding Applications

US$4,880.00
1-19 set
US$2,850.00
20+ set

Basic Info.

Model NO.
M618/618/618S/618H
Type
Surface Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Frame
Specification
1350*1050*1850mm
Trademark
POLEDA
Origin
China
HS Code
84601100
Production Capacity
200PCS/Month

Product Description

Product Description
Product Parameters
Mechanical Properties
Machine Structure: Crafted from premium high-grade cast iron, the main castings of the High Precision POLEDA Multifunctional Grinding Machine undergo a meticulous annealing treatment to eliminate internal stress. This ensures unwavering high precision, exceptional rigidity, and longevity. Slide Way: Both the left and right and front double V slide ways are coated with wear-resistant resin TURCITE-B and meticulously precision-scraped to ensure smoothly gliding and wear-resistant surfaces. This feature is ideal for forming and grinding applications.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing, which operates with low noise and no vibration. This spindle delivers high torque at high-speed rotations, making it suitable for heavy cutting and various forming grinding tasks.
Automatic Lubrication System: The machine features a sophisticated circulating automatic lubrication system. Upon starting the main spindle, lubricating oil circulates immediately, providing forced lubrication to each screw and slide. This significantly reduces the wear of the slide ways. An oil mirror is strategically installed above the column to monitor the lubrication status effectively.
Product Name
Product Name Grinding machine
Product model M618/618/618S/618H
Product technical parameters
1 Table size 150*450MM(6*18'')
2 Maximum grinding length 475MM(18-3/4'')
3 Maximum grinding width 160MM(6-1/3'')
4 Distance between spindle center and table surface 350-400MM(13.8-15.7'')
5 Standard disk size 150*350MM
6 Left and right feed/manual stroke 485MM(19'')
7 Front and rear feed/manual stroke 160MM(7'')
8 Hand wheel feed (per turn) 5MM(0.2'')
9 Hand wheel feed 0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale 0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture) 180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ) 2800RPM
13 Spindle motor 1.5HP
14 Weight (approximate) 800kgs
15Machine size (L * W * H) 1350*1050*1850MM
Grinding machine configuration Accessories name and specification quantity

Standard parts for machine tools
1,Grinding wheel and flange 1
2,Wheel removal wrench 1
3,Hexagonal wrench 1
4,Leveling screws and foot pads 1
5,Grinder guide oil 1
6,Toolbox and adjustment tools 1
7,Hanging rings 1
8,Grinding wheel 1
Special parts for machine tools 9,Grating electronic ruler 1
10,Detail disk 1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac
