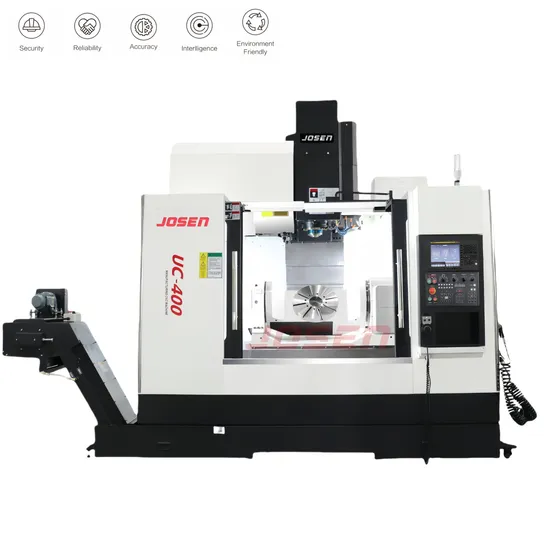

Vmc400 5 Axis Worktable CNC Milling Machine for Precision Manufacturing Aerospace Automobile Metalworking Manufacture

Vmc400 5 Axis Worktable CNC Milling Machine for Precision Manufacturing Aerospace Automobile Metalworking Manufacture

US$80,000.00-85,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
VMC400
Type
Tool Milling Machine
Object
Tool/Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001, ISO 14000
Condition
New
Electricity Demand
30kVA
Gross Weight
7700kg
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
4220*2680*3070mm
Trademark
Josen
Origin
Changzhou, Jiangsu, China
HS Code
8457101000
Production Capacity
3000set/Year

Packaging & Delivery

Package Size
432.00cm * 278.00cm * 342.00cm
Package Gross Weight
8700.000kg

Product Description

VMC400 5 Axis Worktable CNC Milling Machine for Precision Manufacturing Aerospace Automobile Metalworking Manufacture
Product Description
Basic Info
Number Name Number Name
1 FANUC 0I-MF CNC controller 10 Chip pan and water tank
2 Full cover shroud 11 Transformer
3 Automatic lubricant system 12 Spindle air curtain dust protection system
4 Ground bolts and spacers 13 Mechanical, electrical and operating instructions
5 Tool-box 14 Rigid tapping
6 Working light 15 Electrical box heat exchanger
7 Warning light 16 Machine cleaning water gun
8 M30 automatic power-off system 17 Three-axis slide telescopic shield
9 Portable chip blowing air gun 18 30-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Specification
Description / Machine Model Unit UC-400
Travel
X-axis travel mm 700
Y-axis travel mm 620
Z-axis travel mm 600
Distance from nose of spindle to table surface mm 20-620
Working table
Working table size (X*Y) mm Φ400
Table T-slot size (width * number of slots * spacing) mm 14H7/8*45°average
Max. loading capacity of working table kg 255(Horizontal)200(Slanted)
Spindle
Spindle motor (continuous/30 minutes) kw 11/15
Spindle speed rpm 10-12,000
Spindle Cooling method Spindle oil cooler
Spindle inner taper bore BT40
Three axis
X/Y/Z axis motors kw 3/3/3
Feed rate
Rapid feed rate (X/Y/Z) mm/min 36,000/36,000/36,000
Fastest cutting feed rate mm/min 1-10,000
Tool change system (optional)
Tool magazine capacity (standard/optional) set 24/30
Tool magazine form Arm type
Latin form MAS-P40-1(45°)
Maximum tool diameter of adjacent tools Ø80
Max. tool diameter of empty adjacent tool Ø150
Maximum tool length mm 300
Maximum tool weight kg 8
Machine accuracy
Three-axis laser positioning accuracy (JIS6338 actual measurement method)
Positioning accuracy (full stroke) mm ±0.005
Repeat positioning accuracy (full stroke) mm ±0.003
System
Software TCP4+1
Controller FANUC 0I-MF
Oil pressure system
Water tank capacity liter 250(front drainage)270 (rear drainage)
Pneumatic pressure requirements kg/cm2 6
Electricity
Power Specifications AC380±10%,3 phase,60Hz/50Hz
Electricity demand KVA 30
Other
Chip removal method Front crawler type
Floor space (L*W) mm 4,220*2,680(front row)/2,780*3,150 (rear row)
Machine height (maximum) mm 3070
Machine weight T 7.2

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
