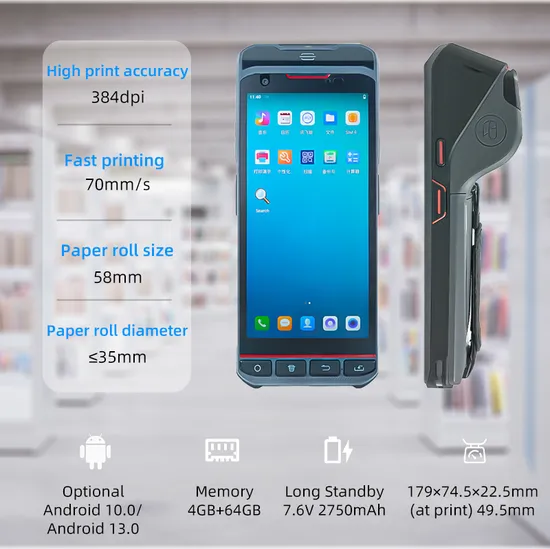

XTIOT XT8980A China Wireless QR Code Device PDA Barcode Scanner For Inventory Tracking

Product Description

XTIOT XT8980A China Wireless QR Code Device PDA Barcode Scanner For Inventory Tracking Detailed Photos
Product Parameters

XTIOT XT8980A Android Data Collector Terminal with Printer Specification
System Parameter
Operating System							Standard: Android 10.0 Optional: Android 13.0
Processor							Cortex-A53 Octa core 64-bit 2.0GHz high-performance processor
Memory							Standard: 2G+16G Optional: 4G+64G
Expanding Memory							Micro SD(TF) Supports up to 256GB
Expansion Slot							Micro SIM card * 1, Equipped with 58mm thermal adhesive printer, print width 35mm, support adhesive printing, black label printing.Equipped with 58mm thermal adhesive printer, print width 35mm, support adhesive printing, black label printing.TF card * 1, PSAM*2 ( Optional )
Display Screen							5.5 inch IPS color display with resolution 720 * 1440, Screen brightness >500cd/m2
Touch screen							Supports multi-touch
Camera							Rear camera: 13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting Front camera: 2MP color camera
Battery							Rechargeable polymer battery 7.6V 2750mAh (Equal to 3.8V 5500mAh), removable
Charging Time							3-4 hours, using standard power adapter and data cable
Standby Time							>350 hours
Speaker Volume							>93db (test distance 10cm)
Audio							Speaker (mono), Microphone, Receiver
Sensor							Gravity sensor, Light sensor, Proximity sensor, Vibration motor
Keyboard							Main keys: Home key, Delete key, Back key, Confirm key Side keys, Silicone keys: Power key, Volume +/- key, Scan key * 2
Barcode Reading							1D and 2D
Communication Interface							Type-C USB x 1 Support OTG function
Communication Parameters
Communication							2G: GSM(850/900/1800/1900MHz) 3G: WCDMA(850/900/1900/2100MHz) 4G: FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
WIFI							Double frequency 2.4 GHz and 5 GHz, support the IEEE 802.11 ac/a/b/g/n/d/e/h/I/j/k/r/v agreement
Bluetooth							Support Bluetooth 5.0+BLE, transmission distance 5-10 meters
GPS							Supports GPS, Galileo, Glonass, Beidou
Thermal Sticker Printer
Printing Speed							70mm/s
Print points							384 dots
Paper Slot							58mm
Paper Diameter							35mm
Paper Type							Support for Sticker / label black mark printing
NFC (Optional)
Working Frequency							13.56MHz
Protocol Standard							Support ISO14443A/B, 15693 agreement
Working Distance							2cm-5cm
Environmental Parameters
Operating Temperature							-20ºC - 55ºC
Storage Temperature							-40ºC - 70ºC
Humidity							5%RH--95%RH (no condensation)
Drop Test							6 sides Supports 1.2 meters drops on the marble within the operating temperature
Rolling Tests							0.5m rolling for 6 sides, can still work steadily
Class of Protection							IP54
Appearance Parameter
Size/Weight							Size: 179mm*74.5mm*22.5mm (Thinnest) 49.5mm (Print) Weight: 420g
List of Accessories
Standard Accessories							XT8980A*1, Adapter *1, Type-C cable *1

Our Advantages
Company Profile
Packaging & Shipping
After Sales Service
FAQ
Q1: What' the communication port?
A1: Default is USB, RS232 and TTL is for optional.
Under USB port, there are USB-keyboard, and USB-virtual serial port.

Q2: What kind of barcode can the scanner read?
A2: 1D and 2D barcode.
1D barcode including EAN-8, EAN-13, Code 128, UPC-A, UPC-E, Code 39, Code 93, Matrix 2 of 5, Standard 2 of 5, Industrial 2 of 5, Codabar, MSI Plessey, Plessey, GS1 DataBar, ISBN, ISSN, ISBT 128, etc.
2D barcode including QR code, PDF417, Micro QR code, Datamatrix, etc.

Q3: What's the size?
A3: We can send the 2D drawing and 3D file of the scanner, which contain all dimensions of the scanner.

Q4: What's the baud rate?
A4: Default baud rate is 9600. You can set the baud rate by using user manual, baud rate from 9600 ~ 115200 (Max).

Q5: Can I add prefix and suffix?
A5: Yes, support adding 10 characters prefix/suffix.

Q6: Can I use the scanner at outdoor?
A6: It can work under sunlight, but it's not waterproof, to use the scanner at outdoor, you will need to add a cover for the scanner to protect it in rainy days.

Q7: Can the scanner work in high temperature environment?
A7: The working temperature is -20ºC ~ 60ºC.

Q8: Is there LED lights?
A8: Yes, there are 4 LED lights.

Q9: Can you customize the cable?
A9: We provide custom service for cable length, cable PIN assignments, etc.

Q10: Do you have product certificates?
A10: Product has CE, ROHS, FCC certificates.
