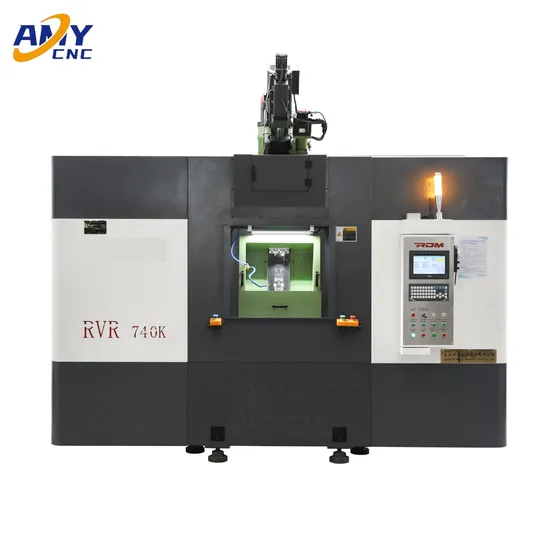

Automatic Rvr-740K High-Precision CNC Rotary Transfer Machine Slant Metal Lathe Tools for Brass Valve Production

Product Description

High precision and efficient hydraulic hybrid waterwheel type combined machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature
Applicable to 1/4 to 1" brass ball valve, gate valve, globe valve safety valve andother valve hole reaming,tapping and machining exhibition.
One clamping can complete the valve body three direction processing, saveprocessing time,reduce labor costs,
The function of the tool of the middle hole can be opened or closad according to theprocessingrequirements.
According to actual production estimates, 6.6-9 seconds.*Power head according to the processing requirements of the workpiece,can beinstalled up to 19
The whole machine yR950/8-8 Power Group.
Product Parameters

ltem			Parameter
Capability
Number of spindle			6~9Spindles
Processing materia			Brass
Spindle speed	Drilling spindle		1340rpm
	Tapping spindie		680rpm*
Travel		Drilling spindle	<110mm
		Tapping spindie	<60mm
Control systerm			(Programmable logic Controller)
Hydraulic pressure			1.5~3.5Mpa
Motor drive mode		Drilling spindle/Drilling&facing spindle motors	Contactor
Tapping spindle motors			Contactororinverter(AC drive)
power supply			AC380V/50HZ;3PhaseAC380V/S0HZ

Detailed Photos

Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
