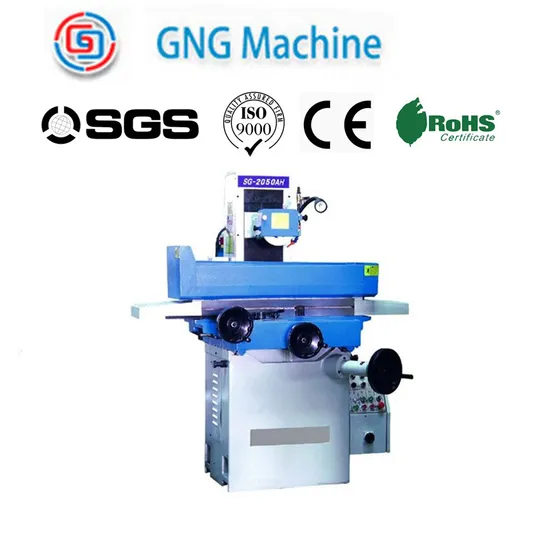

Multi-Function Surface Grinder Machine
| US$6,398.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG2050H
Precision
Precision
Application
Metal
Type for Grinding Machine
Special Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Semi-Dry Grind
Certification
CE
Condition
New
Power(W)
1500W
Table Size(Wxl)
200X400
Max. Longitudinal Travel
510mm
Max. Cross Travel
238mm
Max. Distance From Spindle Center to Tab
450mm
Transport Package
Ply Wood
Specification
CE
Trademark
can use customer brand
Origin
China
HS Code
84660900
Production Capacity
100/Per Month
Product Description
Min. Order Quantity: 1 Set/SetsSupply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 238
Max. Grinding Length: 510
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SG2050-H
Voltage: 220V
Power(W): 1500W
Dimension(L*W*H): 1900X1720X2175
Weight: 1600kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Max. Width to be ground 238mm
Max. Length to be ground 510mm
Table size 200X400mm
| SG SGA saddle moving surface grinder | ||||||
| Item/Model | Unit | SG-2050H/AH SG-2050AHR SG-2050AHD | SGA-2550AH SGA-2550AHR SGA-2550AHD | |||
| table size(WxL) | mm | 200x400 | 250x500 | |||
| max. longitudinal travel | mm | 510 | 560 | |||
| max. cross travel | mm | 238 | 275 | |||
| max. distance from spindle center to table | mm | 450 | 450 | |||
| electro magnetic chuck size | mm | 200x460 | 250x500 | |||
| speed of table longitudinal movement | m/min | 7-23 | ||||
| table transverse movement | auto feed | mm/min | 0.1-8 | |||
| rapid speed | mm/min | 990 | ||||
| feed of handwheel | mm/div | 0.02 | ||||
| wheelhead vertical movement | auto feed | mm | ---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model) | |||
| rapid speed | mm/min | ---(H/AH model) / 460 (for AHR model) | ||||
| feed of handwheel | mm/div | 0.005 | ||||
| grinding wheel | speed | rpm | 2850(50Hz), 3450(60Hz) | |||
| eize(ODxWxID) | mm | 200x20x31.75 | ||||
| spindle motor | kw | 1.5 | 2.2 | |||
| hydranlic motor | kw | 0.75 | ||||
| cooling pump motor | kw | 0.04 | ||||
| elecating motor | kw | ---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor) | ||||
| cross feed motor | kw | 1.04 | ||||
| max. loading capacity of table(include chuck) | kg | 120 | 180 | |||
| total rated power | kw | 3 | 3.7 | |||
| height of machine | mm | 1675 | ||||
| floor space(LxW) | mm | 2050x1400 | 2300x1600 | |||
| Gross weight | kg | 1600 | 1800 | |||
| package dimensions(LxWxH) | mm | 1900x1720x2175 | ||||
