4-20mA Piezoresistive Pressure Sensor for Pressure Transducer

Product Description

SS316 Piezoresistive pressure sensor
Features
* Cost Effective* Chip from international famous brand, temperature compensation
* Gauge,sealed gauge and absolute
* Pressure range: 0kPa~35kPa…35MPa...100Mpa
* Constant current / Constant Voltage power supply
* Isolated construction, enable to measure various fluid media
* Φ19mm standard OEM piezo-resistive pressure sensor
* Full stainless steel 316L Application * Industrial process control·Level measurement ·Gas,liquid pressure measurement
* Pressure checking meter·Pressure calibrator ·Liquid pressure system and switch
* Cooling equipment and air conditioning system·Aviation and navigation inspection
Introduction

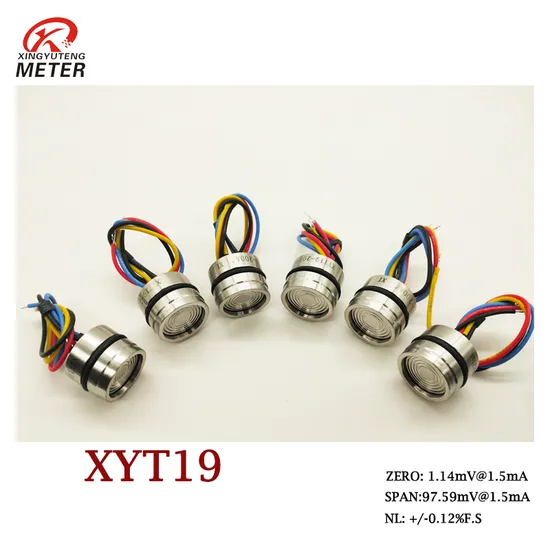

XYT-19 piezoresistive pressure sensor is manufactured in automatic mass production line. It is cost effective. XYT-19 outline,installation, dimension and sealing methods are similar to mainstream sensors of international famous brand They have high interchangeability. XYT-19 is widely used for pressure measurement of media which is compatible with stainless steel and Viton. Electric Performance

Power supply:	≤2.0mA DC; ≤10V DC
Electric connection:	100mm silicon rubber flexible wires
Common mode voltage output:	50% input (typ.)
Input impedance:	2kΩ~8kΩ
Output impedance:	3.5kΩ~6kΩ
Response (10%~90%):	<1ms
Insulation resistor:	100MΩ, 100VDC
Overpressure:	1.5 times FS
Construction Performance
Diaphragm:	stainless steel 316L
Housing:	stainless steel 316L
Pressure leading tube:	stainless steel 316L
Leading wire:	silicone-rubber flexible wire
O-ring:	Viton
Net weight:	35g

Environment Condition
Shock: no change at 10gRMS,(20~2000)Hz
Impact: 100g,11ms
Media compatibility: the gas or liquid which is compatible with stainless steel and viton
Basic Condition
Media temperature: (35±1)ºC
Environment temperature: (35±1)ºC
Shock: 0.1g(1m/s2)Max
Humidity: (50%±10%)RH
Local air pressure: (86~106)kPa
Power supply: (1.5±0.0015)mA DC
Company Profile
Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).
With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.
XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.
FAQ 1. How long will you reply me?
Normally in 1 hours, longest time wouldn't over 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal.
