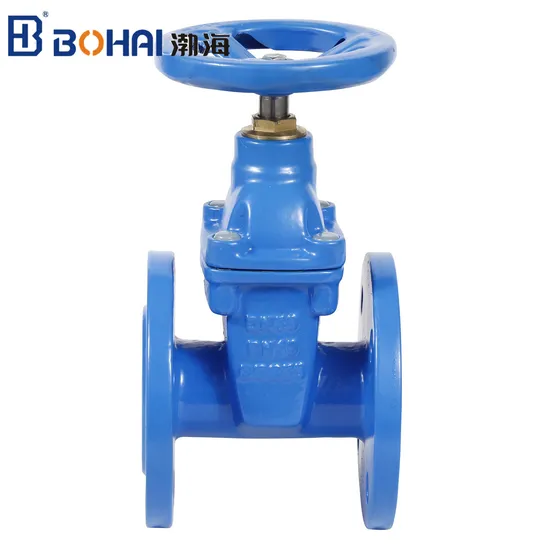

Russian Standard Manual Gate Valve with Wcb

Russian Standard Manual Gate Valve with Wcb

US$15.00 10 Pieces (MOQ)

Basic Info.

Type
Straight-through
Material
Cast Iron
Connection Form
Flange
Pressure
Ordinary Pressure
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Usage
Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control
Standard
Dinf4 BS5163
Application
Industrial Usage, Water Industrial Usage, Household Usage
Water-Using Valve
Gate Valve
Body Material
Ductile Iron/Wcb/Cast Iron
Connection
Flange Ends
Color
Ral5005/5015/5017 or Customer Required
Medium
Normal Temperature Liquid
Size
DN50-DN1200
OEM ODM
Yes
Original
Tianjin, China
Transport Package
in Polywood Case
Specification
DN50 -DN1200
Trademark
BOHAI
Origin
China
HS Code
8481804090
Production Capacity
50000 PCS Per Year

Product Description

Russian standard manual gate valve with stainless steel
Resilient Seated Gate Valves are designed to last long years of operation in many conditions.
With its bolted bonnet structure, EPDM covered wedge and hygienic coating, ready to meet the demand for potable water & sewage applications.
Design and manufacture standard CJ/T216-2005
Structural length GB/T 12221
Size of flange GB/T 17241.6(cast iron),GB/T9113.1(cast steel)
Test and inspection GB/T 13927
Product Features
1.GGG40/50 Ductile Iron Body & Disc allows high impact and streching resistance
2.With Full Bore design, ensures minimized pressure loss and increased energy efficiency
3.Maintenance free valve design
4.Fully EPDM vulcanised wedge maintains full stop of flow and can absorb smaller particules in the flow. (NBR coated wedge is optional)
5.Stainless steel stem with threads for high strength
6.Maintenance-free and corrosion-resistant multi stem O-rings ensures higher durability
7.Brass wedge nut provides fixation of the stem and low torques.
8.With isolated bonnet nuts, no risk of corrosion
9.Bidirectional use. Possible to install on horizontal and vertical pipelines with varied flow directions
10.Fixed wedge structures prevents vibrationWith precise machined stem, ensures low torque requirements during operation
11.Full coating on the body and disc internally & externally with an average of 250 microns. Higher coating thicknesses are available when required.
12.WRAS approved coating available upon request which meets hygienic requirements for potable water applications
13.For big size valves, balanced positioned lifting holes on the body ease transportation and installation
14.Suitable for vacuum conditionsSuitable for shut-off and isolation purposes.
15.Not suitable for regulation purposesElectrical actuator connection is done with an intermediate top flange arrangement
16.Suitable to use with above-underground applications.
17.Can be operated with handwheel, gearbox, actuator and spindle.
18.Hydrostatic test pressure for seat: PN x 1.1 , for shell: PN x 1.5 according to EN 12266-1.

Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
