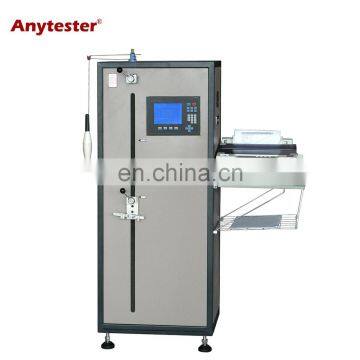

Single Yarn Tensile Strength Testing Machine

Product Description

Product Description
Product DescriptionHY061F Single Yarn Strength Tester is used to determine the breaking load and extension of single yarns and threads up to 500cN, 3000cN, 5000cN or 12000cN load range depending on choice of load cell.Application It is suitable for raw cotton, cotton roll, card sliver, etc.StandardASTM D2256ISO 2062BS 1932GB/T3916, 14344 Note: For more standards, please contact usFeatures1. Computer control, LCD display, easy to operate 2. Large speed range, 50~800mm/min settable 3. With two gauge lengths: 250mm and 500mm4.Automatically save data while sudden electricity failure 5.A dedicated printer can be provided to printout test data 6. The machine can also be connected with computer by using professional softwareSpecification ModelHY061F Single Yarn Strength TesterLoad range 12000cN max. (500cN, 3000cN or 5000cN optional)Gauge length 250mm±1mm, 500mm±1mmPre-tension range 1cN~100cNLoad error ≤±1% of display valueElongation range 220% max. under 250mm gauge 80% max. under 500mm gaugeTest speed 50mm/min~800mm/min (can be customized)Test times 1~200 times settable Linear density 1~999.9tex settable Power supply AC220V±10%, 50HzDimensions 550mm×450mm×1295mmWeight 120kg
