Double Spindle Swiss-Type CNC Precision Automatic Lathe Tc326m

Product Description

Double spindle Swiss-type CNC precision automatic lathe TC326M
Product Features:
Each axis uses imported high-precision linear quide,ball screws and precision bearings.
Use synchronous guide bush structure,realize high-speed and high-precision machining.
With guide bush and non guide bush mode,flexible switching to meet the needs of different processing technology.
Key components with qas sealing structure, oil and slag prevention, improving service life and stability. Select high torque motor, high rigidity and strength each axis slide and tool installation seat to meet the requirements of large cuting volume and high processing efficiency.
High scalability, with different tool quantities matched according to the process, resulting in high cost-effectiveness.
Multiple ER20 tools can be installed to increase the machine range.
Characteristic :

Model No.		TC326M-1	TC326M-2	TC326M-3	TC326M-4
Item No.		6 axis ,double spindle	6 axis ,double spindle	6 axis ,double spindle	6 axis ,double spindle
Specifications
NC system		SYNTEC 220TB	SYNTEC 220TB	SYNTEC 220TB	SYNTEC 220TB
Lathe rated power		16 kw	16 kw	16 kw	16 kw
Machining range
Maximum machining diameter		Ø32 mm	Ø32 mm	Ø32 mm	Ø32 mm
Maximum machining length (one-time clamping)With guide bush		310 mm	310 mm	310 mm	310 mm
Maximum machining length (one-timeclamping)Non guide bush		2D	2D	2D	2D
Main spindle power		4.4 kw	4.4 kw	4.4 kw	4.4 kw
Sub spindle power		3 kw	3 kw	3 kw	3 kw
Main spindle max through hole dia		Ø33 mm	Ø33 mm	Ø33 mm	Ø33 mm
Main/sub spindle rev speed		6000/6000 rpm	6000/6000 rpm	6000/6000 rpm	6000/6000 rpm
Sub spindle max clamping dia		Ø32 mm	Ø32 mm	Ø32 mm	Ø32 mm
Sub spindle max through hole dia		Ø33 mm	Ø33 mm	Ø33 mm	Ø33 mm
Max tool installed qty		23	24	25	26
OD Turning tool
Qtyx Model		6x16 mm	6x16 mm	6x16 mm	6x16 mm
Cross live tool
Cross live tool		3xER16+1Xer20	3xER16+1Xer20	3xER16+1Xer20	3xER16+1Xer20
Drilling dia		Ø13 mm	Ø13 mm	Ø13 mm	Ø13 mm
Tapping/Threading die dia		M8	M8	M8	M8
Live tool rev speed		5500 rpm	5500 rpm	5500 rpm	5500 rpm
Live tool power		1 kw	1 kw	1 kw	1 kw
End -face tool(Main spindle)
Fixed	Qtyx Model	5XER20	5XER20	4XER20	4XER20
	Drilling dia	Ø13 mm	Ø13 mm	Ø13 mm	Ø13 mm
	Tapping/Threading die dia	M10	M10	M10	M10
Live	QtyxModel	-	-	3xER16	3xER16
	Drilling dia	-	-	Ø10 mm	Ø10 mm
	Tapping/Threading die dia	-	-	M6	M6
	Live tool rev speed	-	-	5500 rpm	5500 rpm
	Live tool power	-	-	0.75 kw	0.75 kw
Back end-face tool(Sub spindle)
Fixed	Qtyx Model	4xER16	4xER16	4xER16	4xER16
	Drilling dia	Ø10 mm	Ø10 mm	Ø10 mm	Ø10 mm
	Tapping/Threading die dia	M8	M8	M8	M8
End face live tool		4xER16	3xER16	4xER16	3xER16
Side- Live tool		-	2xER16	-	2xER16
Drilling dia		Ø10 mm	Ø10 mm	Ø10 mm	Ø10 mm
Tapping/Threading die dia		M6	M6	M6	M6
Live tool rev speed		5500 rpm	5500 rpm	5500 rpm	5500 rpm
Live tool power		0.75 kw	0.75 kw	0.75 kw	0.75 kw
Rapid feed speed		18(X1/Y2) 24(X2/Y1/Z1/Z2) m/min	18(X1/Y2) 24(X2/Y1/Z1/Z2) m/min	18(X1/Y2) 24(X2/Y1/Z1/Z2) m/min	18(X1/Y2) 24(X2/Y1/Z1/Z2) m/min
Feed motor power		1 kw	1 kw	1 kw	1 kw
The power capacity		16 kva	16 kva	16 kva	16 kva
Air pressure device		0.6 mpa	0.6 mpa	0.6 mpa	0.6 mpa
Weight		3700 kg	3700 kg	3700 kg	3700 kg
Dimensions(LxWxH)		2550x1500x1900 mm	2550x1500x1900 mm	2550x1500x1900 mm	2550x1500x1900 mm

Standard configuration	Optional configuration
SYNTEC numerical control system	MITSUBlSHl numerical control system
Main pneumatic chucking device	FANUC numerical control system
Movable guide bush	High pressure pump
Synchronal rotary guide bush device	Oil mist collector
Live tool	Chip conveyor
Workpiece belt conveyor	Non guide bush
Y2 tool holder	Long wprkpiece collector

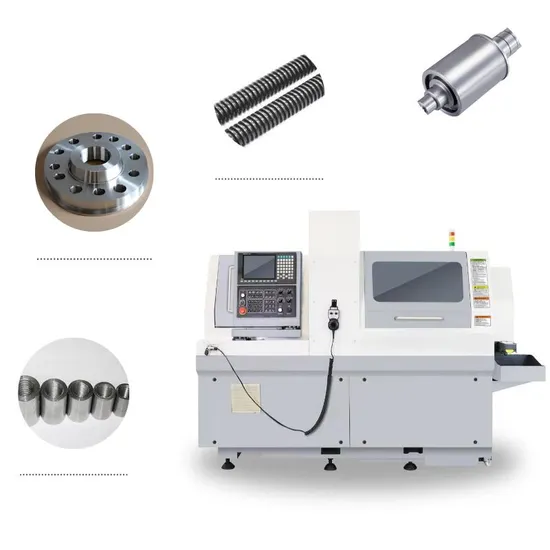

PRODUCT IMAGE:
