Manufacturer High and Low Orbit CNC Machine

Product Description

High speed high precision high and low orbit CNC machine
Product Description
Suitable for:
This machine tool is most suitable for processing fields: aviation equipment, optical precision parts, auto parts, electronic connectors, advanced button accessories, small valves, watch parts, threaded joints, etc. Good processing for small parts, precision parts and non-ferrous metals. Hardware parts: steel parts, stainless steel parts, copper and aluminum parts, Disk parts: precision shaft pin, shaft sleeve, spindle, ring Precision thread: high-grade thread joint, slightly dense spindle lock cap, tooth compound
Feature

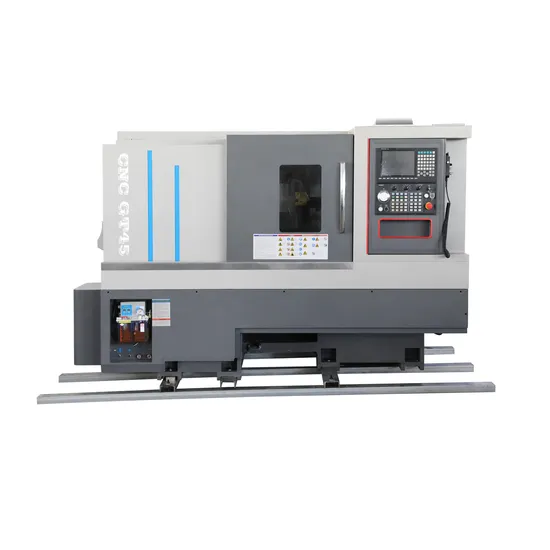

CNC-GT45 machine tool adopts integral high strength cast iron, which greatly enhances the overall rigidity and stability of the machine tool, and has the function of vibration absorption, reduces the tool loss and improves the workpiece quality. The machine layout is compact and reasonable, and its high speed, high precision, high rigidity and rich configuration provide users with high efficiency and high reliability in use. Suitable for stainless steel parts, aluminum parts, air conditioning refrigeration, household electrical, LED lighting, IT industry, precision instruments, hydraulic pneumatic, optical military and other industries batch product processing, with a high performance-to-price ratio.
1. CNC-GT45 machine tool adopts high and low rail 35° high and low rail layout, bed base integrated structure, which greatly improves the bending and torsional rigidity of the machine tool in the work, and the integrated bed base with high rigidity and high stability provides a strong guarantee for the high precision of the whole machine.
2. Cnc-gt45 CNC lathe standard configuration sleeve spindle. The main shaft bearing adopts Wuxi two-axis high-precision main shaft bearing, the maximum speed of the main shaft can reach 3000r/min, and the standard configuration of the main shaft drive is 7.5KW spindle drive motor.
3. Cnc-gt45 CNC lathe standard uses German Taiwan Yintai linear slide, ball screw, using Taiwan TBI/ Japan Fujiyue bearing can make the machine tool fast speed of 20-20m/min, greatly improving the processing efficiency.
4. Cnc-gt45 CNC lathe standard configuration for the section type Taiwan hydraulic servo 80 12-station turret,
5. Cnc-gt45 CNC lathe standard configuration for Taiwan CNC system, feed drive using servo motor.
Product Parameters

machinery specification	Given name	Units	CNC-GT45
Processing range argument	Maximum bed rotation diameter	mm	Ф550(diameter)
	maximum machining diameter	mm	Ф450(diameter)
	Maximum machining diameter on the tool holder	mm	Ф240(diameter)
	maximum machining length	mm	Ф450
Main shaft cylinder Chuck parameter	spindle nose	/	A2-6
	Spindle through hole diameter	mm	Ф66
	Maximum spindle speed	rpm	3500
	Spindle motor power	kw	7.5KW
	Hydraulic cylinder/chuck	/	8 inch hollow chuck
X/Z axis feed argument	X Motor power	kw	2.4
	Z Motor power	kw	2.4
	X-axis travel	mm	Ф250
	Z-axis travel	mm	Ф450
	The X/Z axis is moving fast	mm	20-20
	positional accuracy	mm	±0.003
	repeated positioning accuracy	mm	±0.005
	Slide type	/	rail line
Turret argument	business end of tool	taiwan	80-12 station hydraulic servo tower

Detailed Photos
hot selling product
https://haochenmachine.en.made-in-china.com/product/LQxRkgiVqXrh/China-CNC-Machine-Tool-Manufacturer-High-and-Low-Orbit-CNC-Machine.html?pv_id=1iesvasej27e&faw_id=1iesvbsdr200
Company Profile
Zhejiang Haochen CNC Equipment Co., Ltd. is located in Taizhou, Zhejiang, China. Our company specializes in the manufacturing of valve machines and aluminum product machines. Our main products include CNC Lathe Machines, CNC Transfer Machines, Automatic Forging Machines, CNC Machine Centers, Long Bar Feeder CNC Lathe Machines, Testing Machines, and more.
We have several engineers who are experts in structural design and possess strong product development capabilities. We provide design and manufacturing services for various types of machines and custom-structured machines for our clients.
Over the past 20 years, we have been supplying high-quality machines to many world-renowned brands in countries such as India, Bangladesh, Egypt, Turkey, Tunisia, Vietnam, Australia, the United States, and Ireland.
We look forward to establishing business relationships with everyone and hope to expand our business through joint efforts. We look forward to your inquiries.
FAQ
1. How can l choose the most suitable machines ?
A:Please tell me your specifications,we can choose the best model for you,or you can choose the exact model.You can also send us the products drawing,we will choose the most suitable machines for you.
2. Who are we?
A:We are based in Zhejiang, China, start from 2020,sell to Africa(30.00%),South Asia(20.00%),South America(10.00%). There are total about 11-50 people in our office.
3. How can we guarantee quality?
A: Always a pre-production sample before mass production;Always final inspection before shipment;
4. What can you buy from us?
A: CNC lathe machine, CNC transfer machine,CNC milling center, CNC turn-milling compound lathe,Punching machine ball machine, assembly machine and so on .
5. What's the MOQ?
A: 1 set.
