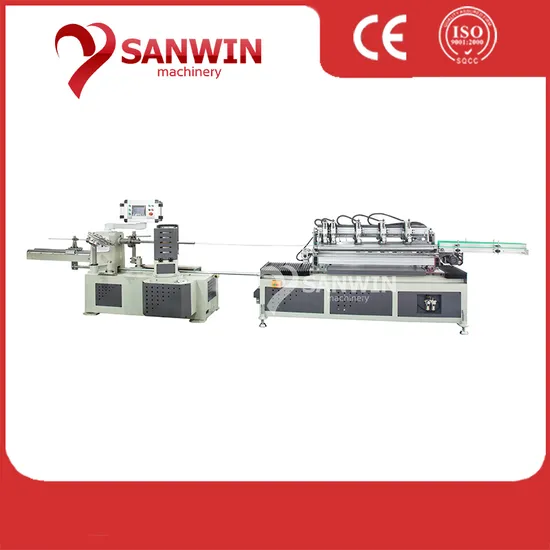

Spiral Kraft Cardboard Paper Tube Core Making Cutting Winding Machine
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
30
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
3-16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
5 - 10mm
Certification
CE
Condition
New
Winding Type
Three Head Two Belts
Cutting System
Numerical and Multi-Blades
Cutting Length
100-2000mm
PLC
Delta, Taiwan
Servo Motor
Yaskawa, Japan
Inverter
Delta, Taiwan
Touch Screen
Taiwan
Voltage
3p, 380V, 50Hz
Weight
3200kgs
Dimension
5600*2250*2170mm
Transport Package
as Requested
Specification
30
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year
Product Description
SWJG-30 Three-heads Multi Cutters Paper Tube Core Making MachineDescriptions: SWJG-30 Multi-cutters three Heads paper tube & core making machine equipped with Numerical and Multi-blades Cutting System & Three-heads Winding System. Suitable for paper tubes with thickness 1-10mm.
-- 1.PLC controlling system with automatic operation.
-- 2.Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- 3.Adopt with Multi-cutters and online cutting length reaches to 100-2000mm. Paper tubes can be finished in one-step.
Technical Parameter:
| Technical Parameter | ||
| Paper Layer | 3-16 Layers | |
| Inner Diameter | 25-200mm | |
| Wall Thickness | 1-10mm | |
| Winding Speed | 5-20 meters/min | |
| Winding Nose | Three noses two belts | |
| Cutting System | Servo Synchronous Tracking Cut | |
| Gluing Way | Double Sides | |
| Length fixing | Encoder | |
| Operator | 2-3 persons | |
| Speed Control | By Inverter | |
| Power Supply | 380V/3Phase/50Hz | |
| Measurement & Weight | ||
| Measurement | 4100*1650*1800mm | |
| Working Space | 11000*7000mm | |
| Weight | 3500kgs | |
| Control System | ||
| Main motor | 3.5kw x 3pcs Wannan | |
| PLC | Xinjie | |
| Man-machine Interface | Xinjie | |
| Inverter | 11KW Wosen | |
| Servo Motor / Driver | Dongyuan | |
| Lead Screw / Slider | Shangyin | |
| Pneumatic Components | Jingwei | |
| Electric Components | CHNT | |
| Bearing | Haerbin | |
| Configuration | ||
| Paper Reel Stand | 16 Layers Integral Type | |
| Gluing System | 16 Layers Spraying Type | |
| Inner Paper Shelf | 1 Set | |
| Belt | 2 Pieces | |
| Mandrel Shaft | 1 Piece | |
| Useful Tool | 1 Set | |
Machine Photo:
- Three Heads Spiral Winding
- Multi-knives Online Cutting System
