2500mm Auto Stainless Steel Sheet CNC Bending Machine for Elevator
| US$100,000.00-500,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHA-2500A
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Max.Bending Size
2500mm*1500mm
Feeding Structure
Pressing Arm
Max. Bending Thickness
3mm
System Minimum Accuracy
0.001mm
Four Side Forming Min. Inner Size
About 140mm*190mm
Automic Level
Fuly Automatic
Core Components
Bearing,Servo Motor,Screw Rod,Line Rail
Transport Package
Sea
Specification
2500A
Trademark
LANHAO
Origin
China
HS Code
8462230000
Product Description

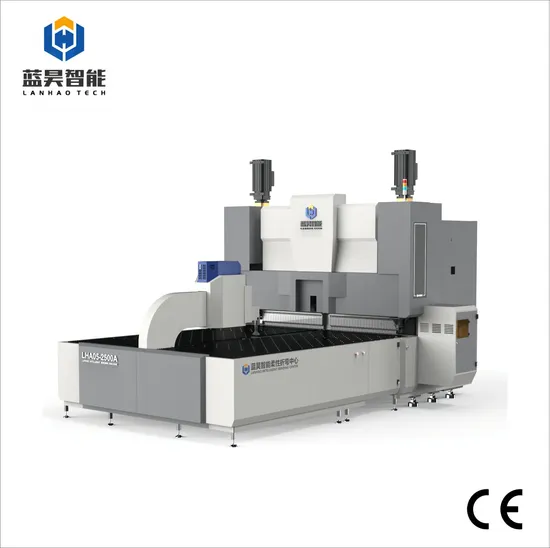

The LHA-A series is an intelligent flexible bending center that adopts the pressing arm loading method, which can realize automatic tooling change. The whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and all kinds of flat or special-shaped work pieces. Automatic re-tooling pressing tool, need not manual re-tooling set up. More convenient and more effecient to operate . It is equipped with a bending assistant tool which can realize partial bending of the work piece. Product Parameters| LHA-2500A Technical parameters | |
| Feeding structure | Pressing arm |
| Work table structure | Brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm X W 1500mm |
| Max. Bending height (The maximum bending height after customization can reach 300mm) | 170mm (customizable) |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Rated power | 380V |
| Motor power | 82KW |
| Average power | About 3.0KW |
| Noise | About 50 dB |
| Machine size | L565cm X W320cm X H340cm |
| Total weight | About 18 tons |
| User operating environment | Win7 or above system |
| Max. Bending thickness | UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0 mm UTS 265N/mm2 aluminum panel 3.0mm |
| Min. Panel thickness | 0.35mm |
| Four side forming min. Inner size | About 140mmx190mm( excluding inverted folded side) |
| Double side forming min. Inner size | About 140mm |
| Bending angle | 0-180 degree |
| Axis | 21 |
