Tugboat Rubber Fender with Certificate

Product Description

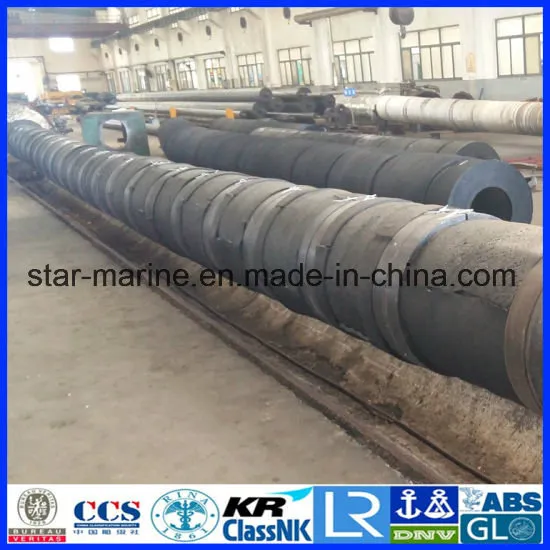

Tugboat Rubber FenderTugboat Rubber Fender is generally used on the bow and stern of tugboats, workboats, icebreakers and various types of vessel as primary pushing fenders. Its circular shape makes it ideal when working with large bow flares such as container ships, but they are equally suited to pushing flat sided vessels. Available in diameters up to 9000mm and in very long lengths, tugboat rubber fender is fitted to the tug hull with a longitudinal chain running down the fender bore. On larger fenders, these chains are supplemented by circumferential restrains, either sleeved chains or webbing straps, which sit in special grooves moulded into the fender body at interval along its length. The ends of the tugboat rubber fender can be tapered to help fair them into the hull. It is easy to install the grooved body with simple chain, wire or rope.
Features: Strong and durable structure; With grooved for chains and straps for easier and firmer attachments; Round hollow chamber for easier installation; Suitable to be fasten to the sides, bow and stern of tugboats; Wide range of sizes and designs. PRODUCT INTRODUCTION
Specifications:

Type	Dimensions (mm)				Remarks
	ØD	Ød	b	c
300*150*L	300	150	50	25	L can be 3000mm to 2600mm.
300*100*L	300	100	50	25
400*200*L	400	200	50	35
400*150*L	400	150	50	35
400*100*L	400	100	50	35
500*250*L	500	250	60	40
500*220*L	500	220	60	40
500*200*L	500	200	60	40
500*150*L	500	150	60	40
600*300*L	600	300	60	35
600*250*L	600	250	60	50
600*220*L	600	220	60	50
600*200*L	600	200	60	50
700*350*L	700	350	60	50
700*300*L	700	300	60	50
700*250*L	700	250	60	50
700*220*L	700	220	60	50
800*400*L	800	400	70	50
800*350*L	800	350	70	60
800*300*L	800	300	70	60
900*450*L	900	450	70	50
900*400*L	900	400	70	50
900*350*L	900	350	70	50
Note: Other sizes can be made as per customers' request.
