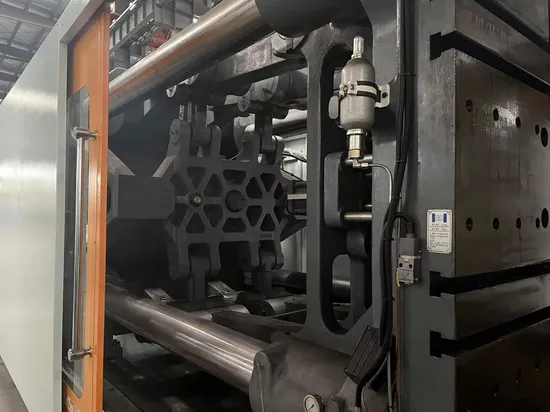

Plastic Molding Machine for Plastic Products
| Negotiable | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-HD900L
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
900T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| SPECIFICATION | LTY9000 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 90 | 100 | 110 | 115 |
| SCREW L/D RATIO | L/D | 25.5 | 23 | 20.9 | 20 |
| SHOT VOLUME(THEORETICAL) | cm3 | 2988 | 3689 | 4464 | 4879 |
| INJECTION WEIGHT(PS) | g | 2719 | 3356 | 4062 | 4440 |
| INJECTION RATE | g/s | 590 | 729 | 880 | 960 |
| INJECTION PRESSURE | MPa | 216 | 176 | 146 | 133 |
| SCREW SPEED | rpm | 100 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 9000 | |||
| OPEN STROKE | mm | 1010 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 1080x1080 | |||
| MAX.MOULD HEIGHT | mm | 1100 | |||
| MIN.MOULD HEIGHT | mm | 400 | |||
| EJECTOR STROKE | mm | 325 | |||
| EJECTOR FORCE | KN | 210 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 37+45 | |||
| HEATING POWER | kW | 63.9 | |||
| MACHINE DIMENSION(L*W*H) | m | 11.82x2.51x3.13 | |||
| OILTANK CUBAGE | L | 1700 | |||
| MACHINE WEIGHT | t | 50 | |||
