Pg-80t Cutting-Edge Cryogenic Deburring Solution for Precision Rubber Parts

Product Description

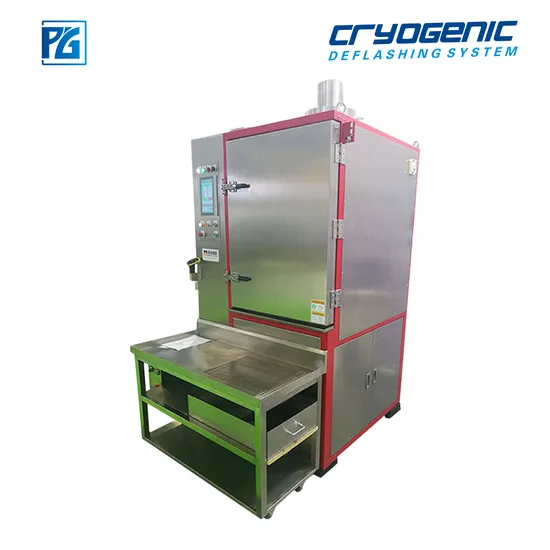

Unveiling the PG-60T Cryogenic Deflashing & Deburring Machine (60 Liters), meticulously engineered for unparalleled precision in deflashing. Experience top-notch efficiency tailored for high-quality production! Product Description PROCESSING PRINCIPLE
As the mercury drops, a fascinating transformation occurs: rubber and plastic parts solidify, becoming brittle and crystallized, surrendering their inherent flexibility. Enter the cryogenic realm, where these parts are vulnerable to breakage upon external pressure. Flash on molded items, with its delicate structure, succumbs more readily to this brittle state at low temperatures. Our cryogenic deflashing marvel seizes this moment, expertly designed to work when the flash is brittle and the core product remains pliable. With finesse, high-speed projection of specialized plastic media deftly strikes and removes the brittle flash, leaving the main product unscathed and pristine.
Product Feature
FUNCTIONS
Our state-of-the-art machine is adept at the swift removal of flash from small rubber and plastic wonders like O-rings, gaskets, and an array of other molded components.
Harnessing the power of cryogenic processing, flashes are meticulously frozen and then skillfully removed using high-speed projection media (Polycarbonate blast). This process significantly elevates the surface quality of molded rubber and plastic parts, delivering an impeccable finish.
Product Specification / Models
APPLICATIONS
A. O-rings and uniquely shaped rubber parts across diverse materials and dimensions.
B. Components integral to microelectronic marvels.
C. High-precision elastomeric parts, crafted for excellence.
D. Finely tuned precision injection-molded plastic parts.
E. Innovative R&D production runs, pushing the boundaries of technology.
F. Die-cast products crafted with precision, including zinc, aluminum, and magnesium alloy parts. Our Advantages FEATURES
High Efficiency: Redefine productivity! This machine effortlessly replaces the labor of 60-80 workers in flash removal, ensuring seamless and efficient operations.
High Precision: Masterfully eradicates tiny, hardened flashes that evade manual labor, significantly enhancing the precision and quality of your products.
Low Cost: Experience significant cost reductions with this machine, offering an exceptionally economical alternative to traditional manual processing. SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T
SIZE(L*W*H)	1000*1000*1950MM
WEIGHT	700KG
POWER	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	60L
EFFECTIVE CAPACITY	20L
WHEEL SPEED	3000rpm - 7200rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ250mm
BLASTING SPEED	105.7m/s
PROCESSING ABILITY	200-250kg per day

OPERATION PROCESS FEATURES
High Efficiency: Revolutionize your workflow by replacing 60-80 workers for efficient flash removal, streamlining your production process.
High Precision: Achieve unparalleled accuracy by removing small and hardened flashes beyond the reach of manual methods, enhancing product quality significantly.
Low Cost: Enjoy a cost-effective, superior alternative to manual handling, optimizing your operational budget. Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP WORKSHOP Successful Installations
Installations triumphantly completed in Poland and the USA, showcasing our global reach and reliability. Country Shipped
