Customized Acrylic Digital Visual Carving Cutting Machine CNC Router Woodworking Engraving Machine

Customized Acrylic Digital Visual Carving Cutting Machine CNC Router Woodworking Engraving Machine

US$4,500.00
1-4 set
US$4,100.00
5+ set

Basic Info.

Model NO.
K3-2500 CCD GEN. 2
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Machine Type
CNC Router
Work Mode
Automatic Edge Recognition with CCD
Machine Structure
Steel Structure (Stress Relief Treatment)
Working Size
2500*1300 mm (Customized)
Image Processing
CCD System
Spindle Type
Water-Cooling, Single Spindle
Spindle Power
3.2 Kw (Upgraded)
Drive Mode
High Speed Stepper Motor
Transmission Mode
Rack + Guide Rail
Working Table
Resin Mesh Adsorption Workbench
Controlling Mode
CNC
Feed Mode
Manual
Usage
Woodworking, Plastic, Stone, PVC
Power Supply
220V or 380V
Transport Package
PE Film or Wooden Cases
Trademark
SDKCNC
Origin
China
HS Code
8465209000
Production Capacity
1200/Year

Product Description

Customized Acrylic Digital Visual Carving Cutting Machine CNC Router Woodworking Engraving Machine6
Product Description

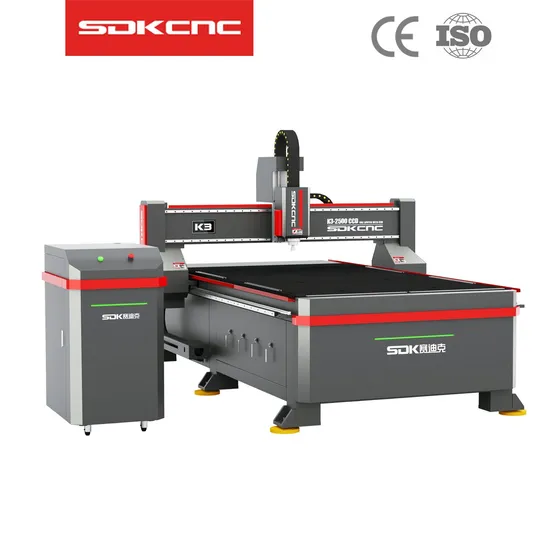

Δ K3-2500 CCD is an industrial engraving machine independently developed and produced by SDKCNC.It adopts 3-axis CNC control system, The machine embodies a top open fixed platform design meticulously engineered to facilitate high-speed engraving and cutting functionalities specifically tailored for plate materials.It offers the flexibility of customizing multi-head synchronous or asynchronous structures. This ensures that the K3-2500 CCD seamlessly caters to diverse manufacturing needs and applications, allowing for precision and efficiency across various industries.
Δ The operational simplicity of the K3-2500 CCD is one of its standout features,forged from thick-walled steel with a meticulously welded bed, undergoes a thorough time stress relief process. The whole machine adopts high-speed stepping drive, Y-axis dual motor drive,so it's running stably and reliably.Adopts precision milling helical gear rack, straight guide rail, silent screw rod.Moreover, its steel structure beam and the inclusion of a 3.2KW water-cooled main spindle, spinning at 24000RPM, signify its capacity for high-performance operations. Should the need arise, the K3-2500 CCD readily accommodates air-cooled spindles.
Δ It is easy to operate, supports PLT/DXF/EPS and other formats generated by CAD/CAM software, such as AUTOCAD, UG, AI and so on. From the robustness of wood to the durability of stone, the flexibility of PVC, the transparency of acrylic, the resilience of ABS, and even intricate materials like epoxy resin plates and phenolic boards, The high-resolution CCD system can automatically obtain contours and automatically cut without white edges . Its proficiency shines, particularly in dealing with hard materials, making it an ideal choice for various industries engaged in plate processing, furniture manufacturing, and crafting elaborate embossed artworks.
Detailed Photos

01 BED STRUCTURE
Heavy duty welded bed with Thick-walled square tube in stress aging relief
All planes and installation holes are precision machined by gantry milling
02 TRANSMISSION
Transmission:X/Y-axis with helical rack & linear guide rail,Z-axis with mute screw
03 DRIVE MODE
high speed stepper motor drive
Y axis with double motor drive
04 SPINDLE
This facility adopts high pulling torque spindle ,Standard water cooling
spindle power 3.2 kw,speed from 1-24000RPM
Interchangeable air-cooled spindle
05 WORKING TABLE
phenolic resin suction clip intergrated table with T slot
standard 5.5kw aluminum alloy vacuum pump
06 CCD SYSTEM
High resolution CCD camera element positioning, industrial edge cruising motion control system, can automatically correct the offset of the plate. And it can intelligently obtain the edge, one-click without white edge cutting.

Product Parameters
Technical Parameter
Working Area
1300 x 2500 mm
Repeat position accuracy
±0.01 mm
Spindle Power
3.2Kw (1-24000 RPM)
Spindle Type
water-cooling
Spindle
Single-spindle
Control system
Industrial 3-Axis Edge Patrol Motion Control System
CCD
High Resolution CCD System
Drive motor
High Speed Stepper Motor
Type Name
K3-2500 CCD
Working Table
Phenolic resin suction clip intergrated table
Vacuum Pump
5.5KW

Application Industry
Δ It widely used for high speed cutting and engraving of Acrylic,PVC,wood,aluminum plates,insulting boards,ABS board,aluminum-plastic plates,thick foam,PVC,MDF board ,expansion sheet.
Δ Normally apply to advertisement logo,sliding door ,packaging ,furniture,showcase,architectural models,metal signs .Suitable for processing various hard boards.CCD system as standard, especially suitable for processing and production of small batches of complex shapes and irregular edges.

Packaging & Shipping
Company Profile
Our Advantages
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Just tell us your materials ,thickness ,size and processing demands ,then we will give you best solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4:When will delivery the machine after we got the down payment?
Fastly delivery .Normally we need take 15-20 days for one set .Above 2 sets ,we can negotiate .

Q5:How do you provide after-sales services?
You need confirm with our engineer in the group what the problem is ,and our engineer will confirm with if can solve it by remote guidance ,if cant solve it by remote video talking ,then we will send the acceptable express for replacing parts for you quickly.
