US$40,000.00-70,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Certification
CE, ISO 9001
Feature
45 Degree Bed Structure
Function
Turning Milling Compound
Transport Package
Iron/Wooden Bracket, Wood Case
Specification
2850*1700*1500
Production Capacity
500set/Year
Packaging & Delivery
Package Size
320.00cm * 230.00cm * 200.00cm
Package Gross Weight
6000.000kg

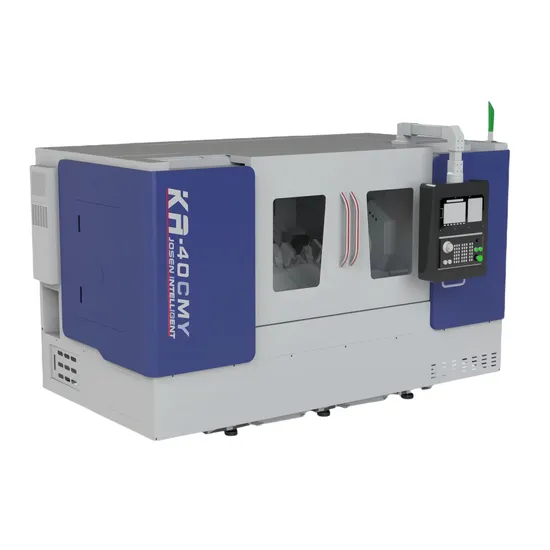

Product Description
Product Description
Machine features:
1. The main castings are all made of high-grade cast iron by resin sand casting process. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the machine tool. Appearance design is beautiful and humanized. 2. The spindle adopts precision spindle with Japan/Germany high precision bearings, high speed, high precision, low noise and high rigidity.
3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the screws are fixed at both ends, which improves the support stiffness of the support base and minimizes the distortion and deformation of the screws caused by frequent high-speed positioning and heavy cutting. 4. Adopting automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the normal use of precision and service life of the machine tool.
5. The spindle adopts pulse-type speed control, which makes the positioning and C-axis indexing more accurate.
6. Double spindles and double rows of knives can be processed synchronously or sequentially to realize one-shot machining.
7. The feed system is driven by servo motor and roller screw drive with high precision and wear resistance.
8. The bed is supported by P-level large-size precision heavy-duty ball bearing line rail, with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing.
Product Parameters
SL NO. | Description | Unit | Details |
1 | Maximum swivel diameter of the bed | mm | 500 |
2 | Maximum machining diameter | mm | 360 |
3 | Maximum cutting length | mm | 200 (one-way) |
4 | Standard Chuck Size | inch | 6 |
CNC system |
1 | Syntec | | |
22TB |
Spindle |
1 | Spindle type | | Cartridge type (electric spindle) |
2 | Spindle specifications | | A2-5 |
3 | Spindle through-hole diameter | mm | 56 |
4 | Standard bar diameter | mm | 43 |
5 | Front bearing hole | mm | 80 |
6 | Standard spindle speed | rpm | 50-5000 |
7 | Spindle motor rated power (continuous operation rated) | Kw | 7.5 |
8 | Spindle motor rated power (15-minute run rating) | Kw | 11 |
subspindle |
1 | Sub spindle Model | | Cartridge type (electric spindle) |
2 | Sub-axle specifications | | A2-5 |
3 | Sub-spindle through-hole diameter | mm | 56 |
4 | Standard bar diameter | mm | 43 |
5 | Front bearing hole | mm | 80 |
6 | Standard spindle speed | rpm | 50-5000 |
7 | Sub-axis motor rated power (continuous operation rated) | Kw | 7.5 |
8 | Sub-axis motor rating (15-minute run rating) | Kw | 11 |
X1, X2, Z1, Z2 axis accuracy |
1 | X1, X2, Z1, Z2 axis positioning accuracy | mm | ± 0.005 |
2 | X1, X2, Z1, Z2 axis Repeat Positioning Accuracy | mm | ± 0.003 |
Y1, Y2 axis parameters (optional) |
1 | Y1, Y2 axis travel | mm | 100 |
2 | Y1, Y2 axis rapid traverse speed | m/min | 20 |
3 | Y1, Y2 Axis Ball Screw Diameter and Pitch | mm | 25 x 10 (C lever) |
4 | Y1, Y2 axis guideway type and dimensions | mm | 25 (Ballbar P class) |
5 | Y1, Y2 axis motor power | Kw | 1.8 |
X1, X2 axis parameters |
1 | X1, X2 axis travel | mm | 530 |
2 | X1, X2 axis rapid traverse speed | m/min | 30 |
3 | X1, X2 Axis Ball Screw Diameter and Pitch | mm | 32 x 10 (C3 lever) |
4 | X1, X2 axis guideway type and dimensions | mm | 30 (P4 class for ball bearing rails) |
5 | X1, X2 axis motor power | Kw | 1.8 |
Z1, Z2 axis parameters |
1 | Z1, Z2 axis travel | mm | 400 |
2 | Z1, Z2 axis rapid traverse speed | m/min | 30 |
3 | Z1, Z2 Axis Ball Screw Diameter and Pitch | mm | 32 x 10 (C3lever) |
4 | Z1, Z2 axis guideway type and dimensions | mm | 35 (P4 class for ball bearing rails) |
5 | Z1, Z2 axis motor power | Kw | 1.8 |
Other |
1 | Cooling box capacity | | 100 |
2 | Power Chassis Capacity | | 35 |
3 | Machine size | | 3000 X 2000 |
mm |
4 | Machine weight | kg | 4500 |
Detailed Photos
Company Profile
Our Advantages
Certifications
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
