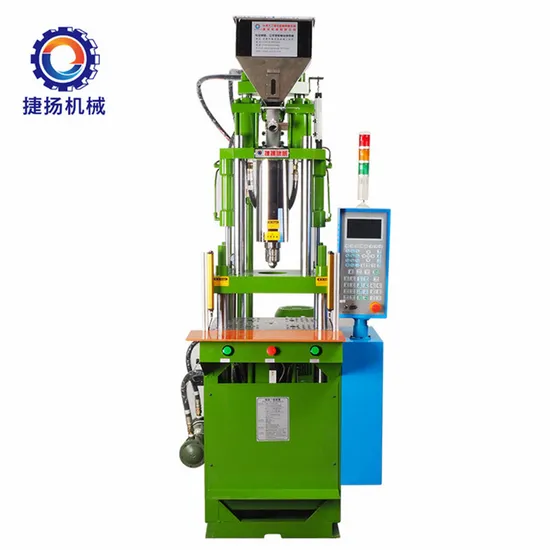

Plastic Insert Injection Moulding Machine

Plastic Insert Injection Moulding Machine

US$6,300.00
1-2 Sets
US$5,700.00
3+ Sets

Basic Info.

Model NO.
JY-350ST
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Clamping Force
35tons
Injection Weight
72.6g
Injection Rate
60.3cm3/S
Automatic
Yes
After-Sales Service Provided
Overseas Service Is Available
Machine Weight
1.4TF
OEM
Yes
Color
Customized
Transport Package
Standard Packaging
Specification
1.36*0.865*1.98M
Trademark
JIE YANG
Origin
Dongguan, China
HS Code
8477101090
Production Capacity
200 Set/Month

Product Description

plastic insert injection moulding machine
1.in-line screw type injection apparatus.
2.temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.the lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.the low-pressure mold clamping device protection security.
5.the tube can lift,clean and convenient material head,fixed moldeasier.
6.can be installed with a single mode skateboards,skateboard or alternating dual mode
Detailed Images:
Advantage:
Parameter of Machine
Model Unit JY-350ST-D JY-450STD JY-550STD JY-850STD JY-1200STD
Screw Barrel Diameter mm 26 28 30 30 32 34 32 35 42 42 45 48 42 45 48
Injection Pressure kg/cm2 1530 1278 886 1171 996 820 1642 1385 ## 1027 895 790 1469 1280 1125
Max. Shot Weight gram 56 64 74 74 84 106 102 123 ## 176 201 227 199 228 260
Max. Shot Weight cm3/sec 57 66 76 62.5 71 95 49 59 84 99 113 129 95 129 183
Screw Barrel Route mm 115 115 140 140 200
Screw Barrel Rotary Speed rpm 0-205 0-190 0-175 0-200 0-180
Nozzle Contact Force tons 4.45 4.45 5.5 6.5 7.5
Nozzle Retraction Nozzle mm 170 190 210 210 210
Number of Temperature Control pcs 3 3 3 4 5
Clamping Force tons 35 45 55 85 120
Platen Size mm 350*350 400*400 450*450 500*500 550*550
Distance Between Tie Bere mm 375*205 410*250 470*280 525*325 635*425
Min. Mold Height mm 150/100 200/150 250/200 430/230 480/280
Opening Stroke mm 180 200 200 255 300
Max. Opening Mold Distance mm 330/280 400/350 450/400 685/485 780/580
Ejetor Force tons 1.3 1.5 1.5 2.2 4.8
Ejetor Stoke mm 135 135 135 135 135
Max. Hydraulic Pressure kg/cm2 140 140 140 140 140
Pump Output L/min 34.5 37.2 40 47 56
Oil Resservoir Capacity Liter 100 130 150 180 200
Cooling Water Consumption L/hr 400-600 600-800 800-1000 800-1000 1000-1200
Pump Motor Power kw/hp 3.75/5HP 5.5/7.5HP 7.5/10HP 11/15HP 14.5/22HP
Barrel Heating Power kw 2.4 2.8 4.5 5 6
Total Power kw 6.3 9 12 16 20
Machine Weight tons 1.15 2 2.5 5 6.5
Machine Dimension(LxWxH) meter 1.65*1.07*2.35 1.8*1.15*3.08 2.2*1.2*3.33 2*1.3*2.5 2.3*1.4*2.7
Shipping Weight tons 1.3 2.2 2.7 5.4 6.7
Shipping Measurements(LxWxH) meter 1.7*1.12*2.49 2*1.25*2.3 2.4*1.3*2.6 2.2*1.4*2.6 2.45*1.5*2.8

Application :
About Us

Packing & Shipping :
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
