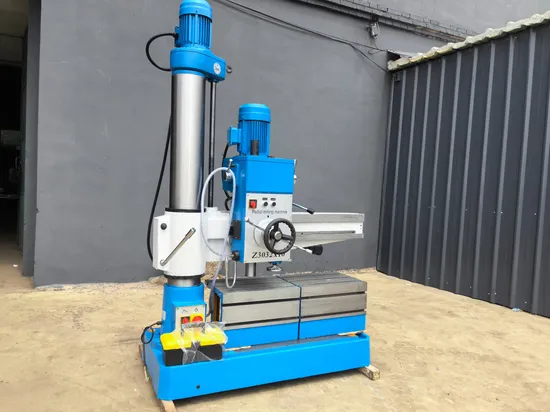

2024 Vertical Manual Radial Drilling Machine Z3050 Hydraulic Radial Drilling Machine

2024 Vertical Manual Radial Drilling Machine Z3050 Hydraulic Radial Drilling Machine

US$2,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3032
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Rocker Arm Rotation Angle
360
Horizontal Moving Distance of Spindle Bo
1250mm
Spindle Feed
0.10/0.16/0.22/0.25/0.35/0.56
Maximum Allowable Resistance of The Spin
16000n
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Machine Weight
2000kg
Overall Dimensions
2170*950*2450mm
Transport Package
Export Wooden Cases
Specification
2170*950*2450
Trademark
JEPPS
Origin
Shandong, China
HS Code
84581100
Production Capacity
100pieces/Year

Packaging & Delivery

Package Size
2500.00cm * 1500.00cm * 2800.00cm
Package Gross Weight
2500.000kg

Product Description

The main parameters Z3032× 10 Z3032×10
(Automatic tool movement)
Maximum drilling diameter (mm) 32 32
Spindle taper
Mohs No. 4

Mohs No. 4
Spindle speed stages 6 6
Spindle speed range 108-1000 108-1000
Spindle lifting speed (r/min) 1.21 1.21
Rocker arm rotation angle 360° 360°
Maximum allowable torque of the spindle (Nm) 200 200
Spindle feed (3 levels) 0.10 0.16 0.25
Maximum feed allowed for the spindle (N) 5300 5300
Main motor power (kw) 1.5/2.2 1.5/2.2
Rocker arm lifting motor (kw) 0.55 0.55
Machine weight (kg) 950 1000
Note: Cooling water pump is only available for Z3032 × 10 model (motor power: 0.24kw)


The main parameters

unit
Z3040 × 10 Single Column Z3040 × 10 double column

Maximum drilling diameter
mm 35/40 (steel/casting) 35/40 (steel/casting)
Distance from spindle centerline to column generatrix (minimum-maximum) Mm 300-880 310-900
Distance from spindle end to base table (minimum - maximum) Mm 230-1120 170-1080
Spindle travel mm 200 280
Spindle taper MT.4 MT.4
Spindle speed stages
Level
12 12
Spindle speed range r/min 34-1220 34-1220
Spindle lifting speed r/min 1.3 1.3
Rocker arm rotation angle ° 360±180° 360±180°
Horizontal moving distance of spindle box Mm 580 600
Spindle feed 3 Level 0.10 0.16 0.25 0.10 0.16 0.25
Maximum allowable resistance of the spindle N 6300 6300
main motor power kw 1.5/2.2 1.5/2.2
Lifting motor power kw 1.1 1.1
Machine weight Kg 800 1150
Overall dimensions (length*width*height) Mm 1450*690*2200 1500*700*2200

The main parameters unit Z3040×13 Radial Drilling Machine
Maximum drilling diameter mm 35/40(/)
35/40 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) Mm 320-1170
Distance from spindle end to base table (minimum-maximum) Mm 300-1100
Spindle travel mm 200
Spindle taper MT.4
Spindle speed stages
Level
12
Spindle speed range r/min 34-1220
Spindle lifting speed r/min 1.3
Rocker arm rotation angle ° 360±180°
Horizontal moving distance of spindle box Mm 850
Spindle feed Level 3 0.10 0.16 0.25
Maximum allowable resistance of the spindle N 6300
main motor power kw 1.5/2.2
Lifting motor power kw 1.1
Machine weight Kg 1500
Overall dimensions (length*width*height) Mm 1850*800*2350

The main parameters
unit
Z3045× 13 Radial Drilling Machine
Maximum drilling diameter mm 40/45 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) Mm 320-1120
Distance from spindle end to base table (minimum-maximum) Mm 235-1100
Spindle travel mm 280
Spindle taper MT.4
Spindle speed stages
Level
12
Spindle speed range r/min 22-1400
Spindle lifting speed r/min 1.3
Rocker arm rotation angle ° 360±180°
Horizontal moving distance of spindle box Mm 850
Spindle feed Level 3 0.10 0.16 0.25
Maximum allowable resistance of the spindle N 6300
main motor power kw 3
Lifting motor power kw 1.1
Machine weight Kg 1600
Overall dimensions (length*width*height) Mm 1850*800*2350

The main parameters unit Z3050×16 Radial Drilling Machine
Maximum drilling diameter mm 48/50 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) Mm 360-1600
Distance from spindle end to base table (minimum-maximum) Mm 300-1150
Spindle travel mm 220
Spindle taper MT.5
Spindle speed stages
Level
6
Spindle speed range r/min 78.135.240.350.590.1100
Spindle lifting speed r/min 1.3
Rocker arm rotation angle ° 360
Horizontal moving distance of spindle box Mm 1250
Spindle feed Level 6 0.10/0.16/0.22/0.25/0.35/0.56
Maximum allowable resistance of the spindle N 16000
main motor power kw 4
Lifting motor power kw 1.5
Machine weight Kg 2000
Overall dimensions (length*width*height) Mm 2170*950*2450

The main parameters unit Z3063× 16/20 Radial Drilling Machine
Maximum drilling diameter mm 50/63 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) Mm 360-1600/1900
Distance from spindle end to base table (minimum-maximum) Mm 300-1050/1150
Spindle travel mm 315
Spindle taper MT.5
Spindle speed stages Level 12
Spindle speed range r/min 34.47.66.90.130.180.240.340.470.650.930.1280
Spindle lifting speed r/min 1.3
Rocker arm rotation angle ° 360
Horizontal moving distance of spindle box Mm 1250/1650
Spindle feed Level 6 0.10/0.16/0.22/0.25/0.35/0.56
Maximum allowable resistance of the spindle N 16000
main motor power kw 4/5.5
Lifting motor power kw 1.5
Machine weight Kg 2200/2600
Overall dimensions (length*width*height) Mm 2170*950*2450 2570*1000*2550

The main parameters unit Z3080× 25 Radial Drilling Machine

Maximum drilling diameter
mm
80
Distance from spindle centerline to column generatrix (minimum - maximum) Mm 500-2500
Distance from spindle end to base table (minimum-maximum) Mm 550-2000

Spindle travel
mm 450

Spindle taper
MT.6

Spindle speed stages

Level
16

Spindle speed range
r/min 16-1250

Spindle lifting speed
m/s 0.017

Rocker arm rotation angle
° ±180

Horizontal moving distance of spindle box
Mm 2000

Spindle feed
Level 16 0.04-3.2

Maximum allowable resistance of the spindle
N 35000

main motor power
kw 7.5

Lifting motor power
kw 3

Machine weight
Kg 11000

Overall dimensions (length*width*height)
Mm 3730*1400*3790

Product Parameters

The Z3050 radial drilling machine has a drilling diameter of 50mm, which is mainly composed of a base, an inner column, an outer column, a rocker arm, a headstock, and a workbench. The inner column is fixed at one end of the base, and an outer column is sleeved on the outside of it, and the outer column can rotate 360 degrees around the inner column. One end of the rocker arm is a sleeve, which is sleeved on the outer column to move up and down. Because the screw rod and the outer column are connected as a whole, and the lifting nut is fixed on the rocker arm, the rocker arm cannot rotate around the outer column, but can only rotate around the inner column together with the outer column. Detailed Photos

Company Profile
Certifications
Packaging & Shipping

FAQ

FAQ:
1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: You can pay by T/T . You can also pay to my company business bank account.
4.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
Why choose us ?
1. Compared with other factories, casting material which produced by our company independently is really better than the others.
2.one year guarantee for whole machine .
3.24-hours technical support by E-mail or telephone
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
