Es-100self-Propelled Multifunctional Reaper Mini Harvester Swather Mini Reaper Walking Small Cutter Wheat Rice Horizontal Cut Harvester Reaper-Binder From China

Product Description

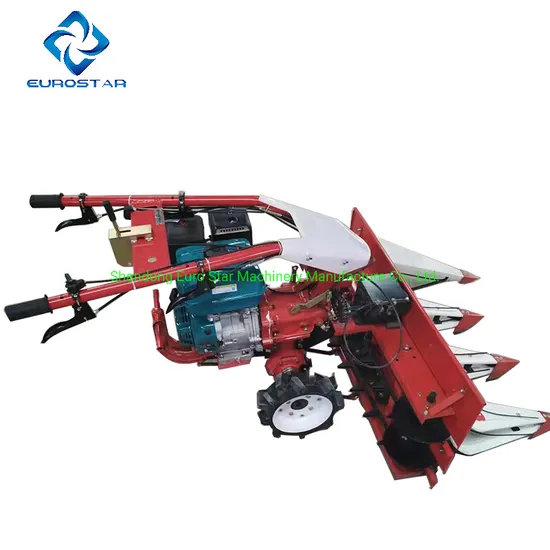

ES series mini self-walking reaper description
ES Series Mini Self-Walking Reaper is mainly used to harvest the paddy and wheat. It could also be used to harvest the soybeans, hot pepper and reeds. It is applicable in the plain, hills, slopes, small field, etc. In addition, it is with the advantages of small volume, small weight, flexible performance and simple operation.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
ES series mini self-walking reaper product selling points
1. Except the upstanding crops, It can also reap fallen crops(lodging crops).
2. The handle can be adjusted upward or downward, with 180° rotation, more safe and suitable for different heights people.
3. It's with widen wheels, there is inner tube which are inflatable. There is differential gear, which can turn around freely.
4. This wheat/rice reaper binder adopts shaft drive, with bigger torque and high efficiency.
5. This wheat/rice reaper binder is made of high quality materials and components.
6. Small volume, compact structure, complete harvesting, low stubble, reaping&binding&putting aside at one time, more convenient and high efficiency, high quality, and long service life.
ES series mini self-walking reaper technical parameters

ES Series Mini Self- Walking Reaper
Model	ES-80	ES-100	ES-120	ES-150
Cutting Width (mm)	800	1000	1200	1500
Stubble Height (mm)	≥50
Laying Angle (Degree)	90 ± 20
Laying Type	Side Direction
Productivity (acre/h)	2.0-3.0	2.5-4	3.0-5.0	3.5-5.5
Engine (hp)	JF168 (Gasoline) 4.5hp	170F (Gasoline) 5.5hp	177F (Gasoline) 6hp	R175 (Diesel) 8hp
Damage Rate	≤1 %

ES series mini self-walking reaper display
ES series rear tine tiller with belt technical parameters

ES Series Rear tine tiller (belt)
model		ES680	ES680-D1	ES700-D1	ES700-D2
body size		1680*730*1000	1700*730*1150	1720*730*1150	1750*730*1150
weight(kg)		85	96	96	96
Engine		170 petrol	173 diesel	178 diesel	186 diesel
rated power(kw)		4	4.05	4.4	6.5
engine model		170P	173FS	178FS	186FS
gears shifting	walking gearbox	H,0,L,R	H,0,L,R	H,0,L,R	H,0,L,R
	Tilling gearbox	ditching,0, tilling	ditching,0, tilling	ditching,0, tilling	ditching,0, tilling
transmission way		Belt drive	Belt drive	Belt drive	Belt drive
tillage depth(mm)		100-300	100-300	100-300	100-300
working width(mm)		440-720	440-720	800-1000	800-1350
ditching depthing(mm)		200-300	200-300	200-300	200-300
ditching width(mm)		250	250	250	250
tyre		350-6 solid tyre	400-8 solid tyre	400-8 solid tyre	400-8 solid tyre
standar equipment		3pcs 3 group rotary blade, ditching blade	3pcs 3 group rotary blade, ditching blade	3pcs 4 group rotary blade, ditching blade	4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm)		1300×550×680	1300×550×680	1300×550×680	1400×550×680
40HQ(set)Certificates		108	108	108	98

ES series rear tine tiller with belt display
GW Series Rear tine tiller (gear) technical parameters

GW Series Rear tine tiller (gear)
model		GW-4G01	GW-4G02	GW-4D03	GW-4D04	GW-4D05
body size		1720*730*1000	1750*730*1000	1750*730*1150	1800*730*1150	1850*730*1150
weight(kg)			87	96	96	96
Engine		170 petrol	177 petrol	173 diesel	178 diesel	186 diesel
rated power(kw)		4	5.1	4.05	4.4	6.5
engine model		170P	177P	173FS	178FS	186FS
gears shifting	walking gearbox	H,0,L,R	H,0,L,R	H,0,L,R	H,0,L,R	H,0,L,R
	Tilling gearbox	ditching,0, tilling	ditching,0, tilling	ditching,0, tilling	ditching,0, tilling	ditching,0, tilling
transmission way		gear	gear	gear	gear	gear
tillage depth(mm)		100-300	100-300	100-300	100-300	100-300
working width(mm)		440-720	800-1000	440-720	800-1000	800-1350
ditching depthing(mm)		200-300	200-300	200-300	200-300	200-300
ditching width(mm)		250	250	250	250	250
tyre		350-6 solid tyre	400-8 solid tyre	400-8 solid tyre	400-8 solid tyre	400-8 solid tyre
standar equipment		3pcs 3 group rotary blade, ditching blade	3pcs 4group rotary blade, ditching blade	3pcs 3 group rotary blade, ditching blade	3pcs 4 group rotary blade, ditching blade	4pcs 4group rotary blade, ditching blade
Packaging Dimension(mm)		1300×550×680	1300×550×680	1300×550×680	1300×550×680	1400×550×680
40HQ(set)Certificates		108	108	108	108	98

GW Series Rear tine tiller (gear) Display
ES Series tiller technical parameters

ES Series tiller
model		ES-1000	ES-1100A	ES-1000D	ES-1100B	ES-1100C	ES-720
body size		1630×1000×1020	1750×1100×940	1630×1000×1020	1750×1100×940	1750×1100×940	1680×660×930
weight(kg)		70	83	85	115	135	75+40
Engine		170 petrol	177 petrol	173 diesel	178 diesel	186 diesel	178 diesel
rated power(kw)		4	5.1	4.05	4.4	6.5	4.4
engine model		YH170F	YH177F	YH173FS	YH178FS	YH186FS	zongshen
gears shifting		2,0,1,-1	2,0,1,-1	2,0,1,-1	2,0,1,-1	2,0,1,-1	3,2,1, 0,-1,-2
Driving model		gear	gear	gear	gear	gear	gear
Tilling depth(mm)		≥100mm	≥100mm	≥100mm	100-300	100-300	150-250
Tilling scope(mm)		1000	800-1000	1000	800-1000	800-1350	600
tyre		350-6 solid tyre	400-8 solid tyre	350-6 solid tyre	400-8 solid tyre	400-8 solid tyre	400-8 solid tyre
standar equipment		3pcs 3 group rotary blade	3+1 blades	3pcs 4 group rotary blade	3+1 blades	3+1 blades	10pcs 3 group rotary blade
Packaging Dimension(mm)		850×730×700	1050*570*780	850×730×700	1050*570*780	1050*570*780	850×720×600+ 720×550×450
40HQ(set)Certificates		144	108	144	108	108	112

ES Series Tiller Display
Rear Tine Tiller packing and shipping link display
Full range of tractor products display
Our company produces other agricultural machinery display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional Machinery and equipment manufacturer integrating R&D, design, manufacturing, sales and service. The company's products cover agricultural machinery, construction machinery, laser equipment, generator sets and so on.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has passed the ISO9001:2015 international quality management system certification, and based on this, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 80 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Agricultural processing and production workshop
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
