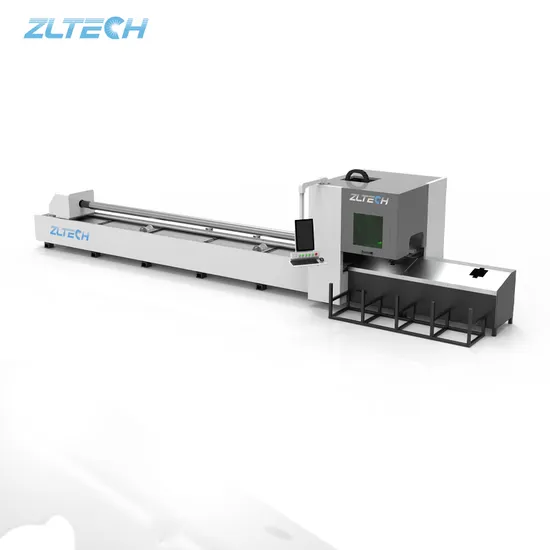

Zltech Pipe Laser Cutting Machine Three Chuck Big Diameter H Beam 12000mm Tube Laser Cutting Machine

Product Description

1000w 2000w 3000w 6000w Professional metal laser pipe cutting machine with low price
This is a professional laser metal pipe cutting machine. If you frequently and in large quantities cut metal pipes, you can choose this machine. In addition to cutting regular-shaped square, round, and rectangular pipes, it can also cut irregular-shaped pipes, such as U-shaped steel, angle steel, H-shaped pipes, T-shaped pipes, and more.

Parameters
Model	ZL-360G6
Chuck Clamping Diameter	φ20mm-φ360mm
Tube Cutting Length	3m/6m/9m/12m
Laser Power	1000w/1500w/2000w/3000w/6000w/12000w/15000w/20000w
Cutting Material	Metal
Chuck Brand	BEUT Pneumatic chuck
Cutting Head Brand	Raytools / other
Laser Source Brand	Max / Raycus / IPG / JPT
Water Chiller Brand	Hanli / S&A / DVT
Servo Motor Brand	Japan Fuji
Position Accuracy	±0.02mm
Repeatability Accuracy	±0.02mm
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Acceleration	0.8G/1.0G/1.5G
Certificate	CE/ISO/FDA
Customized	OEM/ODM
Voltage	3 phase 380v 50HZ / 60HZ (customized)
Installation Instruction	Yes.Instructions and videos.

Machine Part Details
Stable Welded Steel Bed
-With high temperature annealing and natural aging, the welding stress is eliminated, which can prevent the deformation of the bed and reduce vibration.
-Guaranteed cutting accuracy and long service life.
Auto Focus Laser Cutting Head
-Optimized optical configuration and a smooth, efficient airflow design significantly enhance cutting quality and efficiency.
-Automatic focusing reduces the need for manual intervention, with a focusing range from -12 to +10 mm and an accuracy of 0.05 mm.
-Multiple protective lenses. Additional protective lenses for collimation effectively protect the collimation lenses.
-Drawer-type mirror seat. Enables quick and easy replacement of protective lenses.
-High adaptability. Equipped with QBH and QD, among other fiber interfaces, making it compatible with various mainstream lasers.
Full Automatic Pneumatic Chuck
-The pneumatic chucks are 3 times faster than electric chucks due to one-key clamping and auto centering.
-Can automatically center and auto-align.
-The clamping force is strong and consistent, ensuring that heavy pipes do not loosen or slip.
-Higher cutting precision.
MAX Brand Laser Source
-It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line.
-Excellent material processing performance, high speed in thin sheet cutting and trong capability in thick material processing.
Automatic Oil Filling System for Lead Screw and Rack
-There is no need to manually refill oil regularly, ensuring the normal operation of the machine, protecting machine accessories and saving costs.

Cutting Sample Display
Materials :
Developed for the profile and tube cutting market, this fiber laser machine can make cutting, contour cutting and hole cutting of standard metal tubes & pipes, profiles and some shaped tubes.
Industries :
It is widely used in kitchenware, lighting, automotive, fitness equipment, hardware and more industries requiring metal fabrication and tube processing machines.Cutting Thickness:
Different laser generator can help us to cut different thickness.
Please tell us your materials, size and thickness, then we will recommend you suitable model and power. Other styles of products
Company Profile
ZLTECH laser is a R&D, manufacturing and sales enterprise who dedicated to providing global users with fiber laser industrial intelligent equipment and personalized customized design services.
The company's main products include metal fiber laser cutting machine, handheld laser welding machine and handeheld laser cleaning machine.To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 15 professional engineers.
We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.
ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
Packaging & Shipping
FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2.How long can delivery the machine ?
For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
3.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
4.How about the payment?
T/T, 30% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.
