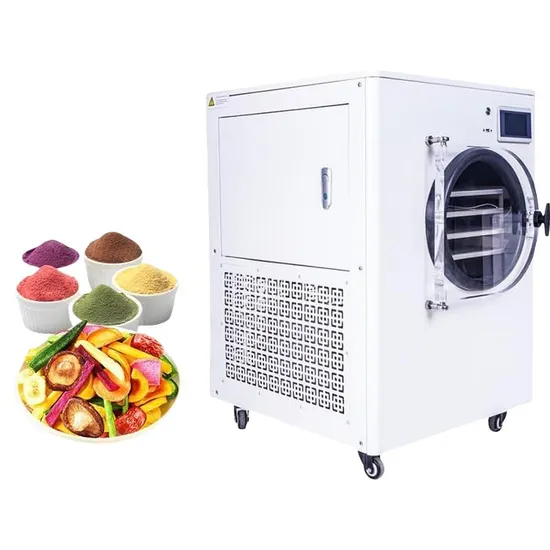

Home Food Freeze Dryer 2kg 4kg Vacuum Freeze Dried Candy Residential Freeze Dryer

Product Description

Product Description

CE high-quality freeze dryer with oil-free vacuum pump for fruit and candy freeze drying Security lock function. Prevent misoperation to modify system status and process parameters, resulting in freeze-drying failure or instrument damage. Partition intelligent energy-saving temperature control technology, high precision temperature control, energy-saving effect is remarkable, the system is stable and reliable. One key fast defrosting technology, safe and efficient.
Product Parameters

Model	HFD-1	HFD-4	HFD-6	HFD-8	HFD-15
Freeze dried area	0.1m2	0.4m2	0.6m2	0.92m2	1.45m2
Cold trap temperature	-50ºC				-60ºC
processing capacity	1-2 KG/batch	4-6 KG/batch	6-8KG/batch	10-12KG/batch	18-20KG/batch
Ultimate vacuum	Below 2Pa
Material tray size	145*275(mm)	200*425(mm)	315*430(mm)	265*430(mm)	265*780(mm)
Number of material trays	3 pieces	4 pieces	4 pieces	8 pieces	7 pieces
Material tray spacing	43mm	45mm	70mm	38mm	43mm
pumping speed	2-4L/S
Water harvesting ability	3kg/24h	4kg/24h	6kg/24h	10kg/24h	18kg/24h
Operating noise	≤60dB
supply voltage	220V/50HZ(Customizable 110V or 380V)
Machine dimensions	450*500*825(mm)	500*640*900(mm)	680*640*1180(mm)	680*640*1180(mm)	680*990*1180(mm)
net weight	73kg	84kg	125kg	130kg	186kg
Whole machine power	1100W	1500W	2000W	2500W	3500W

Detailed Photos
High powervacuum pump
Pure copper motor,strong power
Independent probe
Each of the four floors has independent probesfor temperature measurement
Auto defrosting
Fast defrosting function,more efficient
Company Profile

Jiangxi AIYI Hi-Tech Co., Ltd.

Founded In 2015 And Is Located In The Scenic Nanchang Hi-Tech Industrial Development Zone. We Specialize In Providing High-Quality Laboratory Equipment And Extensive Technical Support Worldwide. Our Main Products Cover Five Core Areas: Chromatograph, Spectrometers, General-Purpose Instruments, Laboratory Furniture And Life Science Instruments. Chromatograph And Spectrometers, Such As High Performance Liquid Chromatograph (Hplc), Atomic Absorption Spectrometer (Aas), Inductively Coupled Plasma Emission Spectrometer (Icp-Oes), Etc., Are Unique In The Environmental Monitoring And Material Science Industries Due To Their Excellent Analytical Capabilities And Stability. General-Purpose Instruments, Including High-Precision Pipettes, Thermostats, Etc., Ensure That Every Experimental Operation Can Achieve The Perfect Combination Of Precision And Efficiency. Laboratory Furniture, Incorporating Modern Design Concepts And Safety Standards, Provides Researchers With An Aesthetically Pleasing As Well As Practical Working Environment. Life Science Instruments, Such As Pcr Instruments And Gel Imaging Analyzers, Help The Cutting-Edge Research In The Field Of Life Science.
Packaging & Shipping

We attach importance to packaging protection and carefully design and optimize the solution:
1, sturdy and durable: use high strength and wear-resistant materials, such as high-quality cardboard boxes, foam, etc., to protect the goods in all aspects.
2, Waterproof and moisture-proof: Designed with waterproof layer to protect the goods from moisture.
3, Shockproof and cushioning: the internal filling is precisely calculated to both cushion and save space, ensuring stable transportation. 4,Environmentally friendly material selection: use recyclable or degradable materials to reduce environmental impact.
FAQ

1, What is a freeze dryer and how does it work?
Freeze dryer is used to pre-freeze water-containing materials through freeze-drying technology, and then sublimate the water under vacuum to realize drying. This can preserve the food for a long time without losing its original flavor and nutrients
2, What are the models and specifications of freeze dryer?
We offer a wide range of models of freeze dryers, including home and commercial models, with different freeze drying area, power, capacity and size for different models
3, What is the freeze drying effect of the freeze dryer?
Freeze-dried food is loose and porous, spongy, and can be quickly dissolved and restored to its original state after adding water. Freeze-drying process can discharge more than 95-99% of the water, so that the food can be preserved for a long time without deterioration.
4, Is the operation of the freeze dryer complicated?
Our freeze dryer is designed to be user friendly, equipped with touch screen operation, easy to start, automatic drying process, easy to use.
5, What are the maintenance and cleaning requirements of the freeze dryer?
The lyophilizer requires regular cleaning and maintenance to ensure its long-term stable operation. After each use, clean the inner chamber to remove residue and ensure dryness. Vacuum pumps may require regular maintenance, including oil changes or cleaning of pump parts.
6, What are the safety features of the freeze dryer?
Our lyophilizers are designed to meet safety standards with features such as overheat protection, power failure protection and abnormal temperature alarms.
7, How to choose the right lyophilizer?
When choosing a freeze dryer, you should consider your storage needs, food type, frequency of use and budget.
8, How is the energy consumption of a freeze dryer?
The energy consumption of freeze dryer is relatively low and more energy efficient than traditional drying methods.
