Shr-2000A PVC High Speed Mixer Supper Mixer Turbo Mixer

Product Description

The PVC mixer is for mixing PVC powder, CACO3 and other addictives. This equipment is widely used in PVC pipe and profile production.

The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.

We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.

The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.

If you need the PVC mixer, please tell us the output you expected per hour, we will recommend the right model for you.

High quality, good price and reliable performace. Sunrise Machinery expects to be your plastic machines supplier.
The vacuum feeder is also available for the PVC mixer feeding. It could reduce dust, keep workshop clean and increase production efficiency.
Reference pictures:
SRL-Z500/1000 PVC high speed mixer unit
800L Hot Mixer/ High Speed Mixer

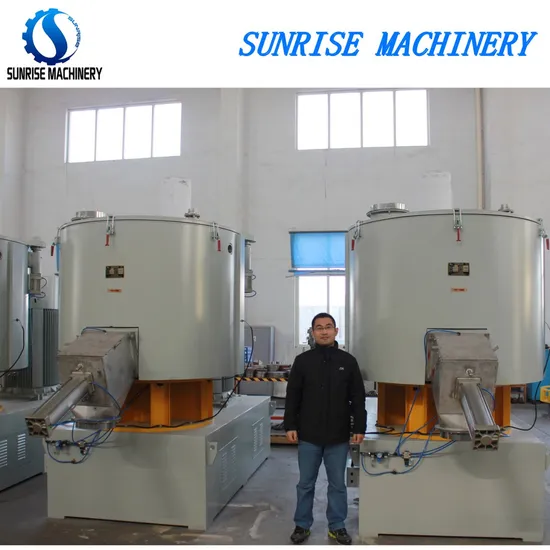

Customer Inspection:
Control Cabinet for PVC mixer with complete auto feeding and auto weighing system:
2000L High Speed Mixers
In customers' Factories:
Main Technical Parameter ( Vertical Cooler) for your reference:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	2500*2000*2200	4580*2240*2470	4800*2640*2480	5600*3000*3100	6230*4230*4480
Weight(kg)	2500	3600	4500	5800	8300

Larger Model Mixer Units with horizontal cooling mixer:

Model	Capacity (L)	Effective Capacity (L)	Blade Rotating Speed (RPM)	Motor Power (KW)	Capacity (kg/batch)
SRL-W500/2000	500/2000	375/1200	430/860-80	55/75-18.5	150-180
SRL-W800/2500	800/2500	560/1500	357/714-80	83/110-22	240-260
SRL-W1000/3500	1000/3500	700/2000	325/650-80	110/160-37	300-330
SRL-W1300/4500	1300/4500	910/2450	300/600-80	132/200-37	400-450

We also recommend PVC Additives Auto Weighing System for you:
The small additive auto weighing system - We developed this auto weighing system especially for PVC pipe and profile production to instead of manual weighing. It could auto weigh the additives in PVC pipe and profile formula besides the PVC and CACO3. The operator could only manually weigh PVC and CACO3, for other powder additives, this auto weighing system could weigh the quantity for one batch use automatically. This system could avoid the mistake of manual weighing and also keep the workshop clean.
This system could auto weighing 5-10 kinds of powder or granules additives.
FAQ:1.Are you manufacturer or trading company?
We are manufacturer for plastic pipe machines, PVC profile machines, PVC high speed mixer and auto weighing system and plastic recycling machines.
2.Why choose us?
We have 15 years experience for producing plastic machine. Experienced engineers and skilled workers with
good raw material to build the machines with heart and honesty to guarantee the performance of the machines.
3.Delivery time:
40-60 working days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the
balance (70% of total amount) should be paid before delivery by T/T or irrevocable
L/C(at sight).
5.After-sales service:
Free Spare Parts ;
Field installation, commissioning and training ;
Field maintenance and repair service ;
Video/Online technical support.
6.Warranty:
12 month
7. How to send an inquiry?
Plase tell us what kind of plastic pipe and diameters you want to produce, we will prepare proposal for you.
You just tell me what machine you want,let us do the rest work: 1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to
our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Installation and commissioning;
(2) Training your workers;
(3) Maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.
Company Information Zhangjiagang Sunrise Machinery Co., Ltd. is specialized in manufacturing kinds of plastic machines. Sunrise Machinery is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.
Our main products as below: 1. PVC / PE / PPR Pipe Production Line 2. PVC window & Door Profile / Panel Production Line 3. Plastic Sheet & Wide Board Production Line 4. Plastic Shredder, Crusher & Pulverizer 5. Waste Plastic Recycling Machines 6. Wood Plastic Profile Production Line 7. High Speed Mixer for PVC We have more than 10 years experince in this field. With CE standard and rich experince, Sunrise Machinery will be your reliable supplier for plastic machines. We warmly welcome friends from all over the world to visit our factory.
