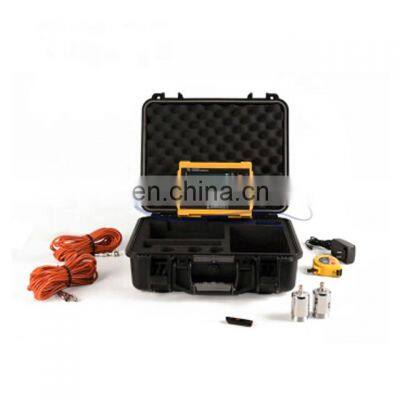

Taijia Ultrasonic pulse velocity detector for concrete ZBL-U5200 Multi-channel Ultrasonic pulse tester detector

Product Description

Product Description
Product DescriptionZBL-U5200 Multi-channel Ultrasonic detector civil engineering equipmentStructural concrete compressive strength, crack depth and defect detectionUltrasonic transmission method for rapid detection of pile foundation, continuous wall integrity;Geological prospecting, rock integrity, weathering evaluation testRock, concrete and other non- metallic materials mechanical properties testingUltrasonic-rebound combined method for testing compressive strength of concreteZBL-U5200 Multi-channel Ultrasonic detector civil engineering equipmentDetailed ImagesModelZBL-U5200 Multi-channel Ultrasonic detector civil engineering equipmentControl ModeBuilt-in AB industrial control boardMonitor5.7 inch, semi inverse semi penetration, TFTOperating ModeTouch screen & KeysData StorageBuilt in electronic hard disk(≥4GB)+U diskAcquisition ModeSingle channel manual point by point acquisitionNumber of Channels1 emitter+1 receiverTriggerSignalSampling Interval(μS)0.025~1638.4 optional multiple levelsAcoustic Time Accuracy(μS)0.025Acoustic Time range(μS)±1677700Dynarnic Range(dB)154Bandwidth(kHz)3~450Receiving Sensitivity(μV)≤10Gain Accuracy(dB)0.5Transmitting Voltage(V)65, 250,500,1000 optional four levelsWork time(h)>8Power supplyInternal:Built-in BatteryExternal: 220VAC/DCOperational EnvironmentTemperature(℃): -10~+50Humidity (RH) :<90%Analyse systemRelated ProductsZBL-R630A Rebar scanner ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting mediumZBL-R800 Multifuncational Rebar detector ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers, measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.TEM912 integrity voice report digital concrete rebound hammerTEM912 Series DIGITAL TEST HAMMER automatically Record, Save,Calculate and Processing data.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office atTEL:86-411-39685079WhatsApp/WeChat:+86 15541112235web:/ZBL-U5200 Multi-channel Ultrasonic detector civil engineering equipment
