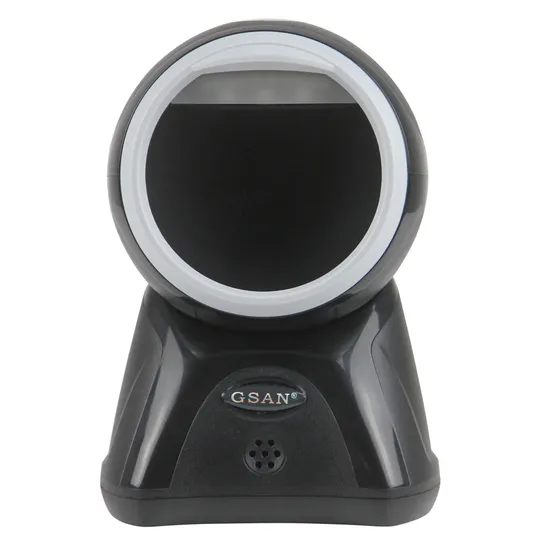

USB RS232 2D Qr Code Scan Barcode Scanner

Product Description

PRODUCT ATTRIBUTES

2D omnidirectional barcode scanner
Image Sensor	640 x 480 CMOS Red
Illumination	LED 650±10 nm
Read Rate	200 scans/sec
Resolution	>=50.102mm / 4 mils
Reading angle	Crimp: 0-360° ; Slope: +/-60°; Distortion degree:+/-60°
Bit Error Rate	1/800 million
Symbologies	2D PDF417, QR Code (Model 1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140) 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.
Reading Precision	≥ 5mil
Depth of Field	UPC-A (13mil) 0mm - 150mm Code 39 (20mil) 50mm - 340mm PDF 417 (6mil) 0mm - 80mm PDF 417 (15mil) 0mm - 200mm PDF 417 (10mil) 0mm - 130mm Data Matrix (24mil) 0mm - 210mm
Symbol Contrast	≥ 15%
Scan Angle Roll	360°; Pitch: ±50°; Skew: ±50°
Field of View	Horizontal 36°; Vertical 23° Mechanical
Interface	RS-232, USB (HID-KBW, USB COM Port Emulation, DATAPIPE, HID-POS)
Operating Voltage	5VDC (+/-10%)
Operating Current	<300mA
Sleep Current	40mA
Environment
Operating Temperature	-20ºC to +60ºC
Storage Temperature	-40ºC to +70ºC
Humidity	5% to 95% (non-condensing)
Ambient Light	0 ~ 100000 lux (natural light)
Dustproof and waterproof	IP52
ESD Protect	20KV
Color	White, Black
Material	ABS + EVA
Other
Language	Support multiple
Interface type	language RJ-45
Accessories	RS-232 Cable,USB Cable
