High Efficiency EPS/XPS Polystyrene Hot Melt Machine for Recycling

High Efficiency EPS/XPS Polystyrene Hot Melt Machine for Recycling

US$2,000.00 1 Set (MOQ)

Basic Info.

Model NO.
273
Service Life
<15 Years
Certification
CCC, CE, ISO
Voltage
380V
Structure
Vertical
Crushing Shafts
2 PCS
Conveyor
Optional
Feeding Materials
EPS/XPS/Epo/EPE etc
Temperature Control
Yes
Transport Package
Plywood Box
Specification
320/350
Trademark
Myaid
Origin
China
HS Code
8419899090
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
150.00cm * 180.00cm * 180.00cm
Package Gross Weight
500.000kg

Product Description

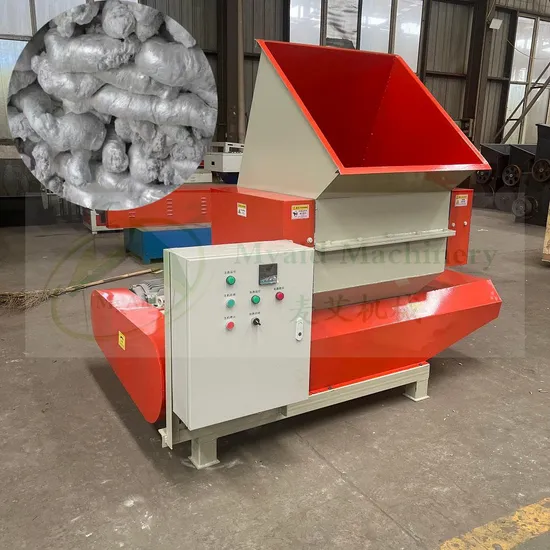

The EPS hot melt machine can efficiently crush and hot melt EPS/XPS/EPE/EPO and other foam materials. It operates without the need for a heater at the chamber's end, differentiating it from traditional melt machines.
Benefits of 'Friction Produces Heat' Technology 1) Requires almost no pre-heating time; you can feed materials immediately upon turning on the machine. Traditional machines with heaters require about 20 minutes to heat the chamber. 2) Produces almost no smoke, ensuring a cleaner operation. 3) Generates almost no odor, maintaining a pleasant working environment. 4) Option to include a heater for processing wet foam materials, as the heater can increase the chamber's internal temperature for better efficiency.
The Foam Heat Melt Equipment features twin crushing shafts in the hopper, enhancing its efficiency.
An optional conveyor is available for material feeding, adding convenience to the operation.
Equipped with temperature and frequency control settings located on the control box, ensuring precise operation.
The hot melt machine is built with a robust tooth reducer and a copper motor, guaranteeing long-lasting performance.
Machine Advantage
Q: Why is there no heater in the chamber?
A: The mechanical friction within the chamber generates sufficient heat to melt the crushed foam materials, distinguishing it from machines that rely on electric heaters.
Machine Parameter
Hopper Size Capacity Chamber Dia. Shredding Shafts Qty Motor Power Machine Size
800*800mm 200kg/h 245mm 2 pcs 18.5kg 1600*1500*800
