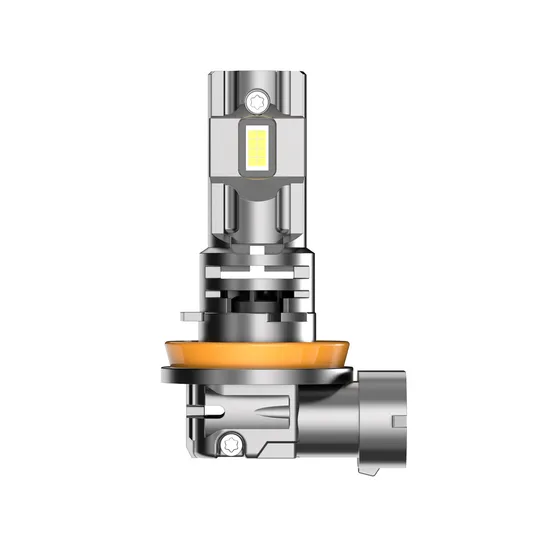

Global Compact H8 H11 28W 6000K Car LED Headlight

Product Description

Mini size 30000LM halogen global standard size H8 H11 Car LED Headlight bulb
Item No.: A67-H11
Key Features and selling points:
1. auto lighting grade 7035 high power LED chip group. high lumen and heat-resistant.
2.The 7035 module light source has a light surface size of 4.2x1.6mm, providing unprecedented color consistency, brightness, and light flux density.More compact beam Angle, higher luminous efficiency( up to 120lm/W).
3. super compact driver, small volume, automatic constant temperature.
4. USES 0.5mm single-sided copper plate design. The thickness of copper plate/lamp chip is closer to halogen bubble, and the light pattern is the same as halogen bulb.
5.ultra thin lamp cap design, better focusing effect, more standard shadow, suitable for applying in reflective cup and projector lens, besides high output illumination, perfect paving effect .
6.cpmpact and halogen bulb structure design , plug and play, easy to install.
7.Use quiet hydraulic fan, small size, high air volume, high wind pressure, long lifespan.
8. Voltage range 9-16V, best performance between 11.5V-13.5V, can pass 28V high voltage shock.
9.No interference, fully meet EMC basic requirements.
10. Dustproof and waterproof .
Technical parameters:
voltage: 9 ~ 16VDC/AC
Current: 2.2a /13.2V
Power: 28W/13.2V
Lumen: 2200lm for hot and 3000lm for cold
Color temperature: 6000-6500K
Operation temperature: -45ºC ~ +85ºC
lifespan: >10000 hours
Available models:
H7, H8 /H9/H11, 9005, 9006
